Fujitsu D3030 Tehnical Manual

Fujitsu D3030 Tehnical Manual

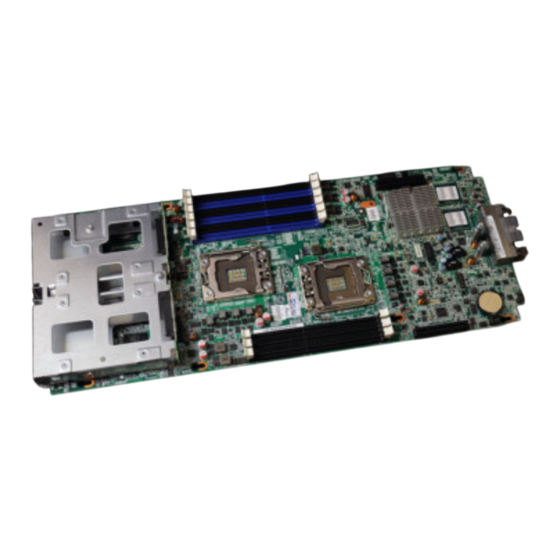

System board for bx920 s2
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Technical Manual - English
System Board D3030
for BX920 S2
Technical Manual
Edition March 2011

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu D3030

Summary of Contents for Fujitsu D3030

  • Page 1 Technical Manual - English System Board D3030 for BX920 S2 Technical Manual Edition March 2011...
  • Page 2 – The contents of this manual may be revised without prior notice. – Fujitsu assumes no liability for damages to third party copyrights or other rights arising from the use of any information in this manual. – No part of this manual may be reproduced in any form without the prior written permission of Fujitsu.
  • Page 3 It has not been designed or manufactured for uses which demand an extremely high level of safety and carry a direct and serious risk to life or body if such safety cannot be ensured. Technical Manual D3030 (BX920 S2)
  • Page 4 (hereafter, "high safety use"). Customers should not use this product for high safety use unless measures are in place for ensuring the level of safety demanded of such use. Please consult the sales staff of Fujitsu if intending to use this product for high safety use.
  • Page 5 Only for the Japanese market: Although described in this manual, some sections do not apply to the Japanese market. These options and routines include: – CSS (Customer Self Service) – Replacing the lithium battery Technical Manual D3030 (BX920 S2)
  • Page 6 Technical Manual D3030 (BX920 S2)

  • Page 7: Table Of Contents

    Settings with switches and jumpers ... . . 34 Replacing the lithium battery ....37 Technical Manual D3030 (BX920 S2)

  • Page 9: Introduction

    For additional driver information (if available), refer to the supplied DVDs (see Installation DVD of ServerView Suite - ServerView Software Products). You will find further information about the BIOS setup in the "D3030 BIOS Setup Utility for PRIMERGY BX920 S2 Server Blade" manual.

  • Page 11: Important Notes

    Information on which system expansions are approved for installation can be obtained from our customer service center or your sales outlet. The warranty expires if the device is damaged during the installation or replacement of system expansions. Technical Manual D3030 (BX920 S2)
  • Page 12 (this information doesn’t apply to the Japanese market). It is essential to observe the instructions in chapter "Replacing the lithium battery". Technical Manual D3030 (BX920 S2)
  • Page 13 Do not touch any connectors or conduction paths on an ESD. Place all the components on a pad which is free of electrostatic charge. For a detailed description of how to handle ESD components, see the relevant European or international standards (EN 61340-5-1, ANSI/ESD S20.20). Technical Manual D3030 (BX920 S2)

  • Page 14: Ce Certificate Of Conformity

    The board complies with the requirements of the EC directives 2004/108/EC regarding “Electromagnetic Compatibility” and 2006/95/EC “Low Voltage Directive”. This is indicated by the CE marking (CE = Communauté Européenne). Compliance was tested in a typical PRIMERGY configuration. Technical Manual D3030 (BX920 S2)

  • Page 15: Environmental Protection

    Environmental protection Environmental protection Environmentally-friendly product design and development This product has been designed in accordance with the Fujitsu standard for "environmentally friendly product design and development". This means that key factors such as durability, selection and labeling of materials, emissions, packaging, ease of dismantling and recycling have been taken into account.
  • Page 16 Details regarding the return and recycling of devices and consumables within Europe can also be found in the "Returning used devices" manual, via your local Fujitsu branch or from our recycling center in Paderborn: Fujitsu Technology Solutions Recycling Center D-33106 Paderborn Tel.

  • Page 17: Features

    – Hard disk controller LSI1064E SAS for 2 SAS hard disks – iRMC S2 (integrated Remote Management Controller) with integrated graphic controller – 2 MB Flash ROM – 32Mx16-667 DDR2 SRAM for iRMC S2 – ADT7462 temperature/system monitoring controller Technical Manual D3030 (BX920 S2)
  • Page 18 – HD LED support (SAS, SATA) – Inventory Identification Control – CSS functionality – Energy consumption control – Console redirection (text console) – Graphic console redirection (Advanced Video Redirection - AVR) – Provision of remote memory media (Remote Storage) Technical Manual D3030 (BX920 S2)
  • Page 19 – LAN – console redirection support – OEM logo – CPU, memory disable – Mirroring and Spare memory support Environmental protection Battery in holder for recycling Form factor, slot compatibility list – 491 x 200mm Technical Manual D3030 (BX920 S2)
  • Page 20 TPM or the system board is faulty you will not be able to access your data. – If a failure occurs, please inform your service about the TPM activation before it takes any action, and be prepared to provide them with your backup copies of the TPM content. Technical Manual D3030 (BX920 S2)

  • Page 21: Main Memory

    The channels A - C are controlled by CPU 1 and the channels D - F are controlled by CPU 2. x4 or x8 organized registered (RDIMMs) or unbuffered (UDIMMs) memory modules with ECC are supported. Technical Manual D3030 (BX920 S2)
  • Page 22 Depending on the mode of operation there are different population requirements for the main memory. For system relevant information please refer to the configurator of the server: https://sp.ts.fujitsu.com/dmsp/docs/cnfgbx920s2.pdf (for the EMEA market) http://primeserver.fujitsu.com/primergy/system.html (for the Japanese market) Technical Manual D3030 (BX920 S2)
  • Page 23 Always start by populating the main memory at CPU 1. If CPU 2 is installed, the following applies: – For CPU 2, there must be at least one DIMM module (DIMM 1D) installed. – The DIMM slots must be fitted in the following sequence: Technical Manual D3030 (BX920 S2)
  • Page 24 The DIMM sockets must be populated per channel in the following order: Channel 0 CPU 1: DIMM1A -> DIMM1B -> DIMM1C Channel 0 CPU 2: DIMM1D -> DIMM1E -> DIMM1F Channel 1 CPU 1: DIMM2A -> DIMM2B -> DIMM2C Technical Manual D3030 (BX920 S2)
  • Page 25 Channel 0 Slot 0 DIMM 1A Slot 1 DIMM 2B Channel 1 Slot 0 DIMM 1B Slot 1 DIMM 2C empty Channel 2 Slot 0 DIMM 1C empty Figure 4: Fitting in Mirrored Channel Mode Technical Manual D3030 (BX920 S2)
  • Page 26 If only CPU 1 is installed, the empty DIMM slots of CPU 1 must be fitted with dummy DIMM modules to ensure sufficient cooling of the system (this does not apply if two CPUs are installed). Technical Manual D3030 (BX920 S2)
  • Page 27 DIMM 2A Channel 0 Slot 0 DIMM 1A Slot 1 DIMM 2B Channel 1 Slot 0 DIMM 1B Slot 1 DIMM 2C Channel 2 Slot 0 DIMM 1C Figure 6: Fitting in Spare Channel Mode Technical Manual D3030 (BX920 S2)

  • Page 28: Memory Speed

    Mix of SR + DR * SR = single rank, DR = dual rank, QR = quad rank ** No memory modules released for this configuration *** Lost LV-mode memory will automatically switch to 1,5 V Vcc Technical Manual D3030 (BX920 S2)

  • Page 29: Screen Resolution

    Sensor monitoring The removal of, or a fault in, a temperature sensor is detected. Should this happen all fans monitored by this sensor run at maximum speed, to achieve the greatest possible protection of the hardware. Technical Manual D3030 (BX920 S2)
  • Page 30 LED and recorded in the System Event Log. The events could be retrieved in the BIOS Setup, in the Management Blade Web interface, via the iRMC S2's Web interface or via ServerView Operations Manager. Diagnostic LEDs For signalisation of failures LEDs are situated on the system board. Technical Manual D3030 (BX920 S2)

  • Page 31: Led Indicators

    DIMMs 1A - 1C, 2A - 2C yellow Faulty memory module CSS button none Activates the LEDs in case of an error CPU 2 yellow CPU faulty Mezzanine card 2 yellow Error on Mezzanine card 2 Technical Manual D3030 (BX920 S2)

  • Page 32: External Indicators

    LED indicators 3.5.2 External indicators 3 4 5 6 7 Figure 8: External ports of the system board D3030 Pos. Name Pos. Name lighting lighting Power on green Connection LED green Power off orange Fabric 1 Identification LED blue Connection LED...

  • Page 33: Interfaces, Connectors And Dip Switch

    Mezzanine Card 1 CPU 1 Mezzanine Card 2 HDD 2 Figure 9: Schematic view of the system board D3030 Slot 1 for Mezzanine card 1 Memory slots1A - 1C, 2A - 2C Memory slots 1D - 1F Slot 2 for Mezzanine card 2...

  • Page 34: Settings With Switches And Jumpers

    BIOS setup (the Password on boot field is set to enabled in the SECURITY menu). The password prompt is skipped. The user-defined BIOS passwords are deleted. The password prompt is active (default setting). Technical Manual D3030 (BX920 S2)
  • Page 35 The system starts from the "BIOS flashing medium" (ODD, USB stick) and reprograms the system BIOS on the board. The system starts with the system BIOS of the system board (default setting). Switch 4 - No function This switch currently has no function. Technical Manual D3030 (BX920 S2)
  • Page 36 Settings with switches and jumpers Technical Manual D3030 (BX920 S2)

  • Page 37: Replacing The Lithium Battery

    Ê Press the locking spring into direction of the arrow (1), so that the lithium battery jumps out of its socket. Ê Remove the battery (2). Ê Insert a new lithium battery of the same type into the socket (3) and (4). Technical Manual D3030 (BX920 S2)
