HP Compaq dx2810 Quickspecs

Business pc
Hide thumbs Also See for Compaq dx2810:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Reference Manual
QuickSpecs
Overview

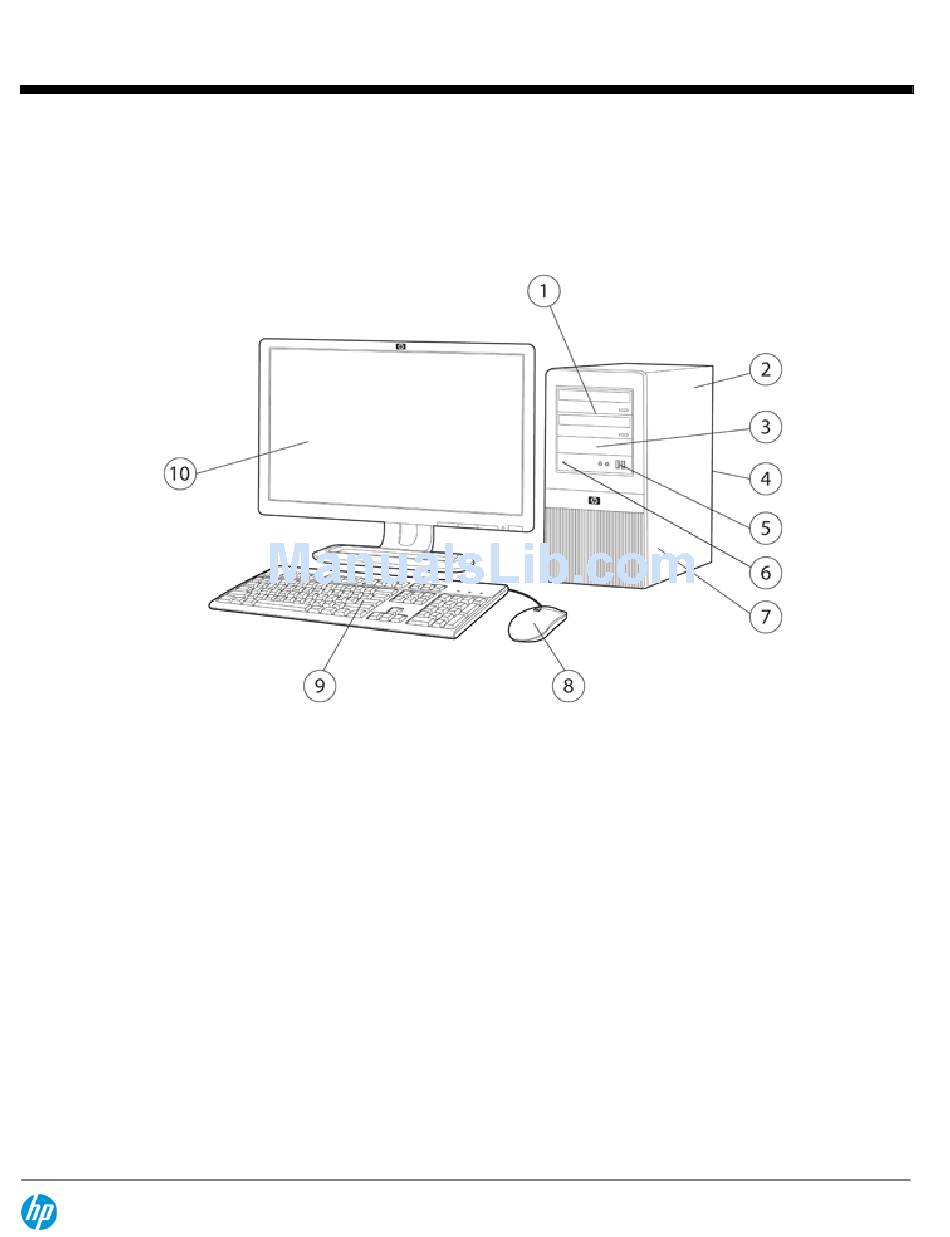

1. (2) external 5.25" drive bays for optional optical drives; (2)
internal 3.5" hard drive drive bays
2. 250W PFC power supply as default; 300W PFC or 300W 85%
Efficiency*** power supply as option
3. (1) external 3.5" drive bay for optional media reader or
diskette drive
4. Rear IO: (6) USB 2.0 ports, (2) PS/2, (1) RJ-45, (1) VGA, (1)
Parallel, (1) COM, (1) audio in – (1) audio out – (1) MIC
5. Front I/O: (2) USB 2.0 ports, (1) MIC – (1) audio out
(Headphone)
* Model dx2818 (available only in China) differentiate from dx2810 on the front bezel: there is Chinese characters on the top-right of
center band
**Reset function will be set for China/Hong Kong/Korea; Recovery function will be set for the rest of APJ
*** 85% Efficiency power supply is used on dx2810 special edition PC only
Microtower*
DA - 13215 Worldwide — Version 7 — September 25, 2009
HP Compaq dx2810 Business PC
HP recommends
Windows Vista
6. Recovery/reset
button**
7. (2) full-height PCI 2.3 slot, (1) PCIe x1 slots,
(1) PCIe x16 slot
8. PS/2 Scroll Mouse
9. HP Standard Keyboard
10. Monitor (sold separately)
®
Business
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP Compaq dx2810

Summary of Contents for HP Compaq dx2810

  • Page 1 QuickSpecs HP Compaq dx2810 Business PC Overview HP recommends ® Windows Vista Business Microtower* 1. (2) external 5.25” drive bays for optional optical drives; (2) 6. Recovery/reset button** internal 3.5” hard drive drive bays 2. 250W PFC power supply as default; 300W PFC or 300W 85% 7.
  • Page 2 QuickSpecs HP Compaq dx2810 Business PC Overview Small Form Factor 1. Monitor (sold separately) 6. PS/2 Scroll Mouse 2. Rear IO: (6) USB 2.0 ports, (2) PS/2, (1) RJ-45, (1) VGA, (1) 7. HP Standard Keyboard Parallel, (1) COM, (1) audio in – (1) audio out – (1) MIC 3.
  • Page 3 250W PFC HV immunity power as Standard configuration ( 300W PFC HV immunity power supply or 300W 85% Efficiency power supply can be selected as option on Microtower) Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply. DA - 13215 Worldwide — Version 7 — September 25, 2009...

  • Page 4: Standard Features And Configurable Components

    QuickSpecs HP Compaq dx2810 Business PC Standard Features and Configurable Components Processor and Speed Intel Celeron Processors One of the following Intel Celeron 430 Processor (1.80 GHz, 512 KB L2 cache, 800 MHz FSB) Intel Celeron 440 Processor (2.00 GHz, 512 KB L2 cache, 800 MHz FSB) Intel Celeron 450 Processor (2.2-GHz, 512-KB L2 cache, 800-MHz FSB)
  • Page 5 QuickSpecs HP Compaq dx2810 Business PC Standard Features and Configurable Components Operating Systems and Genuine Windows Vista Business Genuine Windows Vista Business Application Software Genuine Windows Vista Home Basic* (availability varies by Genuine Windows Vista Business downgrade to Windows XP Professional custom installed*†...
  • Page 6 QuickSpecs HP Compaq dx2810 Business PC Standard Features and Configurable Components System Memory 512 MB DDR2 Synch DRAM PC2-6400 (800 MHz) Non-ECC (1 x 512 MB) 1 GB DDR2 Synch DRAM PC2-6400 (800 MHz) Non-ECC (2 x 512 MB) 1 GB DDR2 Synch DRAM PC2-6400 (800 MHz) Non-ECC (1 x 1 GB)
  • Page 7 NVIDIA GeForce 205 512MB ATX PCIe x16 (for MT only) NVIDIA GeForce 315 1GB ATX PCIex16 (for MT only) HP ADD2 SDVO PCIe DVI-D Adapter HP DisplayPort To DVI-D Adapter (for HD3470 and HD3650) HP DisplayPort To VGA Adapter (for HD3470 and HD3650) Miscellaneous...

  • Page 8: System Details

    QuickSpecs HP Compaq dx2810 Business PC System Details Base Unit MT: Micro ATX Microtower chassis, including power supply and front bezel; five (5) drive bays and four expansion slots (full height) SFF: Micro ATX Small Form Factor chassis, including power supply and front bezel; three (3) drive...
  • Page 9 QuickSpecs HP Compaq dx2810 Business PC System Details Interfaces (Legacy) One (1) PS/2 keyboard port One (1) PS/2 mouse port One (1) analog VGA video port One (1) Parallel port One (1) serial port One (1) line in; one (1) line out; one (1) mic in One (1) RJ45 network port Weight &...
  • Page 10 QuickSpecs HP Compaq dx2810 Business PC System Details Chassis Front Panel Power button Power On LED HDD Activity LED Reset/recovery button (MT only) Cooling Solutions Power Supply Fan (variable speed) Active heatsink (variable speed) Supported Chassis fan (variable speed) (MT only)
  • Page 11 QuickSpecs HP Compaq dx2810 Business PC System Details Maximum Altitude (MT) Operating 10,000 ft (3048 m) (unpressurized) Non-operating 30,000 ft (9144 m) Temperature Range (SFF) Operating 50° to 95° F (10° to 35° C) Non-operating -22° to 140° F (-30° to 60° C)
  • Page 12 QuickSpecs HP Compaq dx2810 Business PC System Details On Board I/O Interfaces 1 x ATX power connector 1 x +12V power connector 1 x Floppy connector 1 x LPC connector 1 x header (1 – 1x2) to support hood sensor...
  • Page 13 QuickSpecs HP Compaq dx2810 Business PC System Details Power supply Microtower Small Form Factor Model 250W/300W PFC+HV 300W 85% Eff 250W PFC+HV Standard Efficiency 300W standard efficiency active PFC Energy Efficient 300W 85% efficient active PFC Operating Voltage Range 90 to 132 VAC, or...
  • Page 14 QuickSpecs HP Compaq dx2810 Business PC System Details configuration. Levels presented do not account for non-HP/Compaq installed hardware. Ambient Air Temperature Operating MT: Operating 41° to 95°F (5 to 35°C) (Test 0 to 104°F (40°C)); SFF: 50° to 95°F (10° to 35°C) at sea level with an altitude de-rating of 1.0°C per every 1000 ft (300...
  • Page 15 2 On-site service may be provided pursuant to a service contract between HP and an authorized HP third- party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.

  • Page 16: After-Market Options

    HP 80 GB SATA 3.0-Gb/s Hard Drive PY276AA HP 64 GB SATA Solid State Drive VG679AA Removable Storage Diskette Drive Devices HP 1.44 MB USB Diskette Drive – External DC141B 22-in-1 Media Reader FX273AA HP 22-in-1 Media Card Reader-BLK AR941AA Input Devices...

  • Page 17: Optical Drives

    * 1GB of system memory required. Graphics cards use part of the total system memory to enhance graphics performance. Optical Drives HP SATA DVD-ROM Drive AH047AA HP SATA SuperMulti LightScribe DVD Writer Drive GF343AA HP 16X SATA Blu-ray Writer BLK AR482AA Security...

  • Page 18: Standard Memory

    Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board. HP recommends dual-channel symmetric configurations for maximum performance. For best performance, add the same amount of total memory to each channel and do not mix speeds. For dual-channel symmetric performance, the total amount of memory in each channel must be equal.
  • Page 19 QuickSpecs HP Compaq dx2810 Business PC Storage HP Compaq dx2810 Microtower Business PC Maximum Quantity Position Supported Controller Supported Drive Support Diskette Drives Media Reader Internal USB 2.0 port DVD-ROM Drives 1, 2 SATA SuperMulti LightScribe DVD Writer Drives 1, 2...
  • Page 20 QuickSpecs HP Compaq dx2810 Business PC Storage HP Compaq dx2810 Small Form Factor Business PC Maximum Quantity Position Supported Controller Supported Drive Support Diskette Drives Media Reader Internal USB 2.0 port DVD-ROM Drives SATA SuperMulti LightScribe DVD Writer Drives SATA...

  • Page 21: Technical Specifications

    QuickSpecs HP Compaq dx2810 Business PC Technical Specifications Integrated Realtek Type Integrated ALC662-GR Audio HD Audio compatible codec Sampling (DAC and ADC) Supports 44.1/48/96 KHz Audio Jacks Mic-In Line-In Line-Out / Headphone Out Power Support Digital: 3.3V Analog: 5V Other Meets Mircrosoft Windows Vista (WLP 3.08) Premium requirements...
  • Page 22 QuickSpecs HP Compaq dx2810 Business PC Technical Specifications Intel Gigabit CT Desktop Connector RJ-45 Controller Intel WG82574L Gigabit Ethernet Controller Memory Integrated Dual 48K configurable transmit receive FIFO Buffers Data rates supported 10/100/1000 Mbps Compliance IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant, 802.3x...
  • Page 23 QuickSpecs HP Compaq dx2810 Business PC Technical Specifications Fax Speeds 14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s Fax Mode Capabilities ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2 Error Correction and Data V.44, 42bis, V.42 and MNP2-5 Compression Power Management PCI Bus Power Management Interface Specification (PCI-PM) Revision 1.2,...
  • Page 24 QuickSpecs HP Compaq dx2810 Business PC Technical Specifications HP ADD2 SDVO DVI-D NOTE: Please see the QuickSpecs for Technical Specifications and additional information: Adapter http://h18000.www1.hp.com/products/quickspecs/12008_div/12008_div.html (Worldwide) DMS-59 to Dual DVI Cable NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12845_div/12845_div.html...
  • Page 25 Microsoft DirectX® 10, OpenGL® 1.5 (OpenGL® 2.0 available in a driver update) Resolutions Supported NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP. Maximum Refresh Rate (Hz) Resolution...

  • Page 26: Specification

    Immunity Characteristics – Limits and Methods of Measurement. ATI Radeon HD 3450 (256MB SH) PCIe Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. Maximum Refresh Rate (Hz)
  • Page 27 Display max resolution 1900 x 1200 digital, 2048 x 1536 analog ATI Radeon HD 4550 DH PCIe x16 Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP. Resolution...
  • Page 28 Linux x86 and x86_64 distributions using XFree86 or X.Org**. ** Linux drivers are available from ATI's website and may be available in a Linux distribution. Refer to the Open Source and Linux from HP website: http://www.hp.com/wwsolutions/linux/products/clients/ for support information.
  • Page 29 Technical Specifications NVIDIA GeForce 205 (512MB) PCIe x16 Graphics Controller display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. Analog Resolution Maximum Refresh Rate...
  • Page 30 Technical Specifications NVIDIA GeForce 315 (1GB) PCIe x16 Graphics Controller display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. Analog Resolution Maximum Refresh Rate...
  • Page 31 ATI HD4350 (512 MB) PCIe x16 Graphics Controller display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP All standard VGA text/graphics modes are supported in addition to table below.
  • Page 32 QuickSpecs HP Compaq dx2810 Business PC Technical Specifications HP USB Smart Card NOTE: Please see the QuickSpecs for Technical Specifications and additional information: Keyboard http://h18000.www1.hp.com/products/quickspecs/12346_na/12346_na.html (Worldwide) HP PS/2 or USB Standard NOTE: Please see the QuickSpecs for Technical Specifications and additional information: Keyboard http://h18000.www1.hp.com/products/quickspecs/11880_div/11880_div.html...
  • Page 33 QuickSpecs HP Compaq dx2810 Business PC Technical Specifications HP 1.44-MB Diskette Drive Size 3.5 in (8.89 cm) LED Indicators (front Green panel) Read/Write Capacity per 1.44 MB/720 KB Diskette (high/low) Drive Height One-third Drive Rotation 300 rpm Transfer Rate (high/low)

  • Page 34: Small Form Factor

    QuickSpecs HP Compaq dx2810 Business PC Technical Specifications Length (5.25”) 171.6 cm Width (5.25”) 148.9 cm Height (5.25”) 42.7 cm Environmental Operational Test Parameters/Conditions - Power applied, unit operating on system ±5% Environmental Extremes nominal supply voltage. 10°C 10% R.H. ? 24 hours 10°C 90% R.H.

  • Page 35: Additional Information

    This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC. information: This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. This product is in compliance with California Proposition 65 (State of California;...
  • Page 36 QuickSpecs HP Compaq dx2810 Business PC Technical Specifications External: Polyethylene low density 17.02 g Wood 13360 g Internal: EPE-Expanded Polyethylene 10.94 g The EPE foam packaging material is made from 0% recycled content. The corrugated paper packaging materials contains at least 0% recycled content.
  • Page 37 This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC. information: This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. This product is in compliance with California Proposition 65 (State of California;...
  • Page 38 This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. Hewlett-Packard...
  • Page 39 Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
