Summary of Contents for HP Compaq dx2390

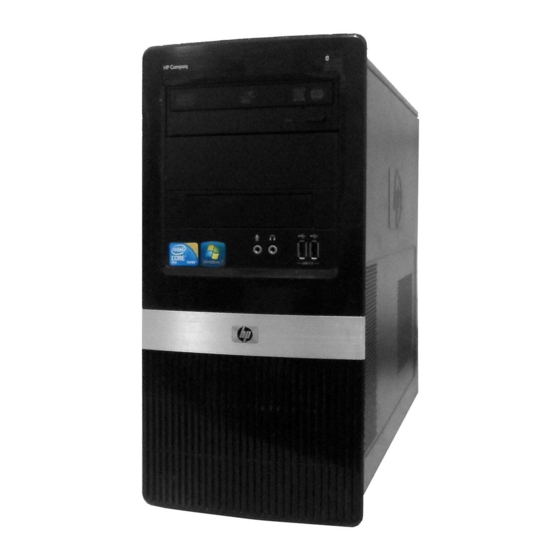

Page 1 QuickSpecs HP Compaq dx2390 Microtower Business PC Overview HP recommends ® Windows Vista Business Microtower 1. (2) external 5.25” drive bays for optional optical drives 6. (1) full-height PCI 2.3 slot, (2) PCIe x1 slots, (1) PCIe x16 slot 2. (1) external 3.5” drive bay for optional media reader or 7.
Page 2 Choice of hard drives and optical drives DDR2 SDRAM system memory Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply. * RAID mode not supported DA - 12990 Worldwide — Version 11 — July 28, 2009...
Page 3: Standard Features And Configurable Components
QuickSpecs HP Compaq dx2390 Microtower Business PC Standard Features and Configurable Components Processor and Speed Intel Celeron Processors One of the following Intel Celeron 420 Processor (1.60-GHz, 512-KB L2 cache, 800-MHz FSB) Intel Celeron 430 Processor (1.80-GHz, 512-KB L2 cache, 800-MHz FSB) Intel Celeron 440 Processor (2.00-GHz, 512-KB L2 cache, 800-MHz FSB)
Page 4 QuickSpecs HP Compaq dx2390 Microtower Business PC Standard Features and Configurable Components Operating Systems and Genuine Windows Vista Business Application Software Genuine Windows Vista Home Premium (availability varies by Genuine Windows Vista Home Basic region) RedFlag Linux (China Only) Free DOS * Certain Windows Vista product features require advanced or additional hardware.
Page 5 One or more of the 1.44-MB Diskette Drive following (see Storage Media Reader section below) HP 16-in-1 Media Reader and additional USB 2.0 port HP 22-in-1 Media Card Reader HP 22-in-1 Media Card Reader with 1394 port Optical Drives (Serial ATA) SATA DVD-ROM Drive...
Page 6 NVIDIA GeForce 8400 GS (256MB) Single Head PCIe x16 – optional* NVIDIA GeForce GT130 768MB PCIe x16 HP ADD2 SDVO PCIe x16 DVI-D Adapter – optional ATI Radeon HD 2400XT (256MB DH) PCIe x16 – optional ATI Radeon 3470 256MB Single Head graphics adapter (PCIe x16)
Page 7: System Details
QuickSpecs HP Compaq dx2390 Microtower Business PC System Details Base Unit Micro ATX microtower chassis, including power supply and front bezel Five (5) drive bays and four expansion slots Microsoft operating system CD – optional Active type heatsink 92 x 92 x 25 mm chassis fan System board with Intel G31 Express chipset, Intel I/O Controller Hub 7 (ICH7), Realtek RTL8101E 10/100 Ethernet controller, Intel GMA graphics, and Realtek audio, (1) full-height PCI 2.3 slot, (2) PCI...
Page 8 QuickSpecs HP Compaq dx2390 Microtower Business PC System Details Weight & Dimensions Chassis Dimensions 15.16 x 7.28 x 16.38 in. with bezel (385 x 185 x 416 mm) (H x W x D) 14.88 x 6.50 x 16.10 in. without bezel...
Page 9 QuickSpecs HP Compaq dx2390 Microtower Business PC System Details Unit Environment and General Unit Operating Guidelines Operating Conditions Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is operated within the specified operating range.
Page 10 QuickSpecs HP Compaq dx2390 Microtower Business PC System Details Rear Side I/O Ports 1 x PS/2 keyboard port 1 x PS/2 mouse port 4 x USB 2.0 ports 1 x RJ-45 10/100 port 1 x D-sub 15 pin analog VGA port...
Page 11 Performance of system, options, and ancillary equipment will vary depending on the system Specs configuration. Levels presented do not account for non-HP/Compaq installed hardware. Ambient Air Temperature Operating 50° to 95°F (10° to 35°C) at sea level with an altitude de-rating of 1.0°C per every 1000 ft (300 m) above sea level to a maximum of 8000 ft (2500 m), no direct sustained sunlight.
Page 12: Fixed Disk
NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.
Page 13: After-Market Options
Intel PRO/1000 PT Gigabit PCIe Controller (full height) EH352AA Wireless LAN HP Wireless A+G PCI Card (North America only) EA118AA HP Wireless A+G PCI Card (WW except North America) PZ928AA HP Wireless 802.11 b/g/n PCIe Card FH971AA Modems Agere 2006 PCI High-Speed 56K International SoftModem...
Page 14 PF997AA#XXX HP v7650 17” (16.0” vis) Flat-face CRT Monitor PF996AA#XXX TFTs HP L1506 15” TFT Flat Panel Monitor – Analog only PX848AA#XXX HP L1706 17” TFT Flat Panel Monitor – Analog only PX849AA#XXX HP L1740 17” TFT Flat Panel Display – Analog/Digital PL766AA#XXX HP L1755 17”...
Page 15 QuickSpecs HP Compaq dx2390 Microtower Business PC After-Market Options HP Flat Panel Speaker Bar EE418AA HP CRT Monitor Multimedia Base PM552AA *This is only representative, not an exhaustive list. DA - 12990 Worldwide — Version 11 — July 28, 2009...
Page 16: Standard Memory
Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board. HP recommends dual-channel symmetric configurations for maximum performance. For best performance, add the same amount of total memory to each channel and do not mix speeds. For dual-channel symmetric performance, the total amount of memory in each channel must be equal.
Page 17 QuickSpecs HP Compaq dx2390 Microtower Business PC Storage HP Compaq dx2390 Microtower Business PC Maximum Quantity Supported Position Supported Controller Drive Support Diskette Drives Media Reader Internal USB 2.0 port DVD-ROM Drives 1, 2 SATA CD-RW/Combo Drives 1, 2 SATA...
Page 18: Technical Specifications - Audio
QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Audio Integrated Realtek Type Integrated ALC662 Audio HD Audio compatible 5:1 channel codec Sampling Supports 48/96 KHz Audio Jacks Mic-In Line-In Line-Out / Headphone Out Power Support Digital: 3.3V Analog: 5V...
Page 19: Technical Specifications - Communications
QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Communications Integrated Realtek Controller 8101E-GR 8101E-GR 10/100 Fast Memory Ethernet Controller Data rates supported 2.5GHz data rate with X1 link width Compliance IEEE802.3, IEEE 802.3u, IEEE 802.3ab Bus architecture PCIexpress 1.1...
Page 20 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Communications Environmental Operating temperature 32° to 131°F (0° to 55° C) Operating humidity 85% at 131° F (55° C) Dimensions 4.75 x 2.25 x 0.8 in (12.1 x 5.7 x 2.0 cm)
Page 21 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Communications HP Wireless A+G PCI Dimensions 4.99 x 2.54 x 0.71 in (126.8 x 64.4 x 18.0 mm) Weight 0.268 lb (65 g) Controller Atheros AR5414X chipset PCI Spec 2.2...
Page 22 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Communications Frequency band 2.400 - 2.497 GHz Operating temperature 14° to 149°F, operating (-10° to 65°C, operating) Storage temperature -40° to 176°F, non-operating (-40° to 80°C, non-operating) Humidity 10-90% operating...
Page 23 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Communications 2 Mbps (802.11 b) 1.4 Mbps 5.5 Mbps (802.11 b) 3.5 Mbps 11 Mbps (802.11 b) 5.9 Mbps 12 Mbps (802.11 g) 6 Mbps 18 Mbps (802.11 g) 9 Mbps 24 Mbps (802.11 g)
Page 24 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Communications Agere 56K PCI Modem Data Transmission 56,000 Kbps maximum downstream data NOTE: 56 Kbps technology refers to download speeds only and requires compatible modems at server sites. Other conditions may limit modem speed.
Page 25 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Communications LSI PCIe x1 56K Data Transmission Technology speeds: 56,000 Kbps maximum downstream data, controllerless International SoftModem NOTE: 56 Kbps technology refers to download speeds only and requires compatible modems at server sites. Other conditions may limit modem speed.
Page 26: Technical Specifications - Graphics
QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Graphics Integrated Graphics 3D/2D Controller Microsoft DirectX® 9 based with support for Pixel Shader 2.0, 4:1 anisotropic filtering, Gaussian texture filtering, shadow maps, volumetric textures, Media Accelerator double-sided stencil buffers, and 4 pixel pipes.
Page 27: Specification
NVIDIA GeForce 8400 GS (256 MB SH) PCIe x16 Graphics Controller display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. DA - 12990 Worldwide — Version 11 — July 28, 2009...
Page 28: Nvidia Geforce
NVIDIA GeForce GT130 768MB PCIe x16 Graphics Controller display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP DA - 12990 Worldwide — Version 11 — July 28, 2009...
Page 29 For Windows Vista system requirements, visit: http://www.windowsvista.com/systemrequirements. ** Linux drivers are available from NVIDIA's website and may be available in a Linux distribution. Refer to the Open Source and Linux from HP website (http://www.hp.com/wwsolutions/linux/products/clients/) for support information. Maximum power Option kit contents...
Page 30 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Graphics HP ADD2 SDVO PCIe x16 Models HP ADD2 SDVO DVI-D Out Adapter DVI-D Adapter Form Factor Low-profile card DVI-D Connector Digital connection only Dual Head Support Yes, when used with the integrated VGA connector...
Page 31 NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. Using the HP DisplayPort to VGA Adapter may require an update to the graphics driver installed on your system. To install the most up-to-date graphics driver go to: www.hp.com.
Page 32: Operating Systems Support
Immunity Characteristics – Limits and Methods of Measurement. ATI Radeon HD 2400XT (256MB DH) PCIe Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP Maximum Refresh Rate (Hz)
Page 33 ATI Radeon HD 3470 (256MB SH) PCIe x16 Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP DA - 12990 Worldwide — Version 11 — July 28, 2009...
Page 34 ATI Radeon HD 4550 DH PCIe x16 Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP. DA - 12990 Worldwide — Version 11 — July 28, 2009...
Page 35 Linux x86 and x86_64 distributions using XFree86 or X.Org**. ** Linux drivers are available from ATI's website and may be available in a Linux distribution. Refer to the Open Source and Linux from HP website: http://www.hp.com/wwsolutions/linux/products/clients/ for support information.
Page 36 Display max resolution 2560 x 1600 digital, 2048 x 1536 analog ATI Radeon HD 4650 1 GB PCIe x16 Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP Resolution...
Page 37 Linux x86 and x86_64 distributions using XFree86 or X.Org** ** Linux drivers are available from ATI's website and may be available in a Linux distribution. Refer to the Open Source and Linux from HP website: http://www.hp.com/wwsolutions/linux/products/clients/ for support information. Option kit contents...
Page 38: Technical Specifications - Input Devices
QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Input Devices HP PS/2 or USB Standard Physical Keys 104, 105, 106, 107, 109 layout (depending upon country) Keyboard characteristics Dimensions (L x W x H) 18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm) Weight 2 lb (0.9 kg) minimum...
Page 39 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Input Devices Weight 2 lb (0.9 kg) minimum Electrical Operating voltage + 5VDC ± 5% Power consumption 100-mA maximum (with four LEDs ON) System interface USB Type A plug connector...
Page 40 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Input Devices Power USB Port Short circuit detection (protects smart card and reader) Power supply compliant with ISO7816 and EMV (5V, 60 mA) Supports 3-V and 5-V cards Power consumption...
Page 41 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Input Devices IEC-61000-4-2 criteria B, Contact discharge: +/- 4kV, Air discharge: +/- 8kV EMI-RFI FCC Class B PC98 PC 99 Compliant Mechanical Resolution 800dpi Tracking Speed 25 cm/sec Acceleration 0.5mm Switch Actuation 0.6N (60gf)
Page 42 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Input Devices Switch actuation 61 g nominal peak force Switch life 3,000,000 operations (using Hasco modified tester) Switch type Low force micro-switches Tracking mechanism life 155 mi (250 km) at average speed of 10 in/s Cable length 6 ft (1.8 m)
Page 43: Technical Specifications - Hard Drives
QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Hard Drives Serial ATA Hard Drives 80 GB Capacity 80,026,361,856 bytes (7200 rpm) Height 1 in (2.54 cm) Width Media diameter: 3.5 in (8.9 cm) Physical size: 4 in (10.2 cm) Interface Serial ATA (3.0 Gb/s)
Page 44 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Hard Drives Seek Time (typical reads, Single Track 2.0 ms includes controller Average 11 ms overhead, including Full-Stroke 21 ms settling) Rotational Speed 7,200 rpm Logical Blocks 488,397,168 Operating Temperature 41°...
Page 45: Technical Specifications - Optical Storage
QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Optical Storage SATA DVD-ROM Drive Height 5.25-inch, half-height, tray-load Orientation Either horizontal or vertical Interface type SATA/ATAPI Disc capacity Single layer: Up to 4.7 GB (6 times capacity of CD-ROM) Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
Page 46 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Optical Storage Environmental Temperature 41° to 122° F (5° to 50° C) (all conditions Relative Humidity 10% to 90% non-condensing) Maximum Wet Bulb 86° F (30° C) Temperature SATA CD-RW/DVD-ROM Height 5.25-inch, half-height, tray-load...
Page 47 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Optical Storage HP SATA SuperMulti Height 5.25-inch, half-height, tray-load LightScribe DVD Writer Orientation Either horizontal or vertical Drive Interface type SATA/ATAPI Disc capacity 8.5 GB DL or 4.7 GB standard Dimensions (W x H x D) 5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
Page 48: Technical Specifications - Removable Storage
QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Removable Storage 1.44-MB Diskette Drive Size 3.5 in (8.89 cm) LED Indicators Green (front panel) Read/Write Capacity per 1.44 MB/720 KB Diskette (high/low) Drive Height One-third Drive Rotation 300 rpm...
Page 49 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Removable Storage Length (5.25”) 171.6 cm Width (5.25”) 148.9 cm Height (5.25”) 42.7 cm Environmental Operational Test Parameters/Conditions – Power applied, unit operating on system ±5% nominal supply voltage. environmental extremes 10°C 10% R.H.
Page 50 QuickSpecs HP Compaq dx2390 Microtower Business PC Technical Specifications - Removable Storage Secure Digital High Capacity (SDHC) miniSD miniSD High Capacity Micro SD (T-Flash) Micro SD HC Memory Stick Memory Stick Select Memory Stick Duo (MS Duo) Memory Stick PRO (MS PRO)
Page 51: Technical Specifications - Environmental Data
Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
