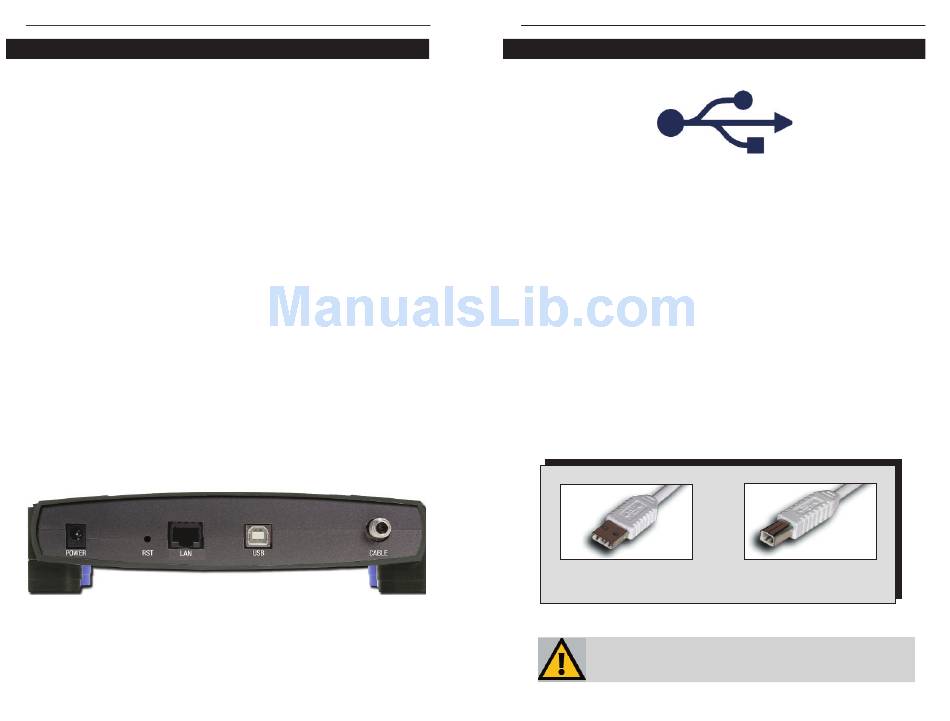

The Back Panel

The Backe Modem with USB and Ethernet Connection's
Rear Panel
Power Port The Power port is where the included power adapter is connect-
ed to the Cable Modem.
Reset
Button Briefly pressing and holding in the Reset button allows you to
clear the Cable Modem's connections and resets the Cable
Modem to the factory defaults. Continued or repeated pressing
of this button is not recommended.
LAN Port This port allows you to connect your Cable Modem to your PC
or other Ethernet network device using a CAT 5 (or better) UTP
network cable.
USB Port This port allows you to connect your Cable Modem to your PC
using the included USB cable. Not all computers are able to use
USB connections. For more information concerning USB and
compatibility with your computer, see the next section.
Cable Port The cable from your ISP connects here. It is a round coaxial
cable, exactly like the one that connects to the back of your
cable box or television.
4
Instant Broadband
Figure 2-1
Series
TM EtherFast

The USB Icon

The USB icon shown below marks a USB port on a PC or device.
To use this USB device, you must have Windows 98, Me, 2000, or XP installed
on your PC. If you do not have one of these operating systems, you cannot use
the USB port.
Also, this device requires that a USB port is installed and enabled on your PC.
Some PCs have a disabled USB port. If your port doesn't seem to be working,
there may be motherboard jumpers or a BIOS menu option that will enable the
USB port. See your PC's user guide for details.
Some motherboards have USB interfaces, but no ports. You should be able to
install your own USB port and attach it to your PC's motherboard using hard-
ware purchased at most computer stores.
Your Cable Modem with USB and Ethernet Connection comes with a USB
cable that has two different types of connectors. Type A, the master connector,
is shaped like a rectangle and plugs into your PC's USB port. Type B, the slave
connector, resembles a square and connects to the USB port on the back panel
of your Cable Modem.
Cable Modem with USB and Ethernet Connection
®
Figure 2-2
USB Type A
Figure 2-3
There is no USB Support on PCs running
Windows 95 or Windows NT.
USB Type B
5
