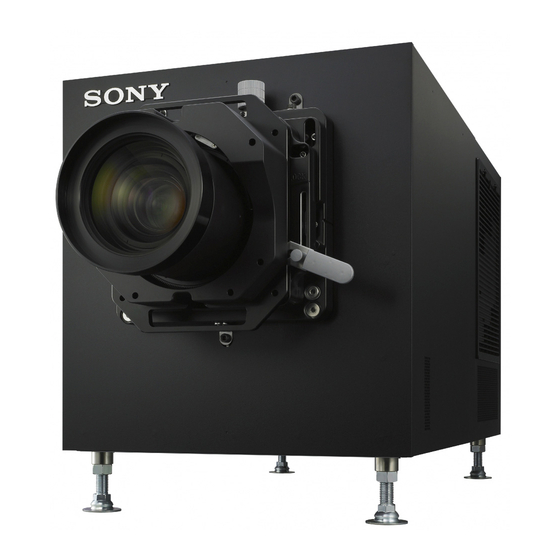

Sony SRX-R515P Brochure & Specs

Next-generation
4K digital cinema
projector
User-friendly design for low cost
of ownership
SRX-R515P is a high quality
4K digital cinema projection
system designed for use in
small or medium sized screen
auditorium.
SRX-R515P is fully DCI compliant
and boasts design features that
make it more cost effective and
simple to use. These include a
lower cost light source system
that allows easy and safe lamp
replacement, a re-usable air
filter, a single 15-inch GUI control
panel and iPad and Android
tablet support* for remote
operations.
* This function is planned to be available from
Spring 2013.
SRX-R515P
True 4K projection ideal for independent cinemas
SRX-R515P offers true 4K quality from the integrated media block through the lens to
the cinema screen and features an improved SXRD optical engine, higher contrast
ratio, 15,000 lumens brightness, easy-on-the-eye Sony 3D and High Frame Rate
(HFR) capabilities of 48 and 60 frames per second. The system also features
high-speed content ingest/transfer and high capacity storage.
Superior picture quality
Ultra high quality picture for small and
medium sized screens.
True 4K
True 4K with 4K SXRD panel and F2.5 large
aperture lens made of ELD (Extra Low
Dispersion) glass to create a super fine
pitch 4K image.
3D
Easy-on-the-eye 3D with no flashing. Also,
the SRX-R515P will support 3D High Frame
Rate (HFR) content as standard.
High contrast ratio
High contrast image of 8,000:1 (average)
with the new 4K optical engine, achieved
by reducing leaked light.
Light output
15,000 lumens brightness.
