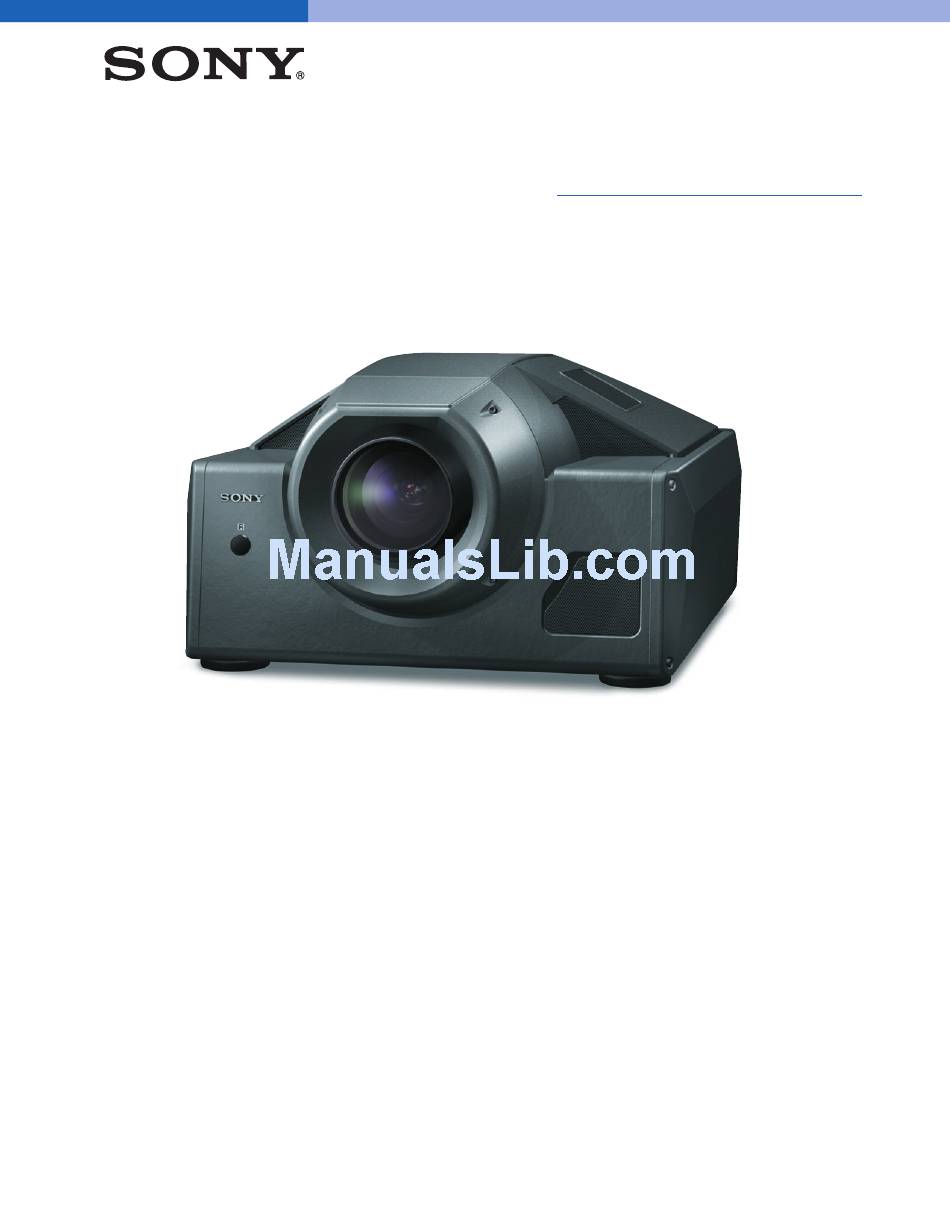

Sony SRX-R110 Specifications

The SRX-R110 and SRX-R105 are
Sony's all-new large-venue
projectors, tailored with stunning
features and picture performance
to address the quality-critical
demands in Digital Cinema
applications and other
large-venue systems. Combining
the highest-resolution "4K"
SXRD imaging device with
contrast ratio of 2000:1, the
SRX-R110 and SRX-R105 achieve
high-quality images with rich and
precise color tonal reproduction.
In addition to this high
performance, these projectors
are designed to be small and
lightweight enabling ease of
installation in almost any type of
facility. Equally important, their
HD-SDI input – which provides
an encrypted connection when –
combined with an optional
"media-block"* , enables digital
1
contents to be securely projected
onto screens with absolutely no
compromise in the "4K" quality.
The SRX-R110 is a 10,000 ANSI
lumen* model for larger theater
2
screens, while the SRX-R105 is an
affordable 5,000 ANSI lumen
model addressing smaller
installations. The 4K-SXRD
imaging panel used in both
projectors can be driven at
single-mode, dual-mode, and
quad-mode projection. In quad
Sony Large Venue Projector
SRX-R110/R105
mode, four screens of full HD
images (1920 x 1080 pixels) can
be projected from the 4K-SXRD
panel simultaneously. In single
mode, the industry's long-desired
4096 x 2160-pixel images are no
longer imagined – they are a true
reality.
1 The optional media-block is a peripheral
*
that incorporates the functions specified by
the DCI (Digital Cinema Initiative) for secure
projection of contents and co-operability
with SMS (Screen Management System) etc.
2 ANSI lumens is a measuring method of the
*
American National Standards Institute IT
7.228. Since there is no uniform method of
measuring brightness, specifications will
vary among manufacturers.
Preliminary
