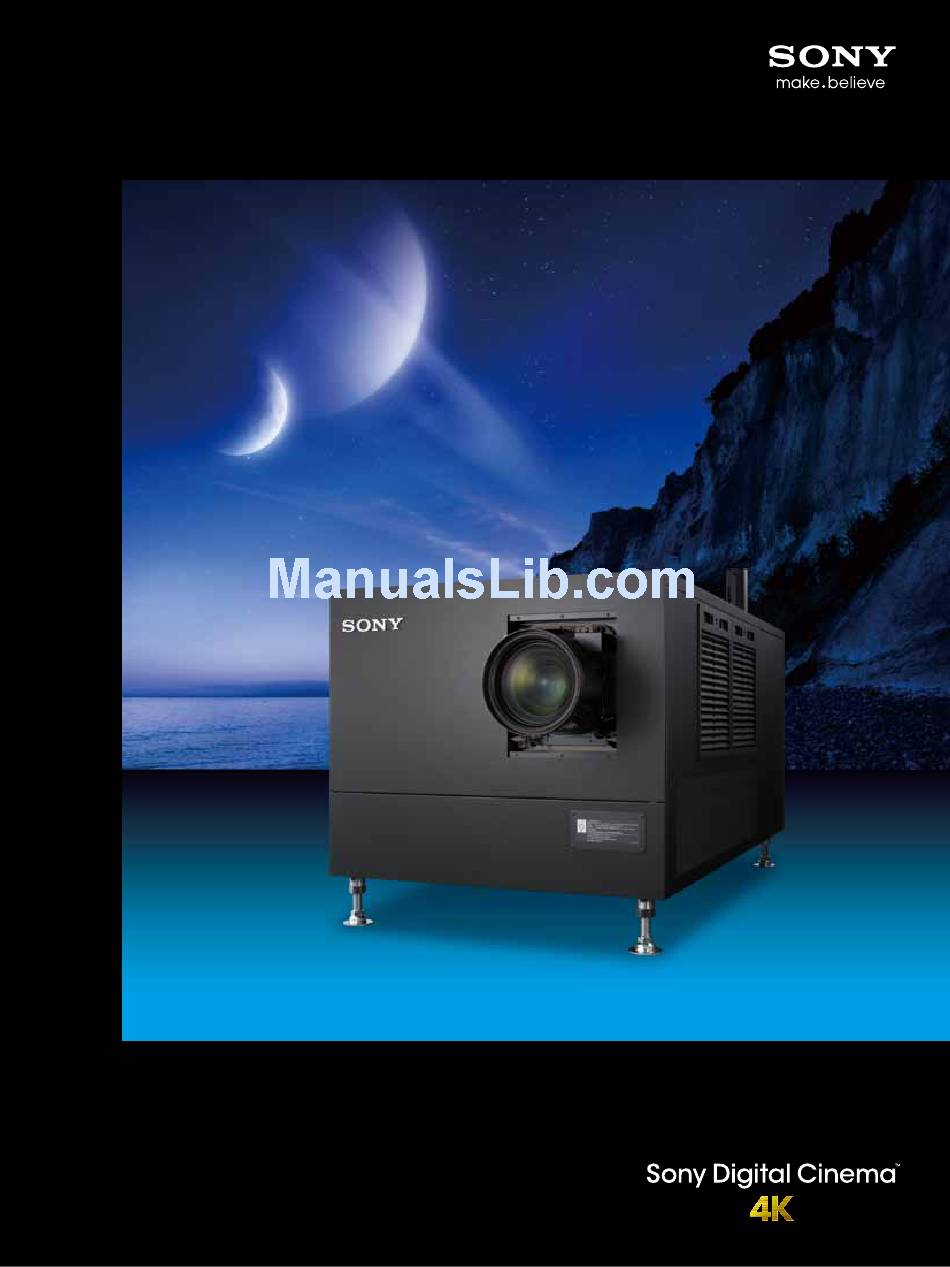

- Page 1 SRX-R320 4K Digital Cinema Projector LMT-300 STM-100 Media Block Theater Management System...
- Page 2 The Standard of 4K Digital Cinema - Sony’s Integrated Projection System...
- Page 3 In March 2011, Sony announced that this system was the world’s first to successfully complete the full range of compliance tests for the DCI specification - the Digital Cinema Initiatives, LLC (known as DCI) is a joint venture of six major Hollywood studios*.
- Page 4 System Advantages/Features 4K Resolution Historically, the movie theater experience has always exceeded that achieved by home entertainment systems. The advent of HDTV (1920 horizontal pixels) and technical improvements in home theater equipment have stimulated the movie industry to think further ahead into the future. Meanwhile, the Hollywood movie studios have jointly agreed on standardizing 4K (4096 horizontal pixels) and 2K (2048 horizontal pixels) as the next-generation digital...
- Page 5 The SRX-R320 offers a high contrast ratio of more than Three optional zoom lenses are available for the SRX-R320. 2000:1 through the use of Sony’s unique SXRD device. The All lenses utilize very large image circles that contribute to SXRD device itself achieves a contrast ratio of over 4000:1.
-
Page 6: Operational Features
* The LKRL-A001 supports 2D projection lenses. For detailed information, please contact your nearest Sony office. ** To attach the LKRL-A001 to the projector, lens support stays are required. For detailed information, please contact your nearest Sony office. SRX-R320 with 3D projection lens unit attached Anamorphic Lens... -
Page 7: Lens Shift Function
Anamorphic Mode Function Keystone Masking The SRX-R320 allows squeezed images (16:9 or 1.896:1) to be To compensate for keystone distortion, which typically changed to 2.39:1 un-squeezed images. This can be done occurs when the projector is not installed directly in front of electrically without an anamorphic lens. - Page 8 * For detailed information on availability of the SRX Controller software, please and control its operation – the fan works when the projector contact your nearest Sony office. is in Lamp ON mode or Standby ON mode. ** System requirements for the SRX Controller software: Microsoft Windows ®...
- Page 9 SXRD Technologies In addition to its extreme resolution and high contrast, crystal’ systems, a thin cell gap could not be achieved. Sony the SXRD device used in the SRX-R320 projector has overcome this difficulty through the use of innovative has the following remarkable...
- Page 10 Distributors HDD, etc Curtain Controller Firewall * For detailed information on availability of the SMS-C software, please contact your nearest Sony office. Large Storage Capacity and Audio Reliable RAID System The LMT-300 transcodes audio DCP files into AES/EBU digital...
- Page 11 * To support the SMS controller functions, the SMS controller software must be installed on the PC. For detailed information on its availability, please contact your nearest Sony office. Screen Management Functions Operated Setup and Maintenance Functions by an SMS...
- Page 12 Theater Management System – STM-100 Menu windows of STM-100 Creation of SPL Functions: The STM-100 Theater Management System (TMS) is one of the key digital cinema software applications that can • SPL creation and management provide efficient centralized management of theater • Composition Play List (CPL) grouping functions to combine operations – including schedule management, content multiple compositions (content programs such as trailers) data management, and status monitoring –...
- Page 13 Dimensions SRX-R320 222 (8 3/4) 590 (23 1/4)* 241 (9 1/2) (for LKRL-Z214) 545 (21 1/2)** * Barycentric position of SRX-R320 with LKRL-Z214 ** Barycentric position of SRX-R320 with LKRL-Z214 and LMT-300 ø198 (7 7/8) 154 (6 1/8) Area necessary for cooling of LMT-300 19 (3/4)* 9 (3/8)**...
- Page 14 LVDS cables (2), CSS cable (1), Ethernet cable (1), Operating instructions (1) * To support the HD-SDI/Dual-link HD-SDI or DC-SDI/Dual-link DC-SDI interfaces, the LKRI-003 Dual- link HD/DC-SDI Input Board is required. For information on using this board, please contact your nearest Sony office.
-
Page 15: Front Panel
10-pin connector (x1) (for power supply) Power Supply Redundant function* Available by adding an optional second power supply unit to the LMT-300 * For detailed information, please contact your nearest Sony office. Rear panel Table of Available Lenses LKRL-Z211 LKRL-Z214... -
Page 16: Optional Accessories
The values for mass and dimension are approximate. Sony is a registered trademark of Sony Corporation. “Sony Digital Cinema”, “Sony Digital Cinema” 4K logo, “Sony Digital Cinema” 3D logo, “SXRD”, and “SXRD” logo are trademarks of Sony Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation.
