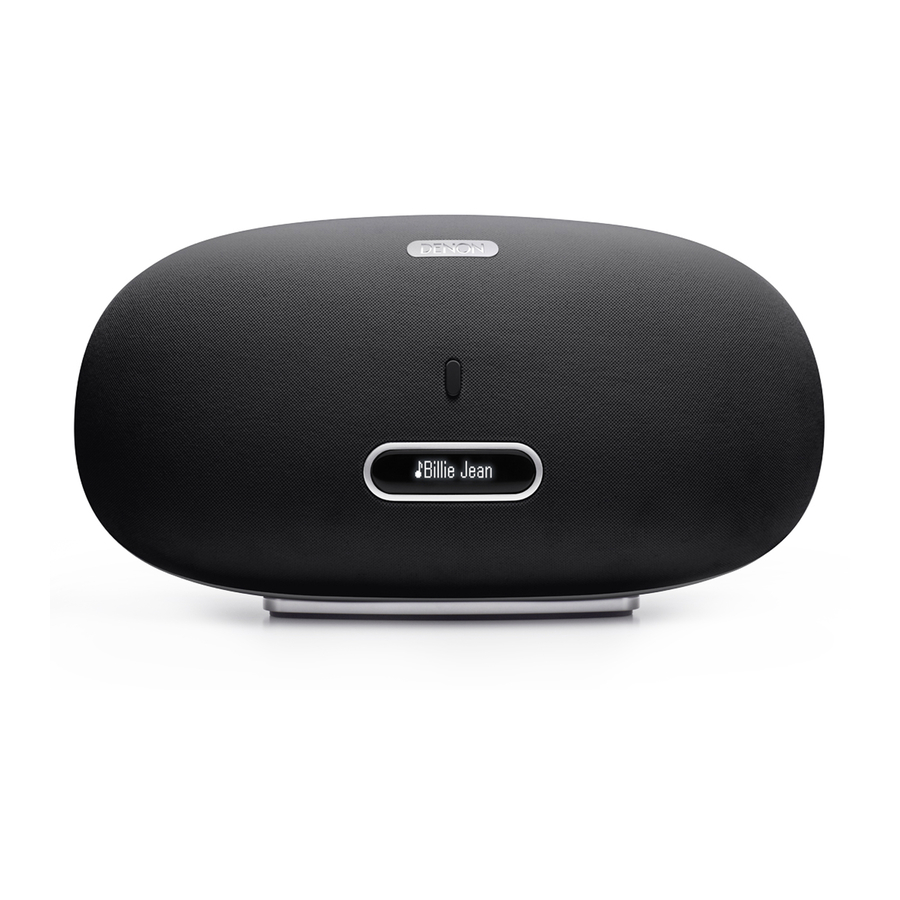

SPEAKER DOCK
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Denon DSD-500

Summary of Contents for Denon DSD-500

  • Page 1 DSD-500 SPEAKER DOCK Owner’s Manual...

  • Page 2: Safety Precautions

    Do not use this apparatus near water. Clean only with dry cloth. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE DENON EUROPE Do not block any ventilation openings. COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. Division of D&M Germany GmbH Install in accordance with the manufacturer’s instructions.
  • Page 3 n CAUTIONS ON INSTALLATION NOTES ON USE WARNINGS • Avoid high temperatures. Allow for sufficient heat dispersion when installed in a rack. • Handle the power cord carefully. Hold the plug when unplugging the cord. • Keep the unit free from moisture, water, and dust. • Unplug the power cord when not using the unit for long periods of time.

  • Page 4: Table Of Contents

    Getting started Thank you for purchasing this DENON product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading them, be sure to keep them for future reference. Contents Accessories Operations ··············································································12 Getting started ··············································································1...

  • Page 5: Features

    Features Cautions on handling • Before turning the power on Equipped with a Dock that supports iPhone ® , Check once again that all connections are correct and that there are iPod touch ® and iPad ® (vpage 6) no problems with the connection cables. This unit employs a slide type Dock that comes out when you push its front.

  • Page 6: Remote Operation

    Inserting the batteries q Remove the rear lid in the w Load the two batteries properly Cocoon App is DENON’s proprietary application developed for iPhone, direction of the arrow and as indicated by the marks in the iPod touch and iPad.

  • Page 7: Preparations

    Preparations Preparations Here, we explain the connections methods for this unit. F Connections vpage 5 vpage 5 vpage 5 vpage 5 PORTABLE PLAYER vpage 6 F Connecting to a home network (LAN) vpage 7 vpage 9 vpage 10...

  • Page 8: Connections

    Layer-3” standards. Portable (AC 230 V, 50/60 Hz) • DENON does not guarantee that all USB memory devices will Audio operate or receive power. When using a portable USB connection type HDD of the kind to which an AC adapter can be connected to NOTE supply power, use the AC adapter.
  • Page 9 • Depending on the type of iOS device and the software version, some functions may not operate. • iPod touch • Note that DENON will accept no responsibility whatsoever for any problems arising with the data on an iOS device when using this unit in conjunction with the iOS device.

  • Page 10: Connecting To A Home Network (Lan)

    • The types of routers that can be used depend on the ISP. Contact an retailer. ISP or a computer shop for details. • The normal shielded-type Ethernet cable is recommended. If a • DENON assumes responsibility whatsoever flat-type cable or unshielded-type cable is used, other devices communication errors or troubles resulting from customer’s network...

  • Page 11: Network Connections And Settings

    Network connections and settings There are two types of network connections available – wired and wireless. Select either of them according to your router functions and operating environment. Using a router equipped with the wireless LAN Using a router that is not equipped with the Using PC to make network settings of this unit function wireless LAN function...
  • Page 12 By just pressing the WPS button on your router and this unit, the iPod touch or iPad wireless LAN connection settings are made. Use the DENON application “Cocoon App” to make the wireless LAN connection settings. Internet • Before turning this unit on, make sure that an Ethernet cable is not connected to this unit.
  • Page 13 Network connections and settings Wired LAN Enter the encryption key. iPod 21:12 q Enter the encryption key of your You may need to set the network connection manually, depending on NETLINK BACK JOIN router that is connected to your the provider you use. To set the connection manually, use the setting Access Point iPod, iPhone or iPad.
  • Page 14 Network connections and settings Using PC to make network settings of this unit • Enter the name in the “Friendly Name” box and click “Set” to change the friendly name. A friendly name is the name of this unit that is presented to the network. n When this unit is connected to your PC through • In “ADVANCE SETTING”, you can manually make settings such as wireless LAN...

  • Page 15: Operations

    Operations Operations Here, we explain functions and operations that let you make better use of this unit. F Playback vpage 13 vpage 14 vpage 15 vpage 17 vpage 18 vpage 19 vpage 20 PORTABLE PLAYER F How to make detailed settings vpage 22...

  • Page 16: Playback

    Playback This section provides how to play back music with this unit. Preparations Operations possible during This unit can play back music from the following devices (media). Setting the current time (Auto Adjust) (24- playback • iPhone, iPod and iPad When connected to this unit (vpage 14) Hour Display) When using AirPlay (vpage 15) Selecting the input source...

  • Page 17: Various Memory Functions

    NOTE some functions may not operate. • Note that DENON will accept no responsibility whatsoever for any This function is activated around 30 seconds after the power is turned problems arising with the data on an iOS device when using this unit Various memory functions in conjunction with the iOS device.

  • Page 18: Airplay Function

    AirPlay function Enjoy music from your iTunes library with high quality sound anywhere NOTE Selecting multiple speakers (devices) in your home. Use the Apple Remote app z for iPhone, iPod touch and iPad to control When the AirPlay function is used, this unit plays back at the volume It is possible to play iTunes songs on your home’s AirPlay compatible level set on iPhone, iPod touch, iPad, or iTunes.
  • Page 19 AirPlay function n Perform iTunes playback operations with the remote control unit of this unit • Source input will be switched to “AirPlay” when AirPlay playback With this unit’s remote control unit, you can perform iTunes song is started. play, pause, and auto search (cue) operations. • You can stop AirPlay playback by choosing other input source.

  • Page 20: Listening To Internet Radio

    Listening to internet radio Internet radio refers to radio broadcasts distributed over the Internet. Listening to preset Internet radio stations Internet radio stations from around the world can be received. • There are many Internet radio stations on the Internet, and the Prepare for playback.

  • Page 21: Playing A Usb Memory Device

    Playing a USB memory device A USB memory device can be connected to the USB port of this unit to play music files stored on the USB GCompatible formatsH memory device. Sampling frequency Bit rate Extension WMA (Windows Media Audio) 32/44.1/48 kHz 48 –...

  • Page 22: Playing A Portable Player

    • This unit is compatible with MP3 files conforming to “MPEG-1 Audio n USB memory device operation buttons Layer-3” standards. • DENON does not guarantee that all USB memory devices will Operation buttons Function operate or receive power. When using a portable USB connection +, –...

  • Page 23: Playing Back Files Stored On Pc Or Nas With Cocoon App (Music Server)

    Playing back files stored on PC or NAS with Cocoon App (Music Server) This unit can play back music files and playlists (m3u, wpl) stored on Settings for playing back with Windows Media Settings for playing back with Windows Media a PC, Digital Media Server (DMS) and on Network Attached Storage Player 12 (Windows 7) Player 11...
  • Page 24 Playing back files stored on PC or NAS with Cocoon App (Music Server) Important information About playback • The network audio playback function of this unit connects to the server using technologies shown below. • Windows Media Player Network Sharing Service • File types that this unit can play back and specifications are shown below. When you start playback on PC, NAS, or DMS, the input source for this unit automatically switches to “Music Server”, and audio is output GSupported file typesH...

  • Page 25: How To Make Detailed Settings

    How to make detailed settings Menu map Menu operation Setting items Detailed items Description Page Language NOTE Sets the language for display the menu. Language Use buttons on this unit for menu operations. Buttons on the remote control do not work. Clock Auto Adjust(On) Automatically performs the clock setting from the time information on...

  • Page 26: Setting The Language (Language)

    Setting the language (Language) Setting the clock (Clock) Setting the Time Zone Sets the language for display the menu. You can automatically adjust the clock of this unit using the Internet. • The factory default setting is “English”. (Time Zone) Press + and – at the same time. To use this function, the unit must be connected to the Internet.
  • Page 27 Setting the clock (Clock) Setting the Summer Time Setting the current time Setting the current time (Manual Adjust) (Summer Time) (Auto Adjust Now) (24-Hour Display) Use the following procedure to set Summer time if the Summer time When the unit is connected to the Internet, the current time is set When the unit is not connected to the Internet, set the current time system is used in your country.

  • Page 28: Setting The Volume Limit (Max Vol Level)

    Setting the volume limit Setting the network (Network Info.) (Max Vol Level) Checking the network information WPS Settings (PIN code method) Make a setting for maximum volume. Press + and – at the same time. Use this procedure to configure the wireless LAN settings. • The factory default setting is “50”.

  • Page 29: Firmware Update

    Press + or – to select “Firmware Update”, then press “No”, then press 13. the network environment. Press + or – to select “Check for Update” or “Start”, See the DENON website for details about updates. then press 13. Check for firmware updates. Check for Update –...

  • Page 30: Informations

    Informations Informations Here, we list various information related to this unit. Please refer to this information as needed. F Part names and functions vpage 28 F Other information vpage 30 F Troubleshooting vpage 33 F Specifications vpage 36 F Index vpage 37...

  • Page 31: Part Names And Functions

    Part names and functions Front panel Rear panel See the page indicated in parentheses ( ). For buttons not explained here, see the page indicated in parentheses ( ). AC IN NETWORK WIRELESS LAN LOUDNESS ON / STANDBY 5V 0.5A AUX IN NETLINK Security slot...

  • Page 32: Remote Control Unit

    Remote control unit For buttons not explained here, see the page indicated in parentheses ( ). Skip buttons (8, 9) ··························· (14) Play/Pause button (13) ······················ (14, 19) Input source select button ( ) ················· (13) Power operation button (X) ······················ (13) Volume control buttons (+, –...

  • Page 33: Other Information

    Other information Trademark information n Trademark information (vpage 30) This product uses the following technologies (Random order): n Explanation of terms (vpage 31) “Made for iPod”, “Made for iPhone” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone or iPad, respectively, and has been certified by the developer to meet Apple performance standards.

  • Page 34: Explanation Of Terms

    Explanation of terms FLAC IEEE 802.11b Network Names AES (Advanced Encryption Standard) FLAC stands for Free lossless Audio Codec, and is a This is one wireless LAN standard set by the 802 (SSID: Security Set Identifier) This is a next generation standard encryption lossless free audio file format.
  • Page 35 Explanation of terms Windows Media DRM WPA (Wi-Fi Protected Access) This is a copyright protection technology developed This is a security standard established by the Wi-Fi vTuner by Microsoft. Alliance. In addition to the conventional SSID This is a free online content server for Internet Content providers are using the digital rights (network name) and WEP key (network key), it also radio.

  • Page 36: Troubleshooting

    – white approximately • Please re-install this unit in a place having good ventilation. This is not a malfunction. DENON does not guarantee that all USB every 2 seconds. memory devices will operate or receive power. • USB memory device is connected via USB hub. Connect the USB –...
  • Page 37 Symptom Cause/Solution Page Symptom Cause/Solution Page Internet radio cannot • Ethernet cable is not properly connected or network is 9, 10 For some radio • Station is congested or not currently broadcasting. Wait a while – be played. disconnected. Check the connection status. stations, “Radio before trying again.

  • Page 38: Resetting The Microprocessor

    GRemote control unitH Resetting the microprocessor Symptom Cause/Solution Page When the microprocessor is reset, all the settings are reset to their default values. The set cannot be • Batteries are worn out. Replace with new batteries. operated with the • Operate the remote control unit within a distance of about Press + and –...

  • Page 39: Specifications

    Specifications n Audio section • Amplifiers: 4 x 25 W ClassD • Drivers: 2 x 40 mm Tweeter 2 x 100 mm Woofer n Clock • Clock method Within 1 – 2 minutes per month n Wireless LAN Network type Conforming to IEEE 802.11b Conforming to IEEE 802.11g (Conforming to Wi-Fi ®...
  • Page 40 Index How to eject/store the Dock ································ 6 Rear panel ·························································· 28 How to reset ······················································ 35 Remote control unit ··········································· 29 Accessories ·························································· 1 Inserting the batteries········································ 3 Adjusting the master volume ····························· 13 Resetting the microprocessor ···························· 35 Adjusting the tone ··············································...
  • Page 41 Dimensions Unit : mm 451.0 170.0 27.0 Weight : 5.4 kg...
  • Page 42 D&M Holdings Inc. 3520 10118 00AD...
