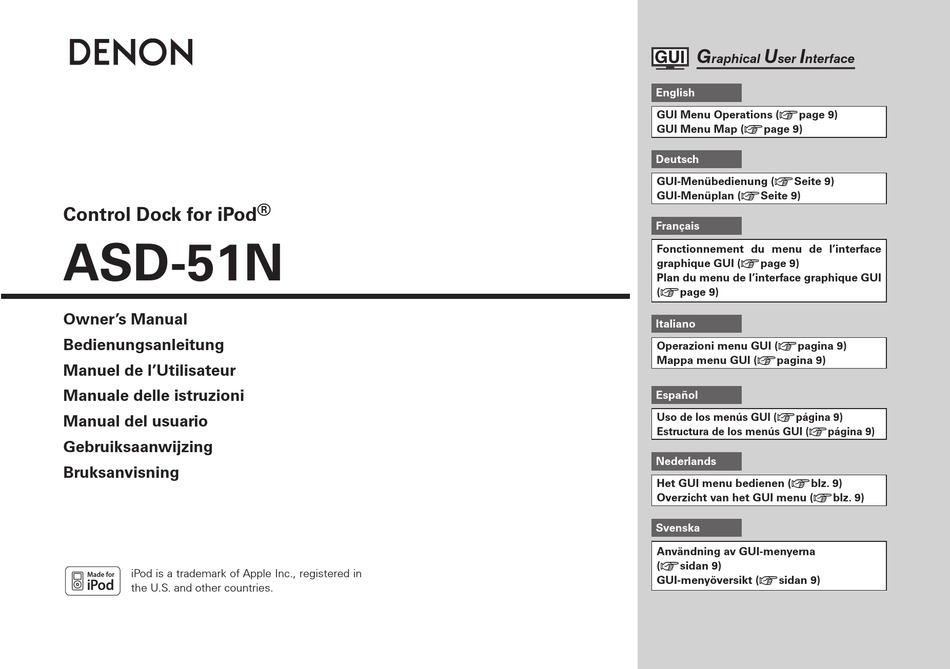

  • Page 1 ® Control Dock for iPod ASD-51N Owner’s Manual Bedienungsanleitung Manuel de l’Utilisateur Manuale delle istruzioni Manual del usuario Gebruiksaanwijzing Bruksanvisning iPod is a trademark of Apple Inc., registered in the U.S. and other countries. ENGLISH raphical ser nterface English GUI Menu Operations (vpage 9)
  • Page 2 ENGLISH DEUTSCH FRANCAIS IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 3 This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modification not expressly approved by DENON may void your authority, granted by the FCC, to use the product. 3. NOTE This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4 Härmed intygas helt på eget ansvar att denna produkt, vilken detta intyg avser, uppfyller följande standarder: EN60950, EN55022, EN55024, EN61000-3-2 och EN61000-3-3. Enligt stadgarna i direktiv 2006/95/EC och 2004/108/EC. SVENSKA DENON EUROPE Division of D&M Germany GmbH An der Landwehr 19, Nettetal, D-41334 Germany...
  • Page 5 SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANCAIS DEUTSCH ENGLISH ENGLISH CAUTION: • The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc. • No naked flame sources, such as lighted candles, should be placed on the unit. •...
  • Page 6 ENGLISH DEUTSCH FRANCAIS NOTE ON USE • Avoid high temperatures. Allow for sufficient heat dispersion when installed in a rack. • Handle the power cord carefully. Hold the plug when unplugging the cord. • Keep the unit free from moisture, water, and dust. •...
  • Page 7 SVENSKA A NOTE ABOUT RECYCLING: This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with the local recycling regulations. When discarding the unit, comply with local rules or regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with the local regulations concerning battery disposal.

  • Page 8: Table Of Contents

    Operating a Wireless LAN-Compatible Mobile Terminal to Play Music ··········25 Playing the Same Network Audio on Different Devices Connected in a Network (Party Mode Function) ·····································································27 Operating the ASD-51N with a Browser (Web Control Function) ···················28 Other Information About Networks ······························································································29 Windows Media Player Ver.11 ········································································29...

  • Page 9: Getting Started

    Operation Using a Mobile device vpage 25 You can play music by operating a wireless LAN-compatible mobile device. Web Control Function (iPod touch only) vpage 28 Using the browser software on an iPod touch, you can operate the ASD-51N via the network.

  • Page 10: About The Remote Control Unit

    ENGLISH About the Remote Control Unit Before Using Remove the insulating sheet before using the remote control unit. Insulating sheet Inserting the Battery q Remove the rear lid. w Load properly as indicated by the marks in the battery compartment. e Put the rear lid back on.

  • Page 11: Part Names And Functions

    “ON/STANDBY” to power up the ASD-51N. This indicator then lights When the GUI and audio output stops the display is extinguished. Remote Control sensor ··········· (3) PARTY mode indicator···········...

  • Page 12: Remote Control Unit

    Supported iPods/iPod compatibles appears on the monitor. ENTER button······················(9, 17) The ASD-51N supports any iPod equipped with a Dock connector (except the 3rd and 4th generation, iPod mini and iPod Photo). iPod menu button For latest compatible lists, please visit.

  • Page 13: Connection To Devices Equipped With Dock Control

    Connection to devices equipped with Dock Control The ASD-51N can be operated remotely using the supplied remote control. By connecting to your existing equipment, you can play back your favourite music and video files from your iPod or from over a network.

  • Page 14: Connecting To A Home Network (Lan)

    ENGLISH Connecting to a Home Network (LAN) When you connect the ASD-51N to a home network, you can enjoy listening to music files stored on your PC, internet radio audio and other sources. You can also control the ASD-51N from your iPod touch via the Web browser.
  • Page 15 GUI menu “Setup” – “Network” – “Network Setup” (vpage 11). • With the ASD-51N, it is possible to use the DHCP and Auto IP functions to make the network settings automatically. • When using a broadband router (DHCP function), the ASD-51N sets the IP address, etc., automatically.

  • Page 16: Settings

    Media Server n Napster n Rhapsody GUI Menu Operations With the ASD-51N, settings and operations for most functions can be performed by operating while looking at the GUI menus displayed on the monitor screen. TOP MENU Press The GUI menu is displayed on the monitor Setup screen.

  • Page 17: Examples Of Gui Screen Displays

    ” z3 : Currently selected setup item and then press p (or press z4 : List of currently selected setup items ENTER z5 : Operation button guidance [1/5] DENON:[ASD-51N] Favorites Internet Radio Media Server Napster Rhapsody n Icon Switch the...

  • Page 18: Making Detailed Settings (Setup)

    Setting items Network Setup 1. Connect the LAN cable (vpage 7). 2. Turn on the ASD-51N (vpage 4, 6 b1 ). ASD-51N performs automatic network setup due to the DHCP function. When connecting to a network that has no DHCP function, perform the setting in step 3.
  • Page 19 DNS (Domain Name System) This is a system for converting the domain names used when browsing Internet sites (for example, “www. denon.jp”) into the IP addresses actually used for communications (for example, “202.221.192.106”). Proxy settings : Make this setting when connecting to the Internet via a proxy server.
  • Page 20 ENGLISH Making Detailed Settings (Setup) Setting items Network Setup uio p to input the proxy server port number y Use (Continued) ENTER and press u Use to select “Exit” and press Setup is complete. Network Info DHCP= ON/OFF / IP Address / MAC Address Display network information.
  • Page 21 Recently Played list. GHow to update the firmwareH 1. Connect the monitor and connect to the network. (vpage 6) 2. Turn on the ASD-51N (vpage 4, 6 b1 ). 3. Configure the network connection settings. (vpage 7) ENGLISH...
  • Page 22 Set the power operation switch on the ASD-51N to “OFF” . Firmware updating is now complete. NOTE Step 5 cannot take place if the ASD-51N does not connect to the Internet. In this case, repeat the procedure from step 2.
  • Page 23 Setting items Setting contents ON : Display update message. Update Notification Displays a notification OFF : Do not display update message. message ASD-51N’s ENTER • When you press during display of the notification screen when message, the “Check for Update” screen is displayed.

  • Page 24: Playback

    Be sure to comply with applicable copyright legislation. Preparations Load the iPod onto the ASD-51N. q Set the iPod in the ASD-51N. ENTER uio p Attached to accessory. (iPod screen) b If the screens above are not displayed, the iPod may not be properly connected.

  • Page 25: Viewing Still Pictures On The Ipod

    Internet radio refers to radio broadcasts distributed over the Internet. Internet radio stations from around the world can be tuned in. The ASD-51N is equipped with the following Internet radio functions: • Stations can be selected by genre and region.
  • Page 26 The time for which each picture is displayed can be set. When still picture (JPEG) files are played on the ASD-51N, they are played in the direction in which they are stored in the folder, so store in them in the direction in which you want them to play.

  • Page 27: Listening To Internet Radio

    Listening to Internet Radio Playback preparation. q Check the network environment, then turn on the ASD-51N’s power. (vpage 7 “Connecting to a Home Network (LAN)”) w If settings are required, make the network settings. (vpage 11 ~ 13 “Network Setup”) to select “Network”, then...

  • Page 28: Playing Files Stored On A Computer

    Use this procedure to play music files, image files or playlists. Playback preparation. q Check the network environment, then turn on the ASD-51N’s power. (vpage 7 “Connecting to a Home Network (LAN)”) w If settings are required, make the network settings. (vpage 11 ~ 13 “Network Setup”) e Prepare the computer.

  • Page 29: Listening To Napster

    Listening to Napster Playback preparation. q Check the network environment, then turn on the ASD-51N’s power. (vpage 7 “Connecting to a Home Network (LAN)”) w If settings are required, make the network settings. (vpage 11 ~ 13 “Network Setup”) to select “Network”, then...

  • Page 30: Listening To Rhapsody (For North America Model Only)

    (for North America model only) Playback preparation. q Check the network environment, then turn on the ASD-51N’s power. (vpage 7 “Connecting to a Home Network (LAN)”) w If settings are required, make the network settings. (vpage 11 ~ 13 “Network Setup”) Napster to select “Network”, then...
  • Page 31 Select the Search Mode [1/4] Rhapsody Rhapsody Music Guide Search Rhapsody Channels My Library q Search From Rhapsody Latest Information to select “Rhapsody Music ENTER Guide”, then press to select the information for ENTER track selection, then press After selecting, the information is displayed. to select the track, then press ENTER w Enter a Character Search For the...

  • Page 32: Convenient Functions

    Playback of the contents selected in step 1 begins. When selecting the ASD-51N from the mobile device, the name of the ASD-51N is displayed at “Friendly Name” (vpage 14 “Friendly Name Edit”). The following operations are possible from the mobile device: •...
  • Page 33 • When selecting the ASD-51N from the mobile device, the name of the ASD-51N is displayed at “Friendly Name” . “Friendly Name” can be edited at “Friendly Name Edit” (vpage 14) as desired so that it is easily distinguishable from other devices.

  • Page 34: Network (Party Mode Function)

    Connected in a Network (Party Mode Function) The same network audio (Internet Radio, Media Server or iPod music file) can be played on multiple DENON products equipped with the Party Mode function and connected in a network. The party mode consists of one organizer and up to four attendees.

  • Page 35: Operating The Asd-51N With A Browser (Web Control Function)

    Checking the IP address. Up/Down Back/Select ASD-51N Enter the IP address in browser’s address box. For example, if the IP address of ASD-51N is “192.168.100.33” , enter “http://192.168.100.33” . Carrier 7:12 PM Untitled Cancel 192.168.100.33 z: Entering the IP address.

  • Page 36: Other Information

    ENGLISH Other Information About Networks Windows Media Player Ver.11 This is a media player distributed free of charge by Microsoft Corporation. It can be used to play playlists created with Windows Media Player Ver. 11 as well as files in such formats as WMA, DRM WMA, MP3 and WAV.

  • Page 37: Troubleshooting

    No image appears on the • The iPod is not properly connected to the ASD-51N. monitor. • The AC adapter is not connected to the ASD-51N or a power outlet. Or the power operation switch on the ASD- 51N is not set to “ON/STANDBY”.
  • Page 38 ENGLISH GNETH Symptom Internet radio cannot be • Ethernet cable is not properly connected or network is played. disconnected. • Program is being broadcast in non-compatible format. • The computer’s or router’s firewall is activated. • Radio station is not currently broadcasting. •...
  • Page 39 • Wait a while before trying again. • Check if the Username for Rhapsody has been properly entered. Re-enter the Password. (Password is not displayed.) www.rhapsody.com/denon • Check if the Username for Napster has been properly entered. Re-enter the Password. (Password is not displayed.) http://www.napster.com/choose/index_default.html...

  • Page 40: Restart And Reset Operations

    ENGLISH Restart and Reset Operations If a fault occurs during use of the ASD-51N, for example, if you cannot connect to a network although the network settings are correct, or the iPod cannot be detected or the remote control unit does not work, you may be able to resolve the problem by taking the following action.

  • Page 41: Specifications

    Specifications Control Dock for iPod DC IN 6V Power supply: Maximum external dimensions: 140 (W) x 40 (H) x 110 (D) mm (5-33/64” x 1-37/64” x 4-21/64”) Weight: 320 g (11.3 oz) Analog audio output connectors x 1, Terminal: Digital audio output connector x 1, S-Video output connector x 1, Dock Control jack x 1 Remote Control jack x 1...
