- Page 1 User's Manual MX-20 2-CHANNEL DJ MIXER www.altoproaudio.com Version 1.4 October 2005 English...
- Page 2 SAFETY RELATED SYMBOLS Fuse To prevent fire and damage to the product, use only the recommended fuse type as indicated in this CAUTION manual. Do not short-circuit the fuse holder. Before RISK OF ELECTRIC SHOCK DO NOT OPEN replacing the fuse, make sure that the product is OFF and disconnected from the AC outlet.
- Page 3 LTO MX-20 2-CHANNEL DJ MIXER has extensive features i.e. 2 phono/line inputs; 1 microphone input; treble, middle and bass EQ on each channel; crossfader control etc., which are suitable for many other professional appli- cations.
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION...........................4 2. FEATURE LIST............................4 3. CONTROL ELEMENTS........................5 3.1 The Top Cover 3.1.1 The CHANNEL Section 3.1.2 The MIC/MAIN Section 3.1.3 The PFL (pre fader level) Section 3.1.4 The LEVEL METER Section 3.1.5 The CROSSFADER Section 3.2 The Front Panel 3.2.1 MIC IN Jack 3.2.2 The PHONE OUT Jack 3.3 The Rear Panel... -
Page 5: Introduction
1. INTRODUCTION What a great DJ mixer you have just bought. Your MX-20 is packed with features such as 2 turntable inputs, 2 line inputs, 1 microphone input, 3 bands equaliser and gain control for per channel. Though your MX-20 is very easy to operate. Please go through this manual carefully and you will get the best out of your MX-20. -
Page 6: Control Elements

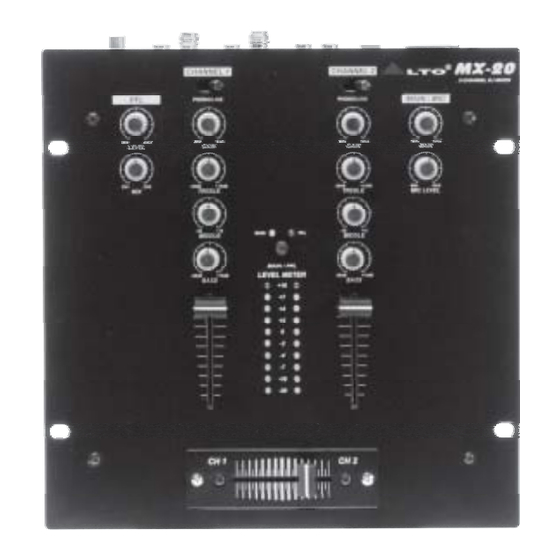

3. CONTROL ELEMENTS 3.1 The Top Cover MX-20 CHANNEL 2 CHANNEL 1 2-CHANNEL DJ MIXER MAIN / MIC PHONO/LINE PHONO/LINE GAIN GAIN MAIN LEVEL -30dB +15dB -30dB +15dB TREBLE TREBLE MIC LEVEL MAIN MIDDLE MIDDLE MAIN / PFL LEVEL METER... -
Page 7: The Channel Section
3.1.1 The CHANNEL Section -. PHONO / LINE Switch CHANNEL 1 This switch is available on both input channels. You shall use the LINE position for all high level audio signals such PHONO/LINE as CD Players, DAT, MD, etc.. You shall use the PHONO position to connect the turntables. -
Page 8: The Pfl (Pre Fader Level) Section
3.1.3 The PFL (pre fader level) Section When you connect a headphone to your MX-20 you have the chance of pre-listening the audio signal before the signal reach the main output. -. LEVEL Control This knob will adjust the volume of the headphone signal. -
Page 9: The Front Panel
3.2 The Front Panel PHONE 3.2.1MIC IN Jack This output will accept any unbalanced low impedance microphone. The functions of the microphone will be controlled by the MIC/MAIN section on the top panel. 3.2.2The PHONE OUT Jack This input will accept a standard headphone with a 1/4" stereo jack. Through the PFL section on top panel, you can adjust the headphone signal properly. -
Page 10: Ac Inlet And Fuse Holder
3.3.3 MAIN OUT Both MAIN output and TAPE output are RCA type connectors. Through the MAIN output you can connect your MX-20 to an amplifier. Through the TAPE output you can connect your MX-20 to a tape recorder. 3.3.4 INPUT - PHONO input: Both Channels feature PHONO inputs including RIIA preamplifier for turntable. -
Page 11: Technical Specifications
4. TECHNICAL SPECIFICATIONS INPUTS Phono Inputs 1 and 2 48dB gain@1kHz,unbalanced Line Inputs 1 and 2 8dB gain, unbalanced Mic Input 58dB gain, servo balanced OUTPUTS Headphones typically 125mW@ 1% THD Main Out max +21dBu Tape Out typically 0dBu GENERAL Stereo Bass +15dB/ 30dB Stereo Middle... -
Page 12: System Block Diagram
5. SYSTEM BLOCK DIAGRAM... -
Page 13: Warranty
6. WARRANTY 1. WARRANTY REGISTRATION CARD To obtain Warranty Service, the buyer should first fill out and return the enclosed Warranty Registration Card within 10 days of the Purchase Date. All the information presented in this Warranty Registration Card gives the manufacturer a better understanding of the sales status, so as to purport a more effective and efficient after-sales warranty service. - Page 14 No. 1, Lane 17, Sec. 2, Han Shi West Road, Taichung 40151, Taiwan http://www.altoproaudio.com Tel: 886-4-22313737 email: alto@altoproaudio.com Fax: 886-4-22346757 All rights reserved to ALTO. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. Copyright...
