Bosch FA400 Brochure & Specs

Intrusion Alarm Systems | FA400 Remote Receiver
FA400 Remote Receiver
www.boschsecurity.com

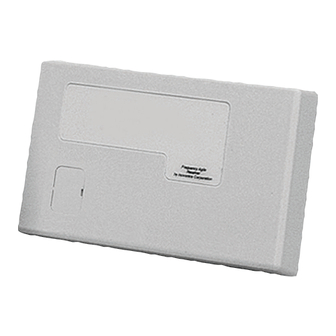

Installers can place the FA400 Remote Receiver
throughout a protected area, including building
interiors. The receiver contains a radio receiver to
detect the radio transmission from wireless devices
and provides a serial output.
Functions
Communication Reliability
Using a bandwidth of at least 10 MHz in the 900 MHz
range with a frequency hopping technique that sends
redundant messages across that bandwidth reduces
interference and provides a greater range for more
reliable communication. The shorter wavelength at
900 MHz allows signals to pass through narrow
openings in both commercial and residential
environments. The higher transmission power allowed
by the Federal Communications Commission (FCC) for
900 MHz spread spectrum systems results in a longer
open-field range than traditional 300 MHz products.
False Alarm Reduction
The 56 bit communication protocol eliminates lost or
incorrectly decoded signals due to radio interference.
Reliable communication through 900 MHz spread
u
spectrum technology with frequency hopping
False alarm reduction through 56 bit communication
u
protocol and advanced signal processing
Serial output
u
Certifications and approvals
Complies with: FCC Part 15
Installation/configuration notes
Compatibility Information
Control Panels D9412GV2, D7412GV2, and D7212GV2
D9412G, D7412G, v6.30 or higher
D7212G, v6.41 or higher
Wireless D8125INV
Interface
Modules
Key Fobs FA113 Keychain Remote Control
Transmitters All Inovonics™ 900 MHz Frequency Agile™
Wireless Transmitters, except the FA212 and
FA214 Transmitters, when used with compatible
Bosch control panels.
Repeaters FA570 and FA575
