Coleman REDWOOD 9273-210 Instructions

When You Are Ready
To Set Up Your Tent
– Select a level campsite clear of
rocks, branches and other hard
or sharp objects.
– Do not set up your tent under trees.
– For best results in windy conditions,
do not position the door of tent
into the wind.

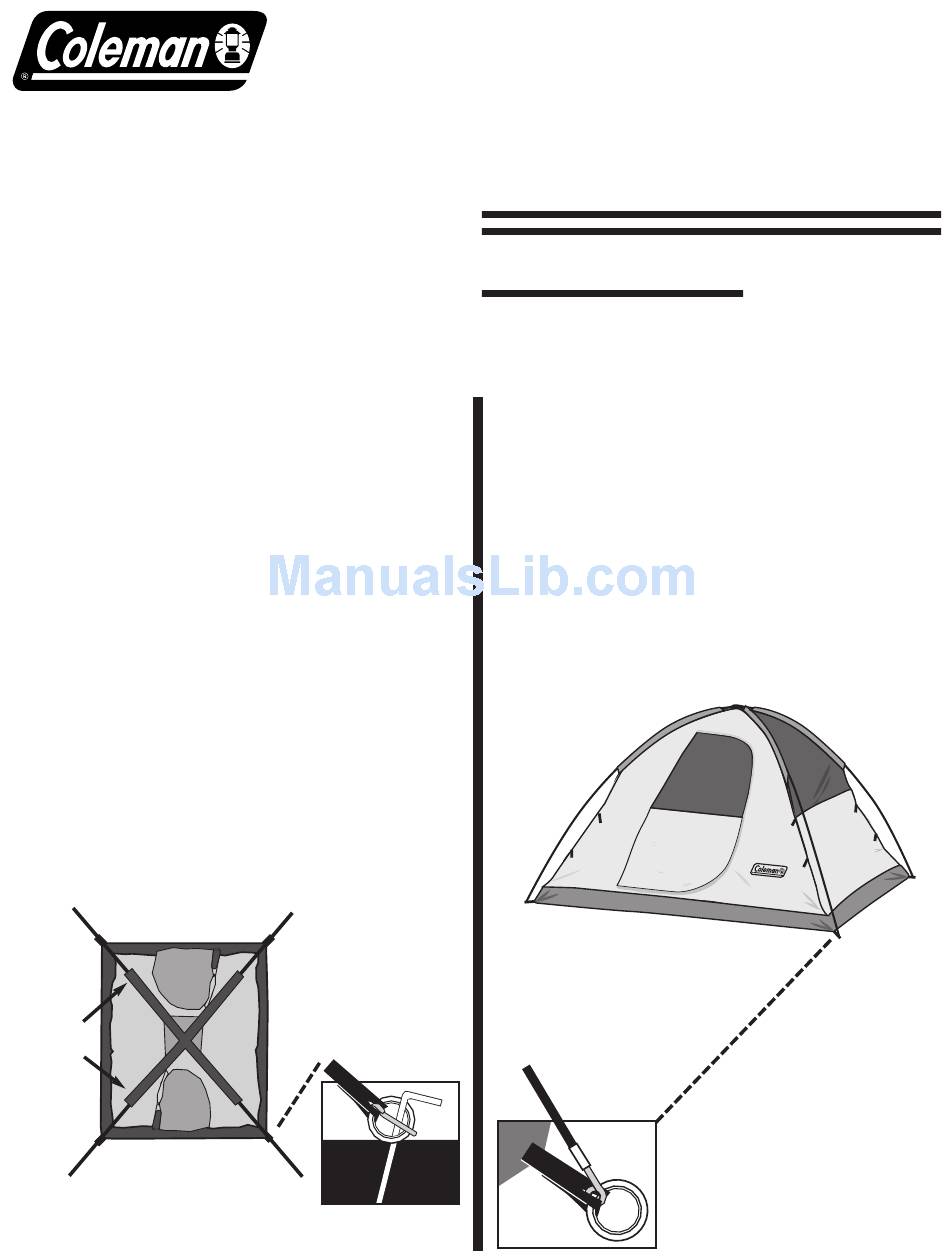

1 Layout & Positioning
of Tent, Pole Assembly
– Layout and position tent with door
facing desired direction. (illus. 1)
– Unzip door.
– Stake down tent using the rings of the
pin & ring system at the corners of the
tent. Keep the floor taut. (illus. 2)
– Assemble frame poles by
interlocking shock-corded poles.
This will make two long poles.
– Insert the poles diagonally into pole
sleeves. The center of the poles
should cross forming an "X" in the
middle of tent. (illus. 1)
Assembled
poles
inserted
through
pole
sleeves
illus. 1
REDWOOD
Instructions apply to Part Number 9273-210
POLE ASSEMBLY PARTS
Part No. 9273-3821
(2) Main Tent
Poles
(1) Rainfly Part No. 9273-3881
Pole
Rainfly Part No. 9273-3861
illus. 2
Tent stake
through ring
® 12'x10'
2 Connect Frame to Tent
– Insert one end of main tent pole
onto pin of pin & ring system at tent
corner. (illus. 3)
– Go to opposite end of pole and
gradually apply pressure to the pole
forming an arch until you are able to
insert the pin into the pole.
– Repeat for second pole. (illus. 4)
illus. 3
Insert pole end onto
pin & ring
illus. 4
Tent
frame set-up
