Coleman TIOGA 9273C128 Instructions

When You Are Ready
To Set Up Your Tent
– Select a level campsite clear of rocks,
branches and other hard or sharp objects.
– Do not set up your tent under trees.
– For best results in windy conditions,
do not position the door of tent into
the wind.
1 Layout & Positioning
of Tent, Pole Assembly
– Layout and position tent with doors
facing desired direction. (illus. 1)
– Unzip doors.
– Stake down tent corners only, using
the rings at the end of the stake loops.
Keep the floor taut. (illus. 2)
– Assemble Frame Poles by
interlocking shock-corded poles.
This will make three long poles.
– Insert the poles diagonally into three
Pole Sleeves. (illus. 1)

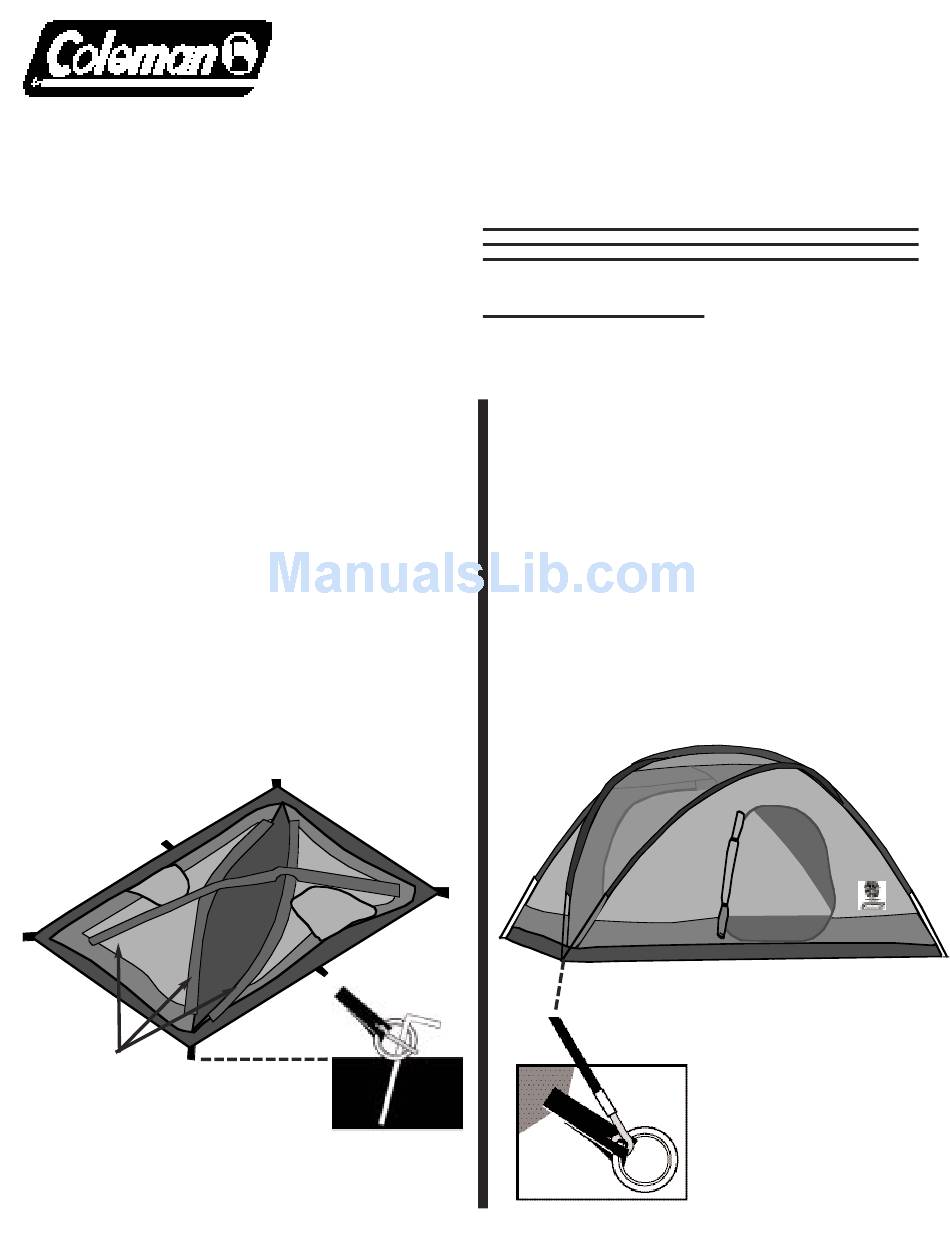

illus. 1
Insert poles
through
three pole
sleeves
TIOGA
™
Instructions apply to Part Number 9273C128
POLE ASSEMBLY PARTS
Part No. 9273C121
(3) Main
Tent Poles
Part No. 9273C122
(1) Rainfly
Pole
Rainfly Part No. 9273C123
2
illus. 2
Tent stake
through ring
12'x 8'
Connect Frame to Tent
– Insert one end of main tent pole end
onto pin of pin & ring system, at tent
corner. (illus. 4)
– Go to opposite end of pole and
gradually apply pressure to the pole
forming an arch until you are able to
insert the pin into the pole.
– Repeat for second and third poles.
illus. 3
illus. 4
Insert pole end onto
pin & ring
Tent frame
set-up
