Optional Setup
Local
Computer
Receiver
CAT5 cable of
up to 500 ft.
Remote Console
OmniView
KVM Switch
Transmitter
OR
Local Console
Computer

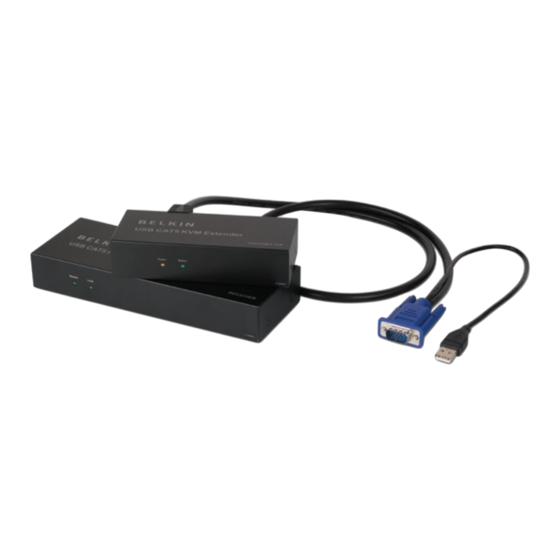

USB CAT5 Extender
®
The Belkin OmniView USB CAT5 Extender allows you
to control your computer or KVM switch from up to
500 feet (150m) away. It is perfect for isolated server
rooms, large server farms, secure systems, or test
benches where the computer or KVM switch may be
inaccessible to the user.
The CAT5 Extender significantly reduces cable
bulk and simplifies cable management with
CAT5 technology. The Extender also features
both local and remote console accessibility
with an optional 2-port KVM function at the
remote terminal (additional cables required).
Benefits
CAT5 Technology
Servers
•
Integrated CAT5 technology enables you to
connect your KVM switch to your servers
up to 500 feet (150m) away using standard
CAT5 cabling. CAT5 cabling reduces cable
bulk and simplifies cable management.
Video Resolution
•
The CAT5 Extender supports video resolutions
of up to 1920x1440@75Hz on local computers
and up to 1280x1024@75Hz on remote.
Local and Remote Ports
•
The CAT5 Extender features local and
remote console ports, enabling you to
control your computers from near or far.
Built-In Cabling
•
A built-in, 3-foot, all-in-one KVM cable provides
an easy connection between the CAT5
Extender and your computer or KVM switch.
LED Display
•
An LED display on the transmitter and receiver
units provides quick status monitoring.
A power LED indicates power is being
supplied to the unit. A flashing LED indicates
whether the data is being transmitted.
