Intel D845PESV Specification Update

Intel desktop board
Hide thumbs Also See for D845PESV:

Advertisement

Quick Links

Download this manual
®
Intel
Desktop Board
D845PESV

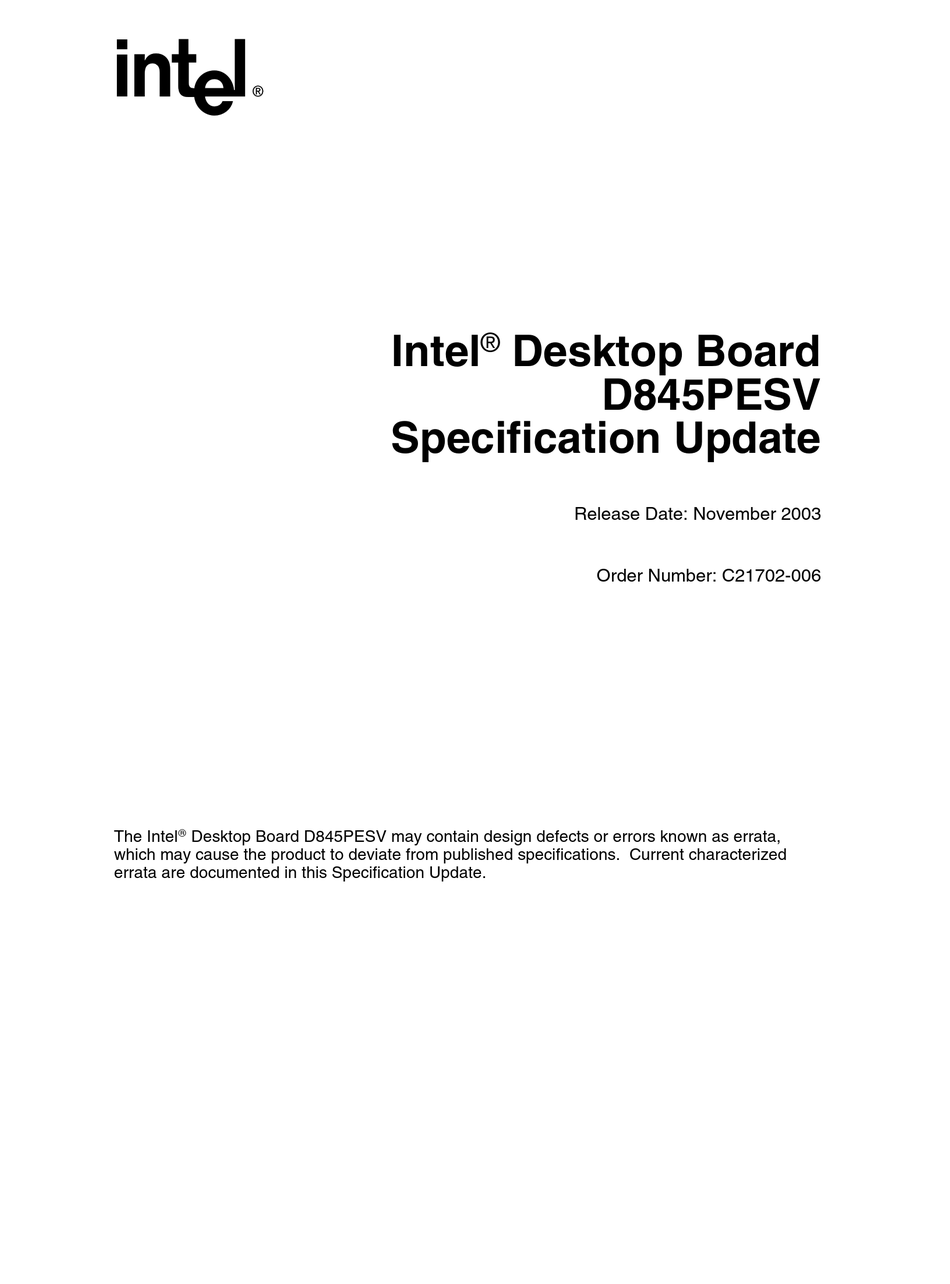

Specification Update
Release Date: November 2003
Order Number: C21702-006
The Intel
Desktop Board D845PESV may contain design defects or errors known as errata,
which may cause the product to deviate from published specifications. Current characterized
errata are documented in this Specification Update.

Advertisement

loading

Related Manuals for Intel D845PESV

Summary of Contents for Intel D845PESV

  • Page 1 Release Date: November 2003 Order Number: C21702-006  The Intel Desktop Board D845PESV may contain design defects or errors known as errata, which may cause the product to deviate from published specifications. Current characterized errata are documented in this Specification Update.
  • Page 2 Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your product order. Copies of documents which have an ordering number and are referenced in this document, or other Intel literature, may be obtained from: Intel Corporation P.O.

  • Page 3: Table Of Contents

    CONTENTS REVISION HISTORY ...........................v PREFACE ..............................vi  Specification Update for the Intel Desktop Board D845PESV GENERAL INFORMATION ..........................3 ERRATA...............................5 SPECIFICATION CLARIFICATIONS......................6 DOCUMENTATION CHANGES ........................8...

  • Page 5: Revision History

     Intel Desktop Board D845PESV Specification Update REVISION HISTORY Date of Revision Version Description November 2002 -001 This document is the first Specification Update for the  Intel Desktop Board D845PESV. December 2002 -002 Added Erratum 1. February 2003 -003 Added Erratum 2.

  • Page 6: Preface

    82801DB I/O Controller Hub and that may apply to the desktop board D845PESV. Unless otherwise noted in this document, it should be assumed that any ICH errata for a given stepping are applicable to the Altered Assembly (AA) revision(s) associated with that stepping.

  • Page 7: Specification Update For The Intel Desktop Board D845Pesv

    Specification Update for the ® Intel Desktop Board D845PESV...

  • Page 9: General Information

    MCH that may apply to the desktop board D845PESV  Refer to the Intel 82801DB I/O Controller Hub 4 (ICH) Specification Update (Order Number 290745) for errata related to the 82801DB I/O Controller Hub that may apply to the desktop board D845PESV...
  • Page 10 The following table indicates the Specification Changes, Errata, Specification Clarifications, or Documentation Changes that apply to the desktop board D845PESV. Intel intends to fix some of the errata in a future revision of the desktop board, and to account for the other outstanding issues through documentation or specification changes as noted.

  • Page 11: Errata

    ROBLEM (ICH 4) Specification Update, order number 290745 found at http://developer.intel.com/design/chipsets/specupdt. For a complete description of the ICH 4 erratum 8, see the Intel 82801DB I/O Controller Hub 4 MPLICATION (ICH 4) Specification Update, order number 290745 found at http://developer.intel.com/design/chipsets/specupdt.

  • Page 12: Specification Clarifications

    Intel Desktop Board D845PESV Specification Update SPECIFICATION CLARIFICATIONS The Specification Clarifications listed in this section apply to the Desktop Board D845PESV Technical Product Specification (Order Number C14583). All Specification Clarifications will be incorporated into a future version of that specification.
  • Page 13 The AGP slot is not numbered. PCI slots are identified as PCI slot #x, starting with the slot closest to the processor. The CNR slot shares an ATX expansion; slot 6 on the D845PESV board and slot 3 on the D845PECE board. The ATX/MicroATX specifications identify expansion slot locations with respect to the far edge of a full-sized ATX chassis.

  • Page 14: Documentation Changes

    Intel Desktop Board D845PESV Specification Update DOCUMENTATION CHANGES The Documentation Changes listed in this section apply to the Desktop Board D845PESV Technical Product Specification (Order Number C14583). All Documentation Changes will be incorporated into a future version of that specification.
  • Page 15  Intel Desktop Board D845PESV Specification Update Add Alert Standard Format Specification Version 1.03 Dated June 20, 2001 to Section 1.5, Design Specifications The following specification will be added to table 4, Section 1.5, Design Specifications: Reference Specification Version, Revision Date,...
