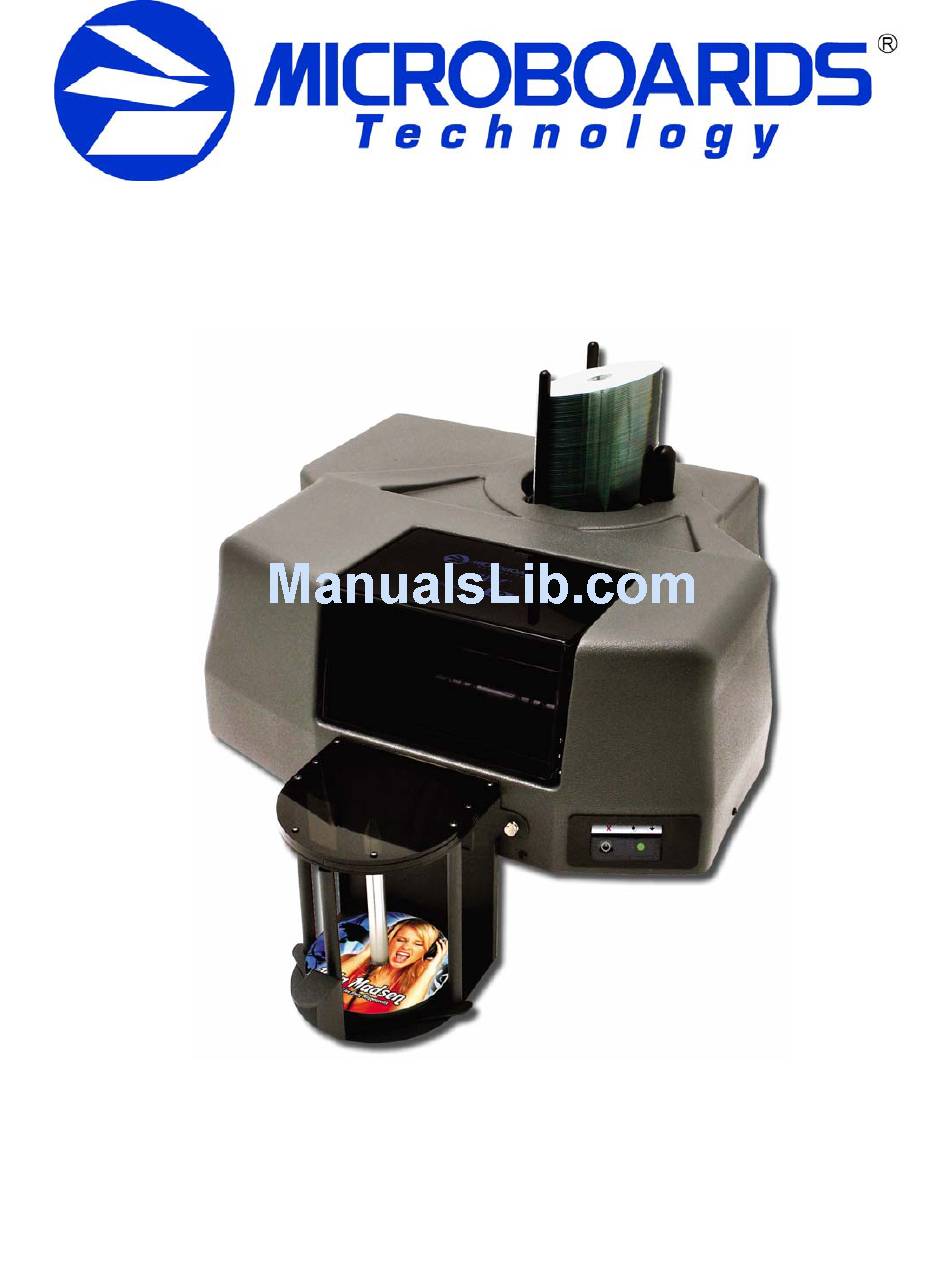

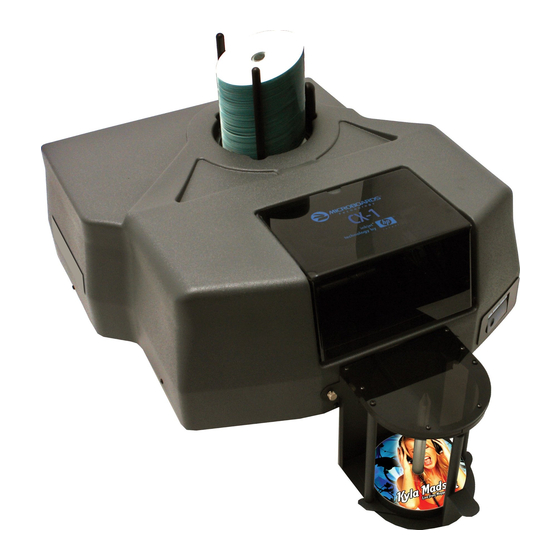

  • Page 1 CX-1 Disc Publisher For Mac OS-X Users Manual Microboards Technology LLC Version 1.0...
  • Page 2 Any unauthorized modification to this equipment may result in the revocation by the FCC of the user’s authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    Disc Printing ........................13 Support..........................13 Supplies .......................... 13 Registration ........................13 Recycling......................... 13 The CX-1 Disc Publisher and PrintWrite ................14 Print Only without PrintWrite ....................14 Troubleshooting ......................... 15 Printer not printing: ......................15 Disc Loading error ......................15 Low Ink indication......................

  • Page 5: Introduction

    Flexibility and Speed for Any Application While the CX-1 Disc Publisher was designed to fill a need in the high-volume arena, it also has the ability to print at 4800 x 1200 dpi on both DVD and CD media. With the included design software, users can enjoy its benefits whether making a few discs or a few hundred.

  • Page 6: System Requirements

    Assembly and Installation Assembly Instructions CX-1 Disc Publisher Assembly Remove the CX-1 Disc Publisher system from the shipping box and confirm you received all of the items. Place the CX-1 Disc Publisher on a stable, flat surface. You will need room both in front and behind the system, as discs will be accessed from both locations.

  • Page 7: Front Panel Indicators And Buttons

    Load the rest of the discs at an angle, against the wide input rod, as seen in figure 2. The CX-1 Disc Publisher will hold a maximum of 100 discs. DO NOT load more than 100 discs in the system, as this may cause the discs to load incorrectly.

  • Page 8: Installing Ink Cartridges

    CX-1 Disc Publisher to fail and may affect your warranty. Loading / Replacing Ink Cartridges Cartridges can be changed while the CX-1 Disc Publisher is on. The Out of Ink LED will light if any cartridge is beginning to run low on ink.

  • Page 9: Replacing Empty Ink Cartridges

    CX-1 DISC PUBLISHER Replacing Empty Ink Cartridges The CX-1 Disc Publisher will notify you when either cartridge is completely empty. Since the current print job will be cancelled at that point, it is strongly recommended that you replace the cartridges when you are notified that they are low rather than waiting until they are empty.

  • Page 10: Installation Of Drivers And Software

    1. Plug in the AC power cord to the back of the CX-1 Disc Publisher. 2. Confirm that the power is turned ON to both the CX-1 Disc Publisher and on your Mac. 3. Connect the square shaped end of the USB cable to the back of the CX-1 Disc Publisher.

  • Page 11: Printer Alignment

    Access the Microboards Utility by selecting the System Preferences from the Dock. Select Print & Fax. Highlight the Microboards PF-3 icon and click the Utility icon. You can also select Open Printer Utility from the Utilities menu in PrintWrite. The Utility will allow you to access the Printer information as shown below.

  • Page 12: Supply Status

    To confirm the computer is communicating with the CX-1 Disc Publisher, print a Test Disc. This can be done with one of the inkjet printable CD’s included with your CX-1 Disc Publisher, or an inkjet compatible disc you may already have. To print the Test Disc: •...

  • Page 13: Disc Printing

    Clicking the Registration button will open your default internet browser to the Microboards Product Registration webpage. When registering your CX-1 Disc Publisher, please be sure you are including the correct serial number, which will be on the back of the CX-1 and on the box product label. This function requires an internet connection.

  • Page 14: The Cx-1 Disc Publisher And Printwrite

    Microboards PrintWrite is required to control the Burn and Print functionality of the Microboards CX-1 Disc Publisher. It is able to set up publishing jobs, load the CX-1 , burn to the loaded disc, unload the disc, and then print the image you have selected.

  • Page 15: Troubleshooting

    Remove any discs that are left on the belt. 2. Lift the cover and check for any discs on the front deck of the CX-1 Disc Publisher. Remove any discs found on the belts. Close the cover.

  • Page 16: Printing Specifications

    90VAC – 240VAC, 47Hz – 63Hz (Black) Memory: Maximum Print Width: 8 MB 4.72” (120mm) Technical Support For technical questions or support issues, contact Microboards Technology technical support: United States Europe Japan PH: 952-556-1639 PH: +44 (0) 845 230 7800 PH: 03-3561-2266 FAX: 952-556-1628 www.microboards.co.uk...
