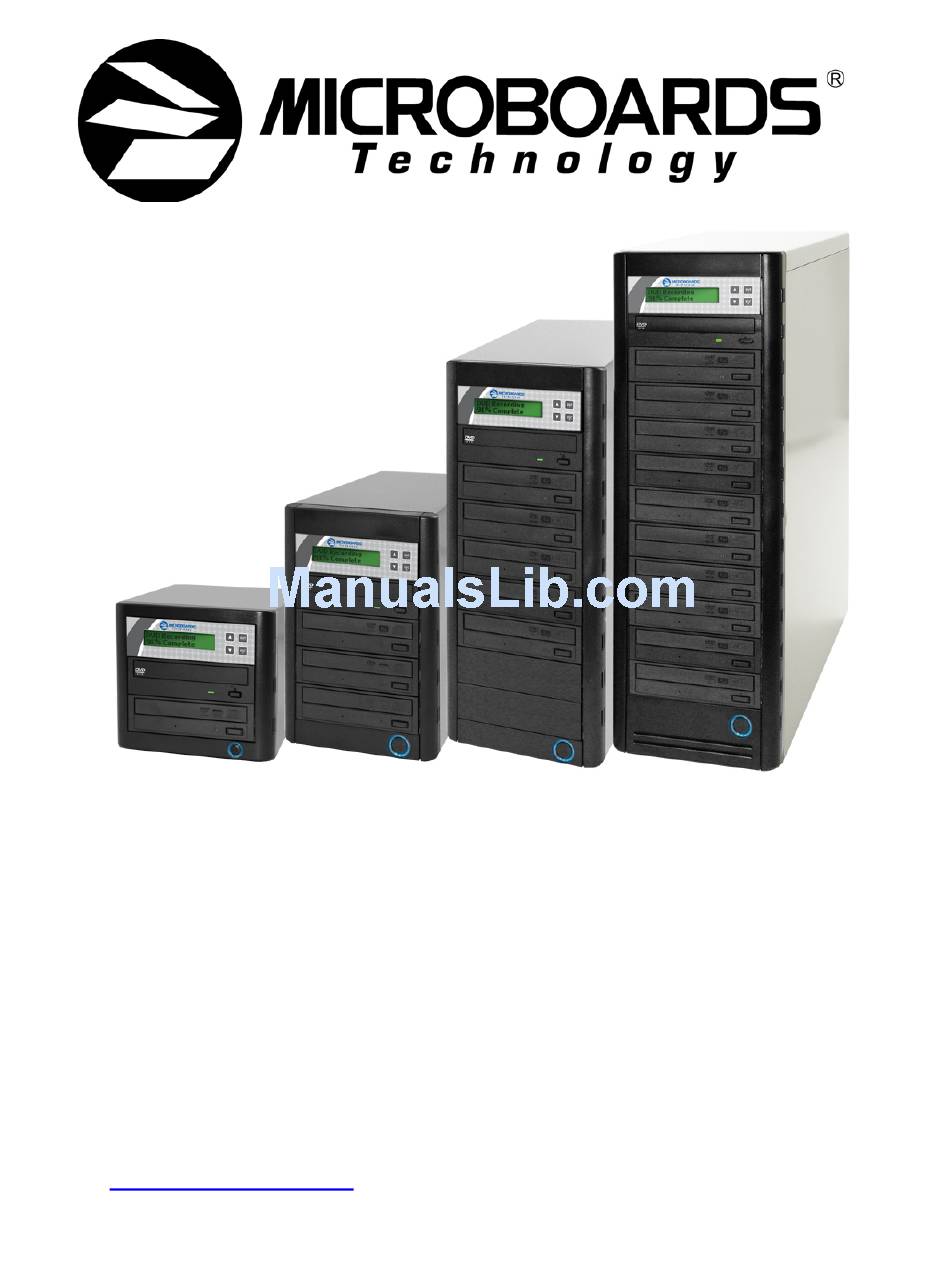

- Page 1 QD-DVD Series User’s Manual www.microboards.com Version 3.1...
- Page 2 Microboards Technology, LLC...
-
Page 3: Table Of Contents
Shutdown ......................13 The Setup Menu ...................... 14 The Utilities Menu ....................16 Specifications – QD-DVD Series................18 Technical Support ....................18 Appendix 1: List of Functions with Optional Hard Drive ........... 19 Appendix 2: List of Functions without Hard Drive ............ 20... - Page 4 Microboards Technology, LLC Any unauthorized modification to this equipment may result in the revocation by the FCC of the user’s authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 5: Introduction
QD-DVD Series Introduction The QD-DVD Series includes models containing 1, 3, 5, 7, and 10 recorders. Each is a high speed CD and DVD Recordable duplication system from Microboards Technology, LLC. The QD-DVD-H models include an integrated hard drive for master storage. -
Page 6: Hardware Description
Microboards Technology, LLC Hardware Description Controller Interface DVD Reader Drive DVD Recorder Drives QD-DVD 123 Power Switch and The QD-DVD system consists of a DVD reader, DVD Recorders (based on model), USB Connection, and Controller module. An optional Hard Drive is included in the QD-DVD-H models. -
Page 7: Main Menu
QD-DVD Series Main Menu This section provides an overview of the menu options. These menu options are explained in detail in the Using the QD Series Duplicator section starting on page 9. Copy Use the Copy menu to make CD and DVD copies. Before you start a copy, make sure you have selected the correct Master Source. - Page 8 Microboards Technology, LLC Setup Use the Setup menu options to control how the Duplicator operates. You can scroll between the various options using the ▲ Up or ▼ Down button. 1. Language 2. Auto Start 3. Read Error Skip 4. CD Writing Mode 5.
-
Page 9: Setting Counters
QD-DVD Series Setting Counters The QD DVD Series gives you the option to set a counter so that Microboards B.30 the machine can keep track of the number of copies made. Follow 1. Copy these steps when you see a Counter Selection Menu:... -
Page 10: Test
Microboards Technology, LLC After a few seconds of processing time, one of the following Copy Progress screens will appear. Copying... 4063MB Copying... 4063MB 0/21 488MB 488MB “4063MB” indicates the capacity of the master “4063MB” indicates the disc. capacity of the master “0/21”... -
Page 11: Test + Copy
Full Erase. Hard Drive Setup This menu option is only available if you purchased your QD-DVD Series Duplicator with the optional hard drive. It is used to access the Hard Drive functions. If it is not already set so, you will be asked if you want the set the hard drive as the source. Press the ENT button to set the hard drive as the source and enter the Hard Drive Setup menu. -
Page 12: Mix Audio Tracks
The Format Hard Drive function cannot be undone. Mix Audio Tracks If your QD-DVD Series Duplicator does not include a hard drive, the display will show this menu item as 9, not 10. You can use the Mix Audio Tracks feature to combine specific Microboards B.30... -
Page 13: Setup
(Auto Start must be set to Auto or Full). Shutdown If your QD-DVD Series Duplicator does not include a hard drive, the display will show this menu item as 13, not 14. -
Page 14: The Setup Menu
Microboards Technology, LLC The Setup Menu The Setup menu includes many settings the user can select to customize the use of the QD-DVD duplicator. A description of the options in the setup menu follows. Note: You must use either the Shutdown menu or manually run the Save function from the Utilities menu, or any changes you make to the Setup Menu settings will be lost when you turn off your duplicator. -
Page 15: Disable Drives
QD-DVD Series The Load and Copy setting will load the master to the hard drive during the first burn cycle; subsequent burns without leaving Copy mode will use the hard drive image as the source for added stability. To use a new master disc in Load and Copy mode, you must press ESC to... -
Page 16: The Utilities Menu
Microboards Technology, LLC CD+G Support This feature allows CD+G content to be copied from master disc to blank CDs. The default is OFF. Please note that the Mix Audio Tracks function cannot be performed with the CD+G Support setting ON. - Page 17 QD-DVD Series Use a disc burning application such as the Zulu2 Disc Burning application provided with your QD- DVD to burn the Update files to a CD. Firmware Updates should only be performed after contacting Technical Support to ensure that you are attempting to install the correct firmware for your duplicator.
-
Page 18: Specifications - Qd-Dvd Series
DVD-+R, DVD-+RW, DVD-+R DL, DVD-VIDEO CAUTION: Disconnect AC Power Cord Before Servicing. High Voltages Present with Unit Powered Off and Line Cord Connected. Technical Support For technical questions or support issues, contact Microboards Technology technical support: United States Europe Japan... -
Page 19: Appendix 1: List Of Functions With Optional Hard Drive
Appendix 1: List of Functions with Optional Hard Drive 1. Copy 2. Test 3. Compare 4. Test + Copy 5. Copy + Compare 6. Select Burn Speed 7. Select Source 8. Erase 9. Hard Drive Setup 1. Select Partition 2. Load Partition 3. -
Page 20: Appendix 2: List Of Functions Without Hard Drive
Microboards Technology, LLC Appendix 2: List of Functions without Hard Drive 1. Copy 2. Test 3. Compare 4. Test + Copy 5. Copy + Compare 6. Select Burn Speed 7. Select Source 8. Erase 9. Mix Audio Tracks 10. Setup 1. -
Page 21: Appendix 3: Error Messages
QD-DVD Series Appendix 3: Error Messages Master Discs should always be clean and free from scratches to reduce the number of duplication failures. If an error situation occurs during duplication, the display will show both an error code and an error message. - Page 22 Microboards Technology, LLC Error Error Message Description and Recommended Solutions Code The total size of the Applies to Mix Audio Tracks. selected tracks is larger than the remaining capacity of Over Blank Disc the target discs. Capacity Select alternate track of smaller size, or remove selected track.
