CAUTION
• Be careful not to confuse parts, and be sure to install all
parts in the correct direction. Please assemble the unit in
the appropriate sequence.
• Assembly should be carried out by at least two persons.
• Be sure to use only the included screws. Do not use any
other screws. Inappropriate screws may cause damage or
malfunction of the product. Be sure to insert screws of the
proper size in the correct hole locations.
• Be sure to tighten all screws upon completing assembly of
each unit.
• To disassemble, reverse the assembly sequence.

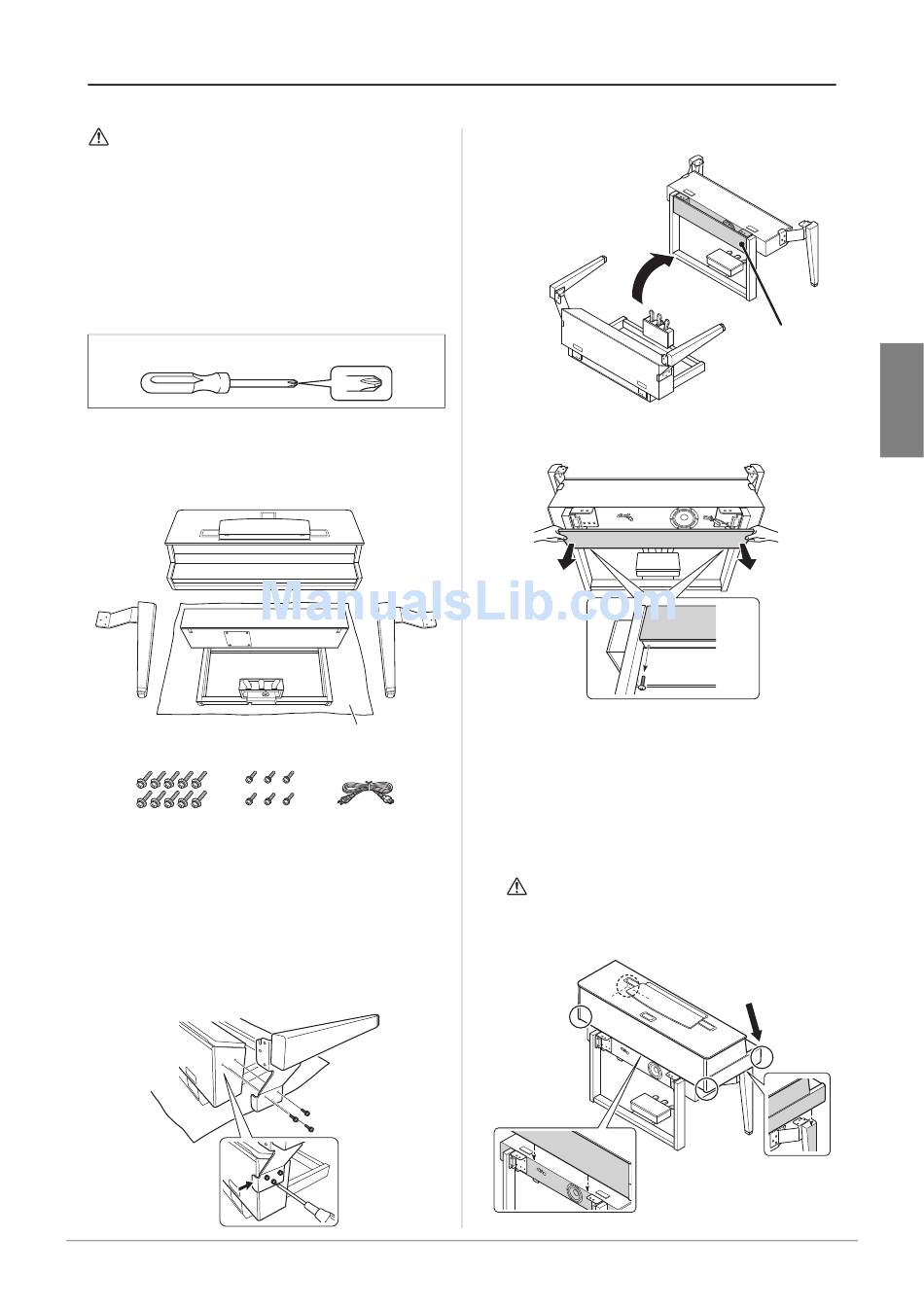

Have a Phillips-head (+) screwdriver of the appropriate size ready.
Remove all parts other than the main unit from the box.
Confirm that all parts shown in the illustration are pro-
vided. Do not remove the main unit from the box prior to
step 3.
Leg (L)
Speaker box
Be sure to lay the packaging sheet
or other protective sheet on the
floor and under the instrument.
6 × 30 mm 6 × 20 mm
long screws × 10 short screws × 6
1
Attach the legs to the speaker box.
1-1 Attach the leg (L) to the side of the speaker box
using three short screws (6 x 20 mm).
1-2 While pressing the bracket on the leg against the
speaker box, securely tighten the screws that were
attached.
1-3 Follow the same steps to attach the leg (R).

Assembling the Unit

Main Unit
Leg (R)
AC power cord × 1
1-1
1-2
1-4 Raise the speaker box.
2
Detach the speaker net.
2-1 Remove the two screws. These screws are used in
step 6.
2-2 Detach the speaker net.
3
Mount the main unit.
3-1 Mount the main unit on the speaker box while
aligning the rear of the main unit with the rear of the
speaker box, and each lateral side of the main unit
with the lateral side of the legs.
CAUTION
Be careful not to pinch your fingers when mounting the
main unit.
Do not hold here.
2-2
2-1
Hold here.
N1 • 37
