Yamaha MORPHOUS CP250V Owner's Manual page 54

PERIODIC MAINTENANCE AND MINOR REPAIR
2
1
2
1
3
1. Quick fastener
2. Screw
4
To install the cowling
Place the cowling in the original posi-
5
tion, and then install the screws and the
quick fasteners.
6

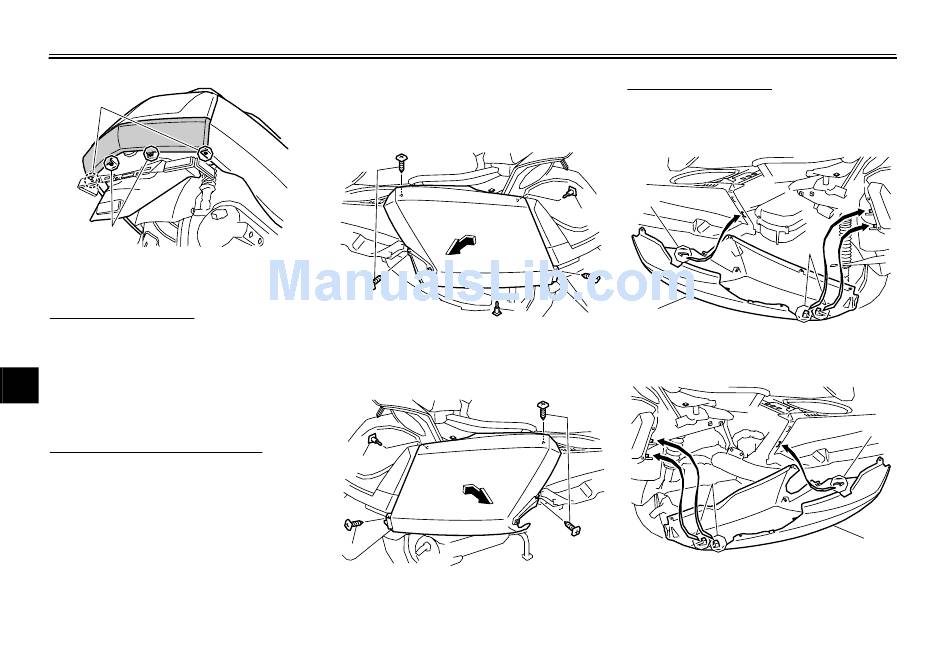

Cowlings D and G
7
To remove one of the cowlings
1. Remove storage compartment B.
8
(See page 6-21.)
2. Remove cowling E.
9
3. To remove cowling D, first remove
cowling F. To remove cowling G,
first remove cowling H.
4. Open the trunk. (See page 3-14.)
5. Remove the screws and the quick
fasteners.
6. Pull the cowling slightly forward,
and then pull it outward as shown.
Left
1
(×3)
2
1. Screw
2. Quick fastener
Right
2
1
1. Screw
2. Quick fastener
6-12
To install the cowling
1. Place the cowling in the original
position, and then install the
screws and the quick fasteners.
2
2
(×2)
1
1
1. Cowling D
2. Tab
1 (×3)
2
1. Cowling G
2. Tab
2
2
1
