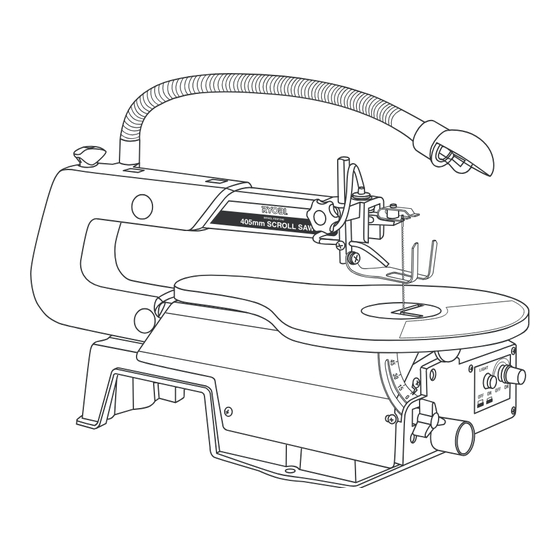

Ryobi ESW1240RK Owner's Operation Manual

405mm variable speed scroll saw with accessory kit and flexible shaft
Hide thumbs

Advertisement

Quick Links

Download this manual
THANK YOU FOR BUYING A RYOBI SCROLL SAW
Your new scroll saw has been engineered and manufactured to Ryobi's high standard for
dependability, ease of operation, and operator safety. Properly cared for, it will give you years
of rugged trouble free performance.
CAUTION: Carefully read through this entire owner's manual before using your
Pay close attention to the Rules for Safe Operation, Warnings and Cautions.
If you use your saw properly and only for what it is intended, you will enjoy years of safe, reliable
service.
Thank you again for buying Ryobi tools.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
OWNER'S OPERATION MANUAL
405mm VARIABLE SPEED SCROLL SAW
WITH ACCESSORY KIT AND FLEXIBLE SHAFT
MODEL ESW1240RK
SCROLL SAW.
N197

Advertisement

loading

Related Manuals for Ryobi ESW1240RK

Summary of Contents for Ryobi ESW1240RK

  • Page 1 N197 THANK YOU FOR BUYING A RYOBI SCROLL SAW Your new scroll saw has been engineered and manufactured to Ryobi's high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged trouble free performance.
  • Page 2 RULES FOR SAFE OPERATION The purpose of safety rules is to attract your attention to 8. USE RIGHT TOOL. Don't force small tool or attachment possible dangers. The safety symbols and the explanations to do the job of a heavy duty tool. Don't use tool for purpose not intended.

  • Page 3: Getting To Know Your Scroll Saw

    Due to continued product refinement policy, product features and specifications can and will change without notice. Check current features and specifications with your retailer. GETTING TO KNOW YOUR SCROLL SAW This versatile scroll saw is great for making toys, puzzles, games, fretwork and jewellery, and because of its cutting capacity, is a handy-do-it-yourself tool.
  • Page 4 Fig. 0 1. Sanding Band 2. Diamond Cutter 3. Diamond Cutter 4. Diamond Cutter 5. Diamond Cutter 12.5 x 13 mm Sphericity Sphericity Taper Taper Grit 80 6pcs 3 mm 1pce 2.5 mm 1pce 3.9 x 6.6 mm 1pce 4.3 x 8.5 mm 1pce 6.
  • Page 5 15. Grinding Wheel 16. Grinding Wheel 19. Rubber Pole 17. Small felt Wheel 18. Big felt Wheel 20 x 3 mm 10 x 3.2 mm 12.5 x 13.3 mm 13 x 7 mm 3pcs 25.5 x 6 mm 3pcs Grit 150 1pce Grit 150 1pce...
  • Page 6 Cap Screw Adaptor Blade Blade Slots Guard Tension Knob Blade Pin Loosen Tighten Recesses Blade Blade Positioned Positioned for side cutting for front cutting Upper Inner Blade Holder Lower Inner Table Tilted for Blade Holder picture clarity Fig. 4 Blade Adaptor Blade Adaptor...
  • Page 7 Adaptor Blade Adaptor Cap Screw Blade Blade Guard Tension Knob Blade Pin Blade Length Gauge Tighten Loosen Slight Pressure Here Recesses Upper Inner Blade Holder Lower Inner Blade Holder Table Tilted For Fig. 9 Picture Clarity Scroll Sawbase 12mm Foam Pad or Carpet(optional) Workbench Flatwasher Lockwasher...
  • Page 8 Fig. 14 Fig. 15 DESCRIPTIONS(FIG. 0) 9. Blade length gauge 1. Table 10. Table insert 2. Sawdust blower 11. On/Off and variable speed switch 3. Vacuum hook-up 12. Adjustable light 4. Drop foot 13. Cover 5. Drop foot lock knob 14.
  • Page 9 OPERATING ADJUSTMENTS SETTING THE TABLE FOR HORIZONTAL OR BASIC SCROLL OPERATIONS BEVEL CUTTING(Fig. 1). BLADES Your new scroll saw accepts 127mm pin type Loosen the table lock knob(7), so the saw blades. Your saw is also equipped with blade table(1) can be tilted to the left and locked at adaptors that allow you to use a variety of any angle from 0°horizontal cutting position 127mm plain end blades.
  • Page 10 ADJUSTMENTS ATTACHING BLADE ADAPTORS TO PLAIN END This amount of pressure is required for most BLADES (Side Cutting) cutting operations and blades. Adjust one setscrew on each adaptor until it MAKING INTERIOR SCROLL CUT(Fig. 10) covers approximately half the hole.(Fig. 5) One of the features of this saw is that it can be Loosen the other setscrew just enough to slide one used to make scroll cuts on the interior of a board...
  • Page 11 ADJUSTMENTS MAINTENANCE LUBRICATION WARNING: Arm Bearings - Lubricate the arm bearings with oil after 10 hours of use. Re-oil after For your own safety, turn power switch every 50 hours of use or whenever there is a “OFF” and remove plug from power source squeak coming from the bearings.

  • Page 12: Operating The Flexible Shaft

    Always point the bit away from your When replacement is necessary, use original body. spare parts from authorized Ryobi service centre. Ensure that ventilation openings are kept clear Store the tool in a cool and well-ventilated area. when working in dust conditions. If it is necessary Keep the tool away from direct sunlight.
  • Page 13 '5!2!.4%%...
