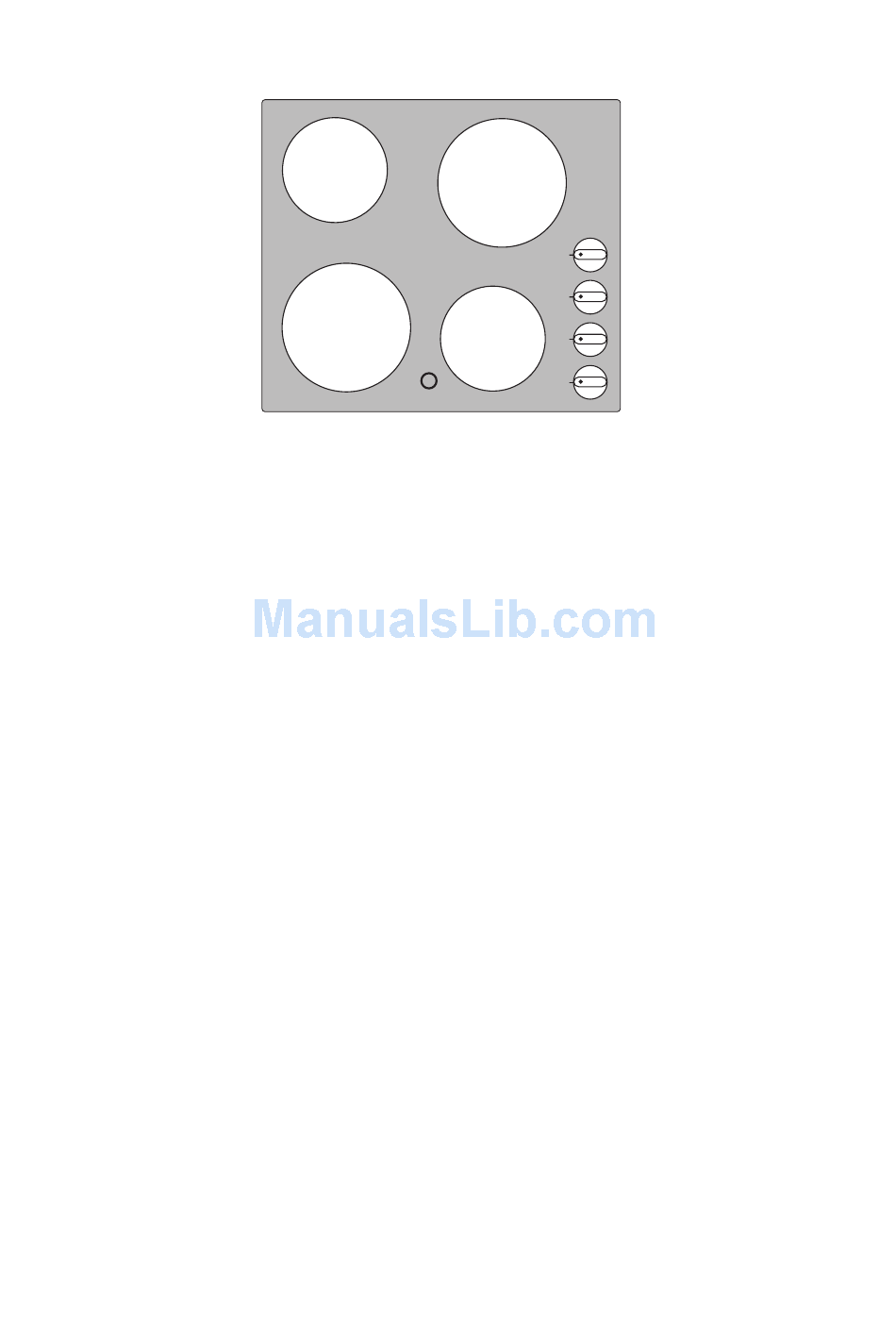

- Page 1 Installation and Operating Instructions CM 600 BLK Ceramic hob...
-
Page 2: Dear Customer
Dear Customer, Please read these user instructions carefully and keep them to refer to later. Pay particular attention to to the chapter "Safety In- structions". Please pass the user instructions on to any future owner of the appliance. The following symbols are used in the text: Safety instructions Warning! Notes that concern your personal... -
Page 3: Table Of Contents
Contents Operating Instructions ............. Safety instructions . -
Page 4: Operating Instructions
Operating Instructions Safety instructions Safety during use Please comply with these instructions. If you do not, any damage resulting is not covered • Remove stickers and film from the glass ceramic. by the warranty. • There is the risk of burns from the appliance if used carelessly. -
Page 5: Description Of The Appliance
Description of the Appliance Cooking surface layout Single cooking zone Single cooking zone 1200W 1700W Control Knobs Single cooking zone Residual heat indicator Single cooking zone 1200W 1700W... -
Page 6: Assignment Of Control Knobs
Assignment of control knobs Control Knobs The cooking power can be set anywhere between level 1 and 9. lowest power highest power Off position Residual heat indicator The residual heat indicator lights up, as soon as one cooking zone is hot. Caution Risk of burns from residual heat. -
Page 7: Operating The Appliance
Operating the appliance When a cooking zone is switched on, it may hum briefly. This is a characteristic of all ce- ramic glass cooking zones and does not im- pair either the function or the life of the appliance. Selecting the heat setting Heat setting Ring control knob Knob setting... -
Page 8: Tips On Cooking And Frying
Tips on cooking and frying Information about acrylamides According to the latest scientific research, in- tensive browning of food, especially in prod- ucts containing starch, may present a health risk due to acrylamide. Therefore we recom- mend cooking at low temperatures and not browning foods too much. -
Page 9: Examples Of Cooking Applications
Examples of cooking applications The information given in the following table is for guidance only. Heat Cooking suitable for Cook time Tips/Hints setting process Residual heat setting, Off position Keeping Keeping cooked foods warm as required Cover food warm Hollandaise sauce, Melting 5-25 mins. -
Page 10: Cleaning And Care
Cleaning and care Take care! Risk of burns from residual heat. Important Sharp objects and abrasive clean- ing materials will damage the appliance. Clean with water and washing up liquid. Important Residues from cleaning agents will damage the appliance. Remove residues with water and washing up liquid. -
Page 11: What To Do If
What to do if … Problem Possible cause Remedy The cooking zones are not func- The desired heat setting is not set. Set the heat setting. tioning. The fuse in the house’s electrical Check the fuse. wiring (fuse box) has been tripped. If the fuses trip a number of times, please call an authorised electri- cian. -
Page 12: Installation Instructions
Installation Instructions Important! The new appliance may only be in- stalled and connected by a registered spe- cialist. Please observe this instruction, otherwise the warranty will not cover any damage that may occur. Safety Instructions for the Installer • A device must be provided in the electrical installa- tion which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm... -
Page 13: Electrical Connection
Electrical Connection Before connecting, check that the nominal voltage of the appliance, that is the voltage stated on the rating plate, corresponds to the available supply voltage. The rating plate is located on the lower casing of the hob. The heating element voltage is AC230V~. The appli- ance also works perfectly on older networks with AC220V~. - Page 14 Connection Diagram For UK only: 230V...240V~...
-
Page 15: Assembly
Assembly... -
Page 17: Rating Plates
Rating Plates CM600BLK 949 591 393 PEE2011 230 V 50 Hz 5,8 kW CM600BLK 949 592 126 PEE2011 230 V 50 Hz 5,8 kW... -
Page 18: Warranty Conditions
Warranty conditions Standard guarantee conditions • This guarantee relates to you and cannot be trans- ferred to another user. We, Electrolux, undertake that if within 12 months of • Your new home is within the European Community the date of the purchase this Electrolux appliance or (EC) or European Free Trade Area. -
Page 19: Service And Spare Parts
Service and Spare Parts If the event of your appliance requiring service, or if you wish to purchase spare parts, please contact Service Force by telephoning: 0870 5 929 929 Your telephone call will be automatically routed to the Service Force Centre covering your post code ar- For the address of your local Service Force Centre and further information about Service Force, please visit the website at... - Page 20 822 924 941-B-041005-05 Subject to change without notice...
