One for All 3 Zapper User Manual & Code Book

URC-3505
700461
Ô
ZAPPER
Universal Remote
U S E R G U I D E & C O D E B O O K
R e t a i n F o r F u t u r e R e f e r e n c e
Setup Power
VCR
TV SAT
Programme +
Mute
Volume - Volume +
Programme -
Play
Rewind Fast Forward
Record Pause
Stop
Contents
ABOUT YOUR ZAPPER
Features and Functions Front Page
INSTALLING THE BATTERIES Front Page
SETTING UP THE ZAPPER Front Page
TROUBLE-SHOOTING
Searching For Your Code Front Page
Code Blink Out Front Page
Helpful Hints Front Page
Consumer Help-Line Front Page
ADVANCED OPERATION
Controlling Colour & Brightness Front Page
Punch-Through Back Page
SET-UP CODES Back Page
About Your ZAPPER
Thank you for purchasing the ONE FOR ALL 3 "ZAPPER" universal
remote control (URC-3505). Your ZAPPER package contains:
The ZAPPER Remote Control
THE ZAPPER User Guide & Code Book
The User Guide & Code Book explains in simple steps how to set up
and operate your new universal remote control. You may need this
guide again in the future, so please be sure to keep it.
Your ZAPPER needs two new "AAA/LRO3" batteries.
Your ZAPPER is designed to let you use one remote to operate your
Television, Video Recorder and Satellite Receiver/Cable Box.

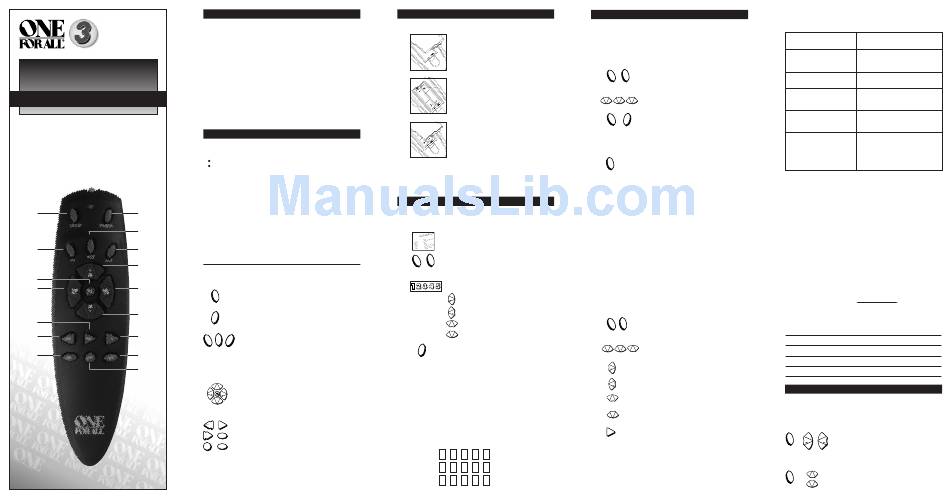

The illustration below and the chart on the next page describe the
features and functions of the ZAPPER universal remote control.
Features and Functions
Key Function
LED LED
The LED (Light Emitting Diode) flashes red to show
the remote is working.
SETUP
The SETUP key is used to set up your ZAPPER and to
access special features.
SETUP
Power
The Power key controls the same features as on your
original remote control.
POWER
Device Keys
The TV, VCR and SAT keys select the home
entertainment device to be controlled. For example,
TV VCR SAT SAT
pressing the TV key allows the remote to control the
functions of your Television. After pressing VCR, you
can operate your Video Recorder. After pressing SAT,
you can operate your Satellite Receiver or Cable
Converter.
Volume, Programme +/ - , Mute
+
CH The Volume, Programme and Mute keys control the
VOL VOL
most frequently used functions of your devices. They
CH operate just as those on your original remote control.
-
These keys are also used to set up the Zapper for your
device.
Video Recorder Keys
REW PLAY
After pressing the VCR key, the Video Recorder keys
operate the functions of your Video Recorder.
FF
PAUSE
To prevent accidental recording, the Record key must
be pressed twice.
STOP REC
Installing The Batteries
The ZAPPER needs two new AAA/LRO3 alkaline batteries.
1 Remove the battery cover from the back of
the ZAPPER.
2 Match the batteries to the +/- marks inside
the battery case, then insert the batteries.
3 Press the battery cover back into place.
Important note:
- In order to avoid having to reprogramme your ZAPPER after you
remove the batteries, you will need to insert new batteries within
15 minutes. Also, it is best that you do not use rechargeable
batteries.
Setting Up The ZAPPER
To set up the ZAPPER for your Television:
1
Turn on your TV (or VCR or SAT).
Find your Television code in the Set-Up Code
2
section (see reverse). Codes are listed by brand
name. The most popular codes are listed first.
Press and release the TV (or VCR or SAT) key
3
on the ZAPPER. Then press and hold the
SETUP key until the light blinks twice (the light
TV SETUP
will blink once, then twice).
4 Enter your 5-digit code according to the
, , , , , , , , , , , , , , , , chart below. The red light will blink twice.
Volume+ = 1
VOL
Volume- = 2
VOL
+ Programme+ = 3
CH
CH Programme- = 4
-
5 Now, aim the ZAPPER at your Television and
press POWER. If your Television switches off,
your ZAPPER is ready to operate your
POWER
Television.
Important notes:
- To set up your Video Recorder or Satellite Receiver, follow the same
instructions above, only press the VCR or SAT key during step 3.
- To set up your Cable Box, follow the instructions above by
pressing the SAT key during step 3.
- If your device does not respond, follow steps 1-5 with each code
listed for your brand. If none of the codes listed for your brand
operate your device, follow the Search Method described in the
next section. The Search Method can be used even if your brand
is not listed at all.
- Remember, to control your device after you have programmed it
with the ZAPPER, you must press the device key first (TV, VCR or SAT).
- Write the codes for your TV, VCR and Satellite/Cable in the boxes
provided for easy future reference.
TV Code
VCR Code
SAT/Cable Code
Trouble-Shooting
Searching for Your Code
If your TV, VCR, Satellite or Cable Box does not respond to the
ZAPPER after trying all the codes listed for your brand, try searching
for your code:
1 Turn on your TV (VCR or SAT).
2 Press the TV (or VCR or SAT) key on the ZAPPER.
Then, press and hold the SETUP key until the
light blinks twice (the light will blink once,
TV SETUP
then twice).
3 Next, press the Programme- key three times.
CH CH CH
- - -
4 Alternate between TV and POWER until your
Television turns off (or between VCR or SAT
and POWER until your device turns off).
TV POWER
You may have to press these keys many times,
so be patient. Remember, you must aim the
ZAPPER at your device the entire time you are
searching for your code.
5 When your device turns off, press and release
SETUP. Don't forget, press SETUP as soon as
your device turns off.
SETUP
The ZAPPER is now ready to run your device. When you want to
control your device, press the device key first.
Important notes:
- To search for the code for your Video Recorder, Satellite or Cable
Box, follow the same instructions above, only press the VCR or
SAT key during steps 2 and 4.
- If your Video's original remote control does not have a power
key, press PLAY instead of POWER when searching for your code.
- During step 4, you may have to press these keys many times (up
to 150!), so be patient. Remember, you must aim the ZAPPER at
your device the entire time you are searching for your code.
Code Blink Out
After you have used the Search Method, you can find out which
code the ZAPPER is using by blinking back the code. It's handy to
know your Television, Video, Satellite or Cable code for future
reference. Remember, you can only blink back your code after the
ZAPPER is operating your TV, VCR, Satellite or Cable Box.
To blink out your code:
1 Press the TV (or VCR or SAT) key on the ZAPPER.
Then, press and hold the SETUP key until the
light blinks twice (the light will blink once,
TV SETUP
then twice).
2
Next, press Programme-, Programme-,
CH CH +
- -
CH
Programme+.
3 For the first digit of your 5-digit code, press
VOL
Volume+ and count the red blinks.
4 For the second digit, press Volume- and count
VOL the red blinks.
5 For the third digit, press Programme+ and
+
CH
count the red blinks.
6 For the fourth digit, press Programme- and
CH
-
count the red blinks.
7
For the fifth digit, press PLAY and count the
PLAY
red blinks.
Now you have your 5-digit code. Write your code in the boxes
provided previously for easy future reference.
Important notes:
- To blink out the code for your Video Recorder, Satellite Receiver
or Cable Box, follow the same instructions above, only press the
VCR or SAT key during step 1.
Helpful Hints
Problem: Solution:
Red light does not blink Replace batteries with 2 fresh,
when you press a key? new AAA/LR03 alkaline batteries.
The ONE FOR ALL does not Make sure you are using new
respond after pressing a batteries and are aiming the ONE
key? FOR ALL at your device.
The ONE FOR ALL does not A) Try all the codes listed for your
operate your device? brand. B) Try the search method.
Your brand is not listed in Try the search method.
the ONE FOR ALL code
section?
The ONE FOR ALL is not You may be using the wrong code.
performing commands Start the search method over
properly? again to locate the proper code.
Your TV switches to Press TV, then press SETUP until
programme 1 when you the light blinks twice.
press the power key before Then press:
switching off, OR you must (Programme-)
press Power twice to switch (Programme+)
on your TV? (Programme-)
Consumer Help-Line
If you have any questions about the operation of your new ONE
FOR ALL Universal Remote Control, you may call our consumer help-
line for assistance. Before calling, please read this manual carefully
to find the answer to your question. If you cannot find a solution in
this manual, please complete the information below on all your
equipment before calling. This way we can better serve you.
In the UK: phone: 0800 - 966 194
fax: +31 53 432 9816
e-mail: ofahelp@ueic.com
Mon-Fri: 11:00-7:00
In Ireland: phone: 1-800 553 118
fax: +31 53 4329816
e-mail: ofahelp@ueic.com
Mon-Fri: 10:00-20:00
Sat: 10:00-16:00
In Australia: phone: 1-800 064 472
e-mail: ofahelp@ueic.com
Your ONE FOR ALL model number: URC-3505
Date of purchase: day/month/year
day/month/year
Your device:
(The first row is an example of how to complete this table)
TYPE BRAND MODEL NR. REMOTE MODEL NR.
TV Sony KVX-2950B RMT-V131B
Advanced Operation
Controlling Colour & Brightness
Depending on the functions of your original remote control, the ZAPPER
can operate the colour and brightness settings of your Television.
To adjust the colour:
Press SETUP followed by Volume+ (for colour
VOL VOL
up) or Volume- (for colour down).
SETUP
To adjust the brightness:
+
CH Press SETUP followed by Programme+ (for
brightness up) or Programme- (for brightness
CH
-
SETUP
down).
