x450_Basic.book 2 ページ 2004年8月2日 月曜日 午前9時36分 CONTENTS GETTING STARTED ......4 MENU FUNCTIONS ......18 SHOOTING.
Page 3
Reference Manual on the CD-ROM. For customers in North and South America For customers in USA Declaration of Conformity Model Number : D-535 ZOOM/C-370 ZOOM/X-450 Trade Name : OLYMPUS Responsible Party Address : Two Corporate Center Drive, PO Box 9058, Melville, New York 11747-9058 U.S.A.

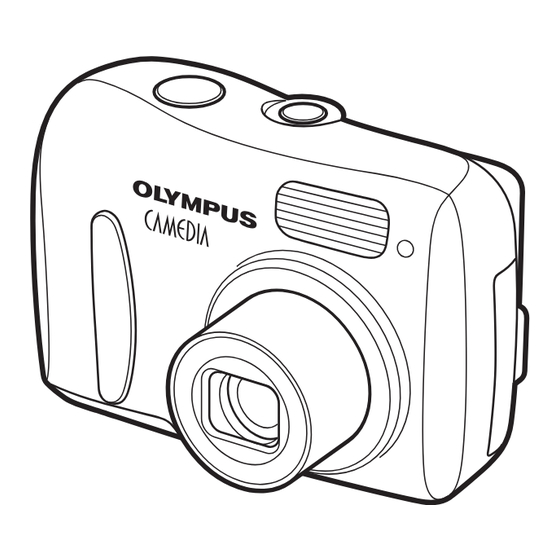

x450_Basic.book 4 ページ 2004年8月2日 月曜日 午前9時36分 GETTING STARTED NAMES OF PARTS Shutter button Power switch Flash Self-timer lamp Lens VIDEO OUT jack Extends automatically when the power switch is pressed. Connector cover Battery compartment/ card cover USB connector Tripod socket DC-IN jack Lock button 4 En...
Page 5
x450_Basic.book 5 ページ 2004年8月2日 月曜日 午前9時36分 Monitor Shooting button ( Orange lamp Green lamp Playback button ( Zoom button (W/T• Strap eyelet Erase button Mode dial Menu button ( Arrow pad Flash mode button ( Arrow pad Buttons on the arrow pad have their respective functions. They are also used as direction buttons.
x450_Basic.book 8 ページ 2004年8月2日 月曜日 午前9時36分 Battery check If the remaining battery power is low, the battery check indication on the monitor changes as follows while the camera is turned on. Lit (Green) Blinks (Red) The green lamp and the orange (The indicator turns lamp on the camera blink.
x450_Basic.book 9 ページ 2004年8月2日 月曜日 午前9時36分 ATTACHING THE STRAP Thread the short end of the strap through the strap eyelet. Thread the long end of the strap through the loop that has already gone through the eyelet. Pull the strap tight, making Strap eyelet sure that it is securely fastened and does not come...
Page 10
x450_Basic.book 10 ページ 2004年8月2日 月曜日 午前9時36分 Holding the lock button, slide Lock button the battery compartment/card cover in the direction of , and then lift it in the direction of • Use the ball of your finger to slide the cover. Do not use your fingernail as this could result in injury.
x450_Basic.book 11 ページ 2004年8月2日 月曜日 午前9時36分 ABOUT THE INTERNAL MEMORY AND THE CARD Images taken are stored in the internal memory. You can also use an optional xD-Picture Card (referred to as “card” in this manual) to store images. The card has greater capacity than the internal memory, and so, is able to store more images.
Page 12
x450_Basic.book 12 ページ 2004年8月2日 月曜日 午前9時36分 INSERTING A CARD (OPTIONAL) An optional card (xD-Picture Card) is available for this camera. Make sure the camera is turned Orange lamp off. • The monitor is off. • The green lamp and the orange lamp on the camera are off.
Page 13
x450_Basic.book 13 ページ 2004年8月2日 月曜日 午前9時36分 Removing the card Push the card all the way in to unlock it, and let it return slowly. • The card is ejected a short way and then stops. Note Releasing your finger quickly after pushing the card all the way in may cause it to eject forcefully out of the slot.
Page 14
x450_Basic.book 14 ページ 2004年8月2日 月曜日 午前9時36分 TURNING THE POWER ON/OFF Power on: Press the power switch. The lens extends and the subject is displayed on the monitor. The orange lamp lights. The camera is ready for shooting (shooting mode). Power switch Orange lamp Power off: Press the power switch.
Page 15
x450_Basic.book 15 ページ 2004年8月2日 月曜日 午前9時36分 Switching between the shooting mode and the playback mode Shooting button ( Shutter button Orange lamp Green lamp Playback button ( Switching to the shooting Switching to the playback mode (Shooting mode) mode (Playback mode) Press the Press the the shutter button.
x450_Basic.book 16 ページ 2004年8月2日 月曜日 午前9時36分 SELECTING A LANGUAGE Press the power switch. • The camera turns on in the shooting mode. • The lens extends and the monitor turns on. • The orange lamp lights. Press • The menu screen is displayed. Press on the arrow pad to select [ •...
Page 17
x450_Basic.book 17 ページ 2004年8月2日 月曜日 午前9時36分 Press to set the year, and press to move to the month setting. • To move back to the previous setting, press • The first two digits of the year are fixed. Repeat this procedure until the date and time are completely set.
x450_Basic.book 18 ページ 2004年8月2日 月曜日 午前9時36分 MENU FUNCTIONS HOW TO USE THE MENUS When you turn on the camera and press , the menu is displayed on the monitor. From this menu, you can configure various settings of the camera. Press to display the menu. Menu button ( OK button ( Arrow pad (...
x450_Basic.book 19 ページ 2004年8月2日 月曜日 午前9時36分 MENUS Shooting mode Sets the image quality and resolution. Still picture : [SHQ], [HQ], [SQ1], [SQ2] Movie [HQ], [SQ] Copies images stored in the internal memory to the BACKUP card. This setting is not available when the card is not inserted.
Page 20
x450_Basic.book 20 ページ 2004年8月2日 月曜日 午前9時36分 Playback mode Runs through all saved pictures one after another. Select a single slide show with [ ] or, [ ] for a continuous slide show. Copies images stored in the internal memory to the BACKUP card.
x450_Basic.book 21 ページ 2004年8月2日 月曜日 午前9時36分 SHOOTING SHOOTING MODE This camera allows you to take still pictures and record movies. To take still pictures, use the mode dial to select one of the shooting modes. Each mode already has the optimal settings for its purpose and conditions. You can change the mode with the camera turned on.
Page 22
x450_Basic.book 22 ページ 2004年8月2日 月曜日 午前9時36分 SELF PORTRAIT Enables you to take a picture of yourself while holding the camera. Point the lens at yourself and the focus will be locked on you. The camera automatically sets the optimal shooting conditions. The zoom is fixed in the wide position and cannot be changed.
x450_Basic.book 23 ページ 2004年8月2日 月曜日 午前9時36分 TAKING STILL PICTURES You can take still pictures simply by pressing the shutter button as you look at the monitor. The recorded picture will be stored on the card if you have inserted one, or in the internal memory if you have not inserted a card.
x450_Basic.book 24 ページ 2004年8月2日 月曜日 午前9時36分 IF CORRECT FOCUS CANNOT BE OBTAINED (FOCUS LOCK) When the subject to be focused is not on the AF target mark (not positioned in the center of the composition), you can use the following steps to obtain the correct focus on the subject.
x450_Basic.book 25 ページ 2004年8月2日 月曜日 午前9時36分 RECORDING MOVIES You can record movies with this camera. You can playback the recorded movies with this camera. Sound can not be recorded. The focus and zoom are locked. If the distance to the subject changes, focus may be compromised.
x450_Basic.book 26 ページ 2004年8月2日 月曜日 午前9時36分 ZOOMING IN ON A SUBJECT Telephoto and wide-angle shooting are possible at 3x magnification (the optical zoom limit, equivalent to 38 mm – 114 mm on a 35 mm camera). By combining the optical zoom with the digital zoom, zoom magnification can be increased to a maximum of approximately 12x.
x450_Basic.book 27 ページ 2004年8月2日 月曜日 午前9時36分 USING THE FLASH Press the power switch. • The camera turns on in the shooting mode. • The lens extends and the monitor turns on. • The orange lamp lights. Press flash mode button ( • Flash setting screen is displayed. Press to select the flash mode, and press •...
x450_Basic.book 28 ページ 2004年8月2日 月曜日 午前9時36分 MACRO MODE SHOOTING Macro shooting ( Use when shooting subjects close to you (W: 20 cm to 50 cm (0.7 ft. to 1.6 ft.)/T: 50 cm to 90 cm 1.6 ft. to 3.0 ft.)). Super macro shooting ( Use when shooting subjects as close as 2 cm/0.8".
x450_Basic.book 29 ページ 2004年8月2日 月曜日 午前9時36分 USING THE SELF-TIMER This function is useful for taking pictures where you want to be included in the photograph. Fix the camera securely on a tripod or set it on a level surface for self-timer shooting. Press the power switch.
x450_Basic.book 30 ページ 2004年8月2日 月曜日 午前9時36分 VARYING THE IMAGE BRIGHTNESS (EXPOSURE COMPENSATION) This function allows you to make fine changes to the automatic exposure setting. You can adjust the exposure in the range of ±2.0 in 1/3EV steps. When the setting is changed, you can check the result on the monitor. Press the power switch.
x450_Basic.book 31 ページ 2004年8月2日 月曜日 午前9時36分 PLAYBACK VIEWING STILL PICTURES When the card is inserted, the images stored on the card are displayed. To display the images stored in the internal memory, remove the card. Press the power switch to turn the camera on, and press •...
x450_Basic.book 32 ページ 2004年8月2日 月曜日 午前9時36分 CLOSE-UP PLAYBACK Pictures displayed on the monitor can be enlarged in steps up to 4 times the original size. Press the power switch to turn the camera on, and press • Playback mode is set. • The green lamp on the camera lights. Use the arrow pad to select the still picture you want to enlarge.
x450_Basic.book 33 ページ 2004年8月2日 月曜日 午前9時36分 VIEWING MOVIES Press the power switch to turn the camera on, and press • Playback mode is set. • The green lamp on the camera lights. Use the arrow pad to display the picture with Press •...
x450_Basic.book 34 ページ 2004年8月2日 月曜日 午前9時36分 ERASING PICTURES This function enables the camera to erase the recorded pictures. The “single- frame erase” function erases only the current frame on the screen. The “all- frame erase” function erases all frames stored in the internal memory or on the card.
x450_Basic.book 35 ページ 2004年8月2日 月曜日 午前9時36分 PRINT RESERVATION/DIRECT PRINT WITH PRINT RESERVATION (DPOF) DPOF is short for Digital Print Order Format. DPOF is the format used to record automatic print information from digital cameras. Only the images stored on the card can be reserved to print. Insert the card recording the images into the camera before making print reservation.
DOWNLOADING PICTURES TO A COMPUTER For editing, and managing image files using with personal computer, install the OLYMPUS Master software on the CD-ROM supplied with the camera. After install the OLYMPUS Master software, connect the camera to the personal computer with USB cable for downloading the images taken by the camera.
x450_Basic.book 37 ページ 2004年8月2日 月曜日 午前9時36分 ERROR CODES Monitor Possible cause Corrective action indication The card is not inserted, Insert a card or insert a different card. or it cannot be recognized. If the problem persists, format the card. NO CARD If the card cannot be formatted, it cannot be used.
Image pickup device : 1/2.7" CCD solid-state image pickup, 3,340,000 pixels (gross) Lens : Olympus lens 5.8 mm to 17.4 mm, f2.9 to 5.0 (equivalent to 38 mm to 114 mm lens on 35 mm camera) Photometric system : Center-weighted metering Shutter speed : 1 to 1/2000 sec.
Page 39
x450_Basic.book 39 ページ 2004年8月2日 月曜日 午前9時36分 Operating environment Temperature : 0°C to 40°C (32°F to 104°F) (operation) -20°C to 60°C (-4°F to 140°F) (storage) Humidity : 30% to 90% (operation) 10% to 90% (storage) Power supply : 2 AA (R6) alkaline batteries or NiMH batteries. AC adapter (optional) Manganese (zinc-carbon) batteries and lithium battery packs (CR-V3) cannot be...
