OWNER'S MANUAL
XVZ13TFX(C)
XVZ13TFSX(C)
LIT-11626-21-42
2C9-28199-12

Advertisement

Table of Contents
loading

Related Manuals for Yamaha Royal Star Venture XVZ13TFX

Summary of Contents for Yamaha Royal Star Venture XVZ13TFX

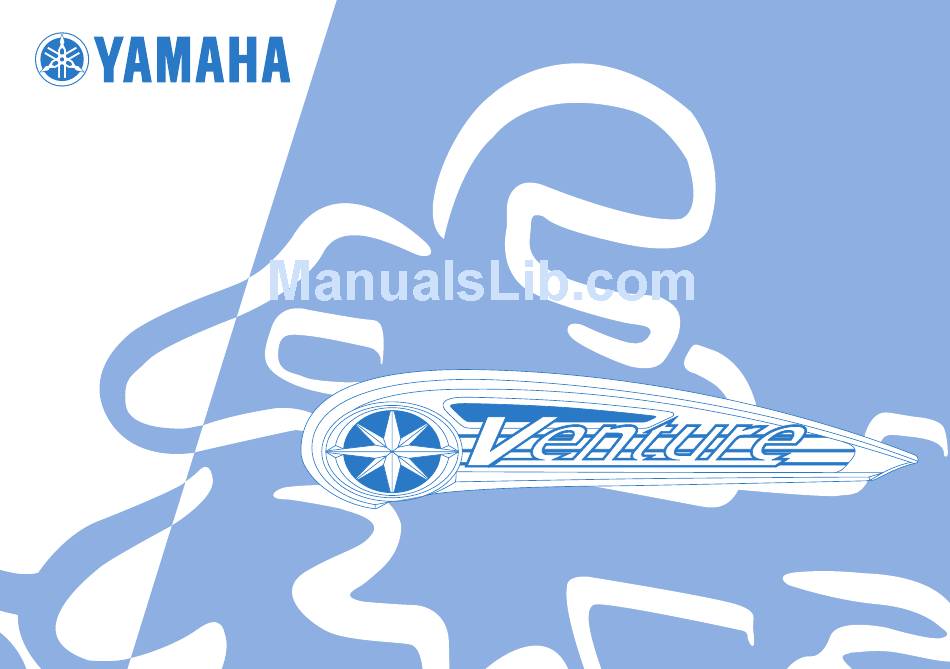

  • Page 1 OWNER’S MANUAL XVZ13TFX(C) XVZ13TFSX(C) LIT-11626-21-42 2C9-28199-12...
  • Page 2 EAU10041...
  • Page 3 Yamaha has met these standards without reducing the performance or economy of operation of the motorcycle. To maintain these high standards, it is important that you and your Yamaha dealer pay close attention to the recommended maintenance schedules and operating instructions contained within this manual.

  • Page 4: Important Manual Information

    This manual should be considered a permanent part of this motorcycle and should remain with it even if the motorcycle is subsequently sold. Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most current product information available at the time of printing, there may be minor discrepancies between your motorcycle and this manual.
  • Page 5 IMPORTANT MANUAL INFORMATION AND UNTIL YOU HAVE BEEN TRAINED IN SAFE AND PROPER RIDING TECHNIQUES. REGULAR INSPECTIONS AND CAREFUL MAINTENANCE, ALONG WITH GOOD RIDING SKILLS, WILL ENSURE THAT YOU SAFELY ENJOY THE CAPABILITIES AND THE RELIABILITY OF THIS MOTORCYCLE. *Product and specifications are subject to change without notice.
  • Page 6 IMPORTANT MANUAL INFORMATION EAU10192 AFFIX DEALER LABEL HERE XVZ13TFX(C)/XVZ13TFSX(C) OWNER’S MANUAL ©2007 by Yamaha Motor Corporation, U.S.A. 1st edition, May 2007 All rights reserved. Any reprinting or unauthorized use without the written permission of Yamaha Motor Corporation, U.S.A. is expressly prohibited.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION ....1-1 Sidestand ........3-18 PERIODIC MAINTENANCE AND Location of important labels ...1-5 Ignition circuit cut-off system ..3-19 MINOR REPAIR ......... 7-1 Auxiliary DC jack and PERIODIC MAINTENANCE ... 7-1 DESCRIPTION ........2-1 connector ........3-21 Owner’s tool kit .......
  • Page 8 Reporting safety defects ....10-3 brake and shift pedals ....7-28 Motorcycle noise regulation ..10-4 Checking and lubricating the Maintenance record ..... 10-5 brake and clutch levers .....7-29 YAMAHA MOTOR Checking and lubricating the CORPORATION, U.S.A. ® sidestand ........7-29 ROYAL STAR™ VENTURE Lubricating the swingarm pivots ...7-30...

  • Page 9: Safety Information

    SAFETY INFORMATION EAU10251 AND/OR WHEN MADE NECES- • Ride where other motorists can SARY BY MECHANICAL CONDI- see you. Avoid riding in another MOTORCYCLES SINGLE TIONS. motorist’s blind spot. TRACK VEHICLES. THEIR SAFE USE Many motorcycle accidents in- AND OPERATION ARE DEPENDENT Safe riding volve inexperienced operators.
  • Page 10 Modifications made to this motorcycle other motorists can see you. the single most critical factor in the pre- not approved by Yamaha, or the re- The posture of the operator and vention or reduction of head injuries. moval of original equipment, may ren- passenger is important for proper Always wear an approved helmet.
  • Page 11 Maximum load: been specifically designed for use on create instability due to improper 190 kg (419 lb) this motorcycle. Since Yamaha cannot weight distribution or aerody- test all other accessories that may be namic changes. If accessories When loading within this weight limit,...
  • Page 12 SAFETY INFORMATION tor and may limit control ability, Always turn the engine off before eyes, see your doctor immediately. therefore, such accessories are leaving the motorcycle unattended If any gasoline spills on your skin not recommended. and remove the key from the main or clothing, immediately wash the Use caution when adding electri- switch.

  • Page 13: Location Of Important Labels

    SAFETY INFORMATION EAU10381 Location of important labels Please read the following important labels carefully before operating this vehicle.
  • Page 14 SAFETY INFORMATION CAUTION Cleaning with alkaline or acid cleaner, gasoline or solvent will damage windshield. Use neutral detergent. 5JW-00 (5JW-2835Y-00) 4 CALIFORNIA ONLY...

  • Page 15: Description

    DESCRIPTION EAU10410 Left view 1. Shift pedal (page 3-9) 9. Helmet holder (page 3-14) 2. Starter (choke) knob (page 3-12) 10.Tail/brake light (page 7-36) 3. Fuel tank cap (page 3-10) 11.Rear turn signal light (page 7-36) 4. Fuel cock (page 3-11) 5.

  • Page 16: Right View

    DESCRIPTION EAU10420 Right view 1. Muffler 9. Front fork air valve (page 3-16) 2. Owner’s tool kit (page 7-1) 10.Headlight (page 7-35) 3. Helmet holder (page 3-14) 11.Front turn signal/position lights (page 7-36) 4. Travel trunk (page 3-14) 12.Fuse box 1 (page 7-33) 5.

  • Page 17: Controls And Instruments

    DESCRIPTION EAU10430 Controls and instruments 1. Clutch lever (page 3-8) 9. Brake lever (page 3-9) 2. Audio system/CB radio control unit (page 4-3) 3. Left handlebar switches (page 3-7) 4. Rider headset jack (page 4-2) 5. Speedometer unit (page 3-4) 6.

  • Page 18: Instrument And Control Functions

    INSTRUMENT AND CONTROL FUNCTIONS EAU10460 EAU10680 To unlock the steering Main switch/steering lock LOCK The steering is locked, and all electrical systems are off. The key can be re- moved. To lock the steering 1. Push. 2. Turn. The main switch/steering lock controls the ignition and lighting systems, and is Push the key in, and then turn it to used to lock the steering.

  • Page 19: Indicator And Warning Lights

    INSTRUMENT AND CONTROL FUNCTIONS EAU10951 EAU11003 ACC (Accessory) Indicator and warning lights The audio system and the auxiliary DC jack and connector can be used in this position. Do not use the accessory po- sition for an extended period of time, otherwise the battery may discharge.
  • Page 20 When this occurs, Yamaha dealer check the electri- The electrical circuit of the warning light have a Yamaha dealer check the self- cal circuit. diagnosis system. can be checked according to the follow-...

  • Page 21: Speedometer Unit

    INSTRUMENT AND CONTROL FUNCTIONS EAU36400 a clock Speedometer unit NOTE: a fuel meter After resetting the fuel reserve tripme- ter, the display will return to the prior Odometer and tripmeter modes mode. Pushing the “SELECT” button switches the display between the odometer mode “ODO”...

  • Page 22: Cruise Control System

    To activate and set the cruise control will start flashing. If this occurs, have a system: Yamaha dealer check the electrical cir- 1. Push the “CRUISE” switch to the cuit. left. The “ON” indicator light will...
  • Page 23 2. “RES” indicator light Push the “CANCEL” switch to manually this occurs, turn the cruise control 3. “ON” indicator light deactivate cruise control. system off and have a Yamaha deal- er check it. NOTE: NOTE: Pressing the cruise control switch once...

  • Page 24: Handlebar Switches

    INSTRUMENT AND CONTROL FUNCTIONS EAU12347 Right EAU12430 Handlebar switches Turn signal switch “ ” To signal a right-hand turn, push this Left switch to “ ”. To signal a left-hand turn, push this switch to “ ”. When re- leased, the switch returns to the center position.

  • Page 25: Clutch Lever

    INSTRUMENT AND CONTROL FUNCTIONS EAU12660 The hazard lights are used in case of EAU12820 Engine stop switch “ ” Clutch lever an emergency or to warn other drivers Set this switch to “ ” before starting when your vehicle is stopped where it the engine.

  • Page 26: Shift Pedal

    INSTRUMENT AND CONTROL FUNCTIONS EAU12880 EAU12890 EAU12941 Shift pedal Brake lever Brake pedal 1. Shift pedal 1. Brake lever 1. Brake pedal The shift pedal is located on the left The brake lever is located at the right The brake pedal is on the right side of side of the engine and is used in com- handlebar grip.

  • Page 27: Fuel Tank Cap

    INSTRUMENT AND CONTROL FUNCTIONS EAU13120 EAU13211 Fuel tank cap NOTE: Fuel The fuel tank cap cannot be installed unless the key is in the lock. In addition, the key cannot be removed if the cap is not properly installed and locked. EWA10130 WARNING Make sure that the fuel tank cap is...

  • Page 28: Fuel Cock

    10%. Gasohol UNLEADED GASOLINE ONLY containing methanol is not recom- Fuel tank capacity: mended by Yamaha because it can 22.5 L (5.94 US gal) (4.95 Imp.gal) cause damage to the fuel system or ve- Fuel reserve amount: hicle performance problems.

  • Page 29: Starter (Choke) Knob

    INSTRUMENT AND CONTROL FUNCTIONS This indicates reserve. With the fuel EAU13600 Starter (choke) knob “ ” cock lever in this position, the fuel re- serve is made available. Turn the fuel cock lever to this position if you run out of fuel while riding.

  • Page 30: Locking The Steering With A Padlock

    INSTRUMENT AND CONTROL FUNCTIONS EAU13780 EAU14240 Locking the steering with a Rider seat padlock To remove the rider seat Remove the nuts, and then pull the rid- er seat up. 1. Projection 2. Seat holder NOTE: In addition to the main switch/steering Make sure that the rider seat is properly lock, there are brackets on the right secured before riding.

  • Page 31: Helmet Holders

    INSTRUMENT AND CONTROL FUNCTIONS EAU14360 To close a helmet holder EAU14631 Helmet holders Sidecases and travel trunk Place the helmet holder in the original EWA11081 position, and then remove the key. WARNING EWA11040 Improper loading or overloading can WARNING cause loss of control and possibly Never ride with a helmet attached to an accident or personal injury.
  • Page 32 INSTRUMENT AND CONTROL FUNCTIONS er conditions may make it nec- essary to further reduce the riding speed. Sidecases To open a sidecase 1. Insert the key into the lock, turn it counterclockwise, and then push it 1. Storage compartment 1. Travel trunk lock 2.

  • Page 33: Adjusting The Front Fork

    INSTRUMENT AND CONTROL FUNCTIONS ECA10910 EAU14651 Adjusting the front fork CAUTION: This front fork is equipped with air Do not apply excessive pressure on valves for adjusting the spring rate. the travel trunk lid when it is open. EWA10180 WARNING To close the travel trunk Always adjust both fork legs equal- 1.

  • Page 34: Adjusting The Shock Absorber Assembly

    A low-pressure air gauge is This shock absorber assembly is available at a Yamaha dealer. equipped with an air valve for adjusting 4. To increase the spring rate and the spring rate. thereby harden the suspension, in-...

  • Page 35: Sidestand

    INSTRUMENT AND CONTROL FUNCTIONS EAU15301 below and have a Yamaha dealer re- Spring rate: Sidestand pair it if it does not function proper- Minimum (soft): The sidestand is located on the left side Air pressure = 0 kPa (0 psi) (0 of the frame.

  • Page 36: Ignition Circuit Cut-Off System

    Periodically check the operation of the ignition circuit cut-off system according to the following procedure. EWA10250 WARNING If a malfunction is noted, have a Yamaha dealer check the system be- fore riding. 3-19...
  • Page 37 5. Push the start switch. Does the engine start? The neutral switch may be defective. The motorcycle should not be ridden until checked by a Yamaha dealer. With the engine still running: 6. Move the sidestand up. 7. Keep the clutch lever pulled.

  • Page 38: Auxiliary Dc Jack And Connector

    INSTRUMENT AND CONTROL FUNCTIONS EAU15412 12-V accessories connected to the Auxiliary DC jack and connec- auxiliary DC jack at the front and auxil- iary DC connector under the rider seat can be used when the key is in the “ACC” or “ON” position. ECA11031 CAUTION: The accessories connected to the...

  • Page 39: Audio System And Cb Radio

    AUDIO SYSTEM AND CB RADIO EAU15440 Location of parts 1. Audio system/CB radio control unit 7. Cassette deck compartment 2. Front speaker 8. Auxiliary audio input jack 3. Rider headset jack 9. Rear speaker 4. Cassette deck lid 10.Passenger volume control knob 5.

  • Page 40: Headsets (Optional)

    When cleaning the control unit sion, a headset is necessary; however, display, use a neutral detergent. CB reception is possible without a Never strong abrasive headset. For intercom use, two head- cleaning products, fuel (gaso- sets are necessary. Consult a Yamaha line), thinner, etc.

  • Page 41: Control Unit

    AUDIO SYSTEM AND CB RADIO EAU15462 Selecting a track on the optional Control unit CD changer (Tape) Selecting a CB channel Adjusting the CB squelch level (Auxiliary (CD changer*) Tuning in a radio station manually audio source) Adjusting the intercom volume * The CD mode appears in the display only Changing the settings in a mode when the optional CD changer is installed.

  • Page 42: Making Basic Settings

    AUDIO SYSTEM AND CB RADIO Audio system Long push (one second or more) EAU15480 Making basic settings Turning off the CB radio BASS TREB SP/HS (Output) (Treble) (Fade ) Turning on/off the audio system Radio frequency (Auto (Intercom volume) volume) This mode does not appear in the display when the headsets are selected as the output.
  • Page 43 AUDIO SYSTEM AND CB RADIO Adjusting the audio system volume Turning on/off the CB radio be set between “0” and “20”. After the adjustment is made, the CB radio re- turns to normal operation and the CB channel appears in the display. 1.

  • Page 44: Making Mode Settings

    AUDIO SYSTEM AND CB RADIO EAU15502 Audio system Selecting the output (speakers or Making mode settings headsets) BASS TREB SP/HS (Output) (Treble) (Fade ) General procedure The following setting procedure applies Radio to the audio system, CB radio, and op- frequency (Auto (Intercom...
  • Page 45 AUDIO SYSTEM AND CB RADIO Adjusting the bass level Adjusting the treble level Adjusting the fade level (balance be- tween front and rear speakers) 1. Repeatedly push the “SELECT” 1. Repeatedly push the “SELECT” button for less than one second button for less than one second 1.
  • Page 46 AUDIO SYSTEM AND CB RADIO Adjusting the auto volume Turning on/off the CB roger beep NOTE: When the fade level is set to “0”, the front and rear speaker levels are the same. Adjusting the intercom volume When riding the vehicle, external noise 1.

  • Page 47: Cassette Deck Operation

    AUDIO SYSTEM AND CB RADIO EAU15520 EWA11380 To clean the tape head, use a Cassette deck operation WARNING de-magnetizing cleaning cas- It is dangerous to operate the sette, but be sure to turn the vol- ume all the way down to avoid cassette deck while riding.
  • Page 48 AUDIO SYSTEM AND CB RADIO Skipping songs Changing the tape play direction NOTE: The maximum number of songs that can be skipped in either direc- tion is 9. To stop skipping songs, push the up/down switch in the opposite di- rection that songs are being skipped.

  • Page 49: Radio Operation

    AUDIO SYSTEM AND CB RADIO Turning on/off the Dolby noise re- Ejecting the cassette tape EAU15533 Radio operation duction system 1. Eject (“ ”) button 1. Radio antenna While the cassette tape is playing, push Push the eject (“ ”) button to eject the the eject (“...
  • Page 50 AUDIO SYSTEM AND CB RADIO EWA11390 Selecting a frequency band WARNING (Tape) It is dangerous to operate the ra- dio while riding. Never take your (Auxiliary (CD changer*) hands off the handlebars while audio source) riding. * The CD mode appears in the display only Keep the volume at a low when the optional CD changer is installed.
  • Page 51 AUDIO SYSTEM AND CB RADIO tunes in the first station that has a played. The frequency changes in Programming preset radio stations strong enough signal to be re- 0.2-MHz steps for FM and in 10- manually ceived. kHz steps for AM. Tuning in a radio station manually Tuning in a preset radio station Up to six stations can be programmed...
  • Page 52 AUDIO SYSTEM AND CB RADIO 3. Repeatedly push either side of the 3. Push either side of the up/down Up to six stations can be programmed up/down switch for less than one switch once for one second or automatically for each frequency band second until the desired preset more to tune in a station automati- (FM1, FM2, FM3, and AM) as follows.

  • Page 53: Optional Cd Changer Operation

    Selecting a CD An optional six-disc CD changer can be mounted in the travel trunk. Ask a Yamaha dealer to install the genuine Clarion CDC635 model. Playing a CD Repeatedly push either side of the...

  • Page 54: Cb Radio Operation

    AUDIO SYSTEM AND CB RADIO Selecting a CD track EAU15550 EWA11410 CB radio operation WARNING Repeatedly push either side of the up/down switch for less than one sec- It is dangerous to change CB ra- ond until the number for the desired CD dio channels or adjust the vol- track appears in the display.
  • Page 55 AUDIO SYSTEM AND CB RADIO The Citizens Band Radio Service is lessening of the operating privileges or 1. Make sure that the CB radio is under the jurisdiction of the Federal responsibilities of CB users. An opera- turned on and is selected. (See Communications Commission tor of a CB radio station is still required...
  • Page 56 AUDIO SYSTEM AND CB RADIO Adjusting the squelch level returns to normal operation and Adjusting the receiving volume the CB channel appears in the dis- play. For maximum reception sensitivity, the squelch level should be set by turning the control knob fully counterclockwise, and then slowly turning it clockwise un- til the background noise has been suffi- ciently reduced.
  • Page 57 AUDIO SYSTEM AND CB RADIO Channel information Channel Channel Frequency in MHz Channel Channel Frequency in MHz 26.965 27.215 26.975 27.225 36.985 27.235 27.005 27.245 27.015 27.255 27.025 27.265 27.035 27.275 27.055 27.285 27.065 27.295 27.075 27.305 27.085 27.315 27.105 27.325 27.115 27.335...

  • Page 58: Auxiliary Audio Source Operation

    AUDIO SYSTEM AND CB RADIO Transmitting and receiving EAU15570 Auxiliary audio source opera- tion Transmission Auxiliary audio equipment can be con- nected to, and played through, the au- dio system. 1. Insert the output plug of the auxil- iary equipment into the jack locat- ed at the right of the cassette deck.
  • Page 59 AUDIO SYSTEM AND CB RADIO 4-21...

  • Page 60: Pre-Operation Checks

    PRE-OPERATION CHECKS EAU15593 The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly, even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss of tire air pressure could have serious consequences.

  • Page 61: Pre-Operation Check List

    • If necessary, add recommended coolant to specified level. 7-16 • Check cooling system for leakage. • Check operation. • If soft or spongy, have Yamaha dealer bleed hydraulic system. • Check lever free play. • Adjust if necessary. Front brake •...
  • Page 62 • Make sure that operation is smooth. • Check cable free play. Throttle grip 7-20, 7-28 • If necessary, have Yamaha dealer adjust cable free play and lubricate cable and grip housing. • Make sure that operation is smooth. Control cables 7-28 •...

  • Page 63: Operation And Important Riding Points

    Never ride with the sidestand should be on, otherwise have a tion. down. Yamaha dealer check the electrical cir- Before starting out, make sure cuit. 1. Turn the fuel cock lever to “ON”. that the sidestand is up. If the 2.
  • Page 64 NOTE: Yamaha dealer check the elec- never leave the starter (choke) on long- If the engine fails to start, release the trical circuit. er than necessary. The time necessary start switch, wait a few seconds, and...

  • Page 65: Starting A Warm Engine

    OPERATION AND IMPORTANT RIDING POINTS EAU16640 EAU16671 ECA10260 Starting a warm engine Shifting CAUTION: Follow the same procedure as for start- Even with the transmission in ing a cold engine with the exception the neutral position, do not that the starter (choke) is not required coast for long periods of time when the engine is warm.

  • Page 66: Engine Break-In

    OPERATION AND IMPORTANT RIDING POINTS 4. At the recommended shift points 3. Shift the transmission into the neu- EAU16841 Engine break-in shown in the following table, close tral position when the motorcycle There is never a more important period the throttle, and at the same time, is almost completely stopped.

  • Page 67: Parking

    CAUTION: touch them. If any engine trouble should occur Do not park on a slope or on soft during the engine break-in period, ground, otherwise the vehicle immediately have a Yamaha dealer may overturn. check the vehicle.

  • Page 68: Periodic Maintenance And Minor Repair

    TRAINED AND EQUIPPED TO PER- certain maintenance work correctly. FORM THESE PARTICULAR SER- VICES. NOTE: If you do not have the tools or experi- ence required for a particular job, have a Yamaha dealer perform it for you.
  • Page 69 PERIODIC MAINTENANCE AND MINOR REPAIR EWA10340 WARNING Modifications approved Yamaha may cause loss of perfor- mance, excessive emissions, and render the vehicle unsafe for use. Consult a Yamaha dealer before at- tempting any changes.

  • Page 70: Periodic Maintenance Chart For The Emission Control System

    • Replace gasket(s) if necessary. Evaporative emis- • Check control system for dam- √ sion control system age. (For California only) • Replace if necessary. * Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service.

  • Page 71: General Maintenance And Lubrication Chart

    PERIODIC MAINTENANCE AND MINOR REPAIR EAU32185 General maintenance and lubrication chart INITIAL ODOMETER READINGS 600 mi 4000 mi 8000 mi 12000 mi 16000 mi 20000 mi ITEM ROUTINE (1000 km) (7000 km) (13000 km) (19000 km) (25000 km) (31000 km) 1 month 6 months 12 months...
  • Page 72 PERIODIC MAINTENANCE AND MINOR REPAIR INITIAL ODOMETER READINGS 600 mi 4000 mi 8000 mi 12000 mi 16000 mi 20000 mi ITEM ROUTINE (1000 km) (7000 km) (13000 km) (19000 km) (25000 km) (31000 km) 1 month 6 months 12 months 18 months 24 months 30 months...
  • Page 73 PERIODIC MAINTENANCE AND MINOR REPAIR INITIAL ODOMETER READINGS 600 mi 4000 mi 8000 mi 12000 mi 16000 mi 20000 mi ITEM ROUTINE (1000 km) (7000 km) (13000 km) (19000 km) (25000 km) (31000 km) 1 month 6 months 12 months 18 months 24 months 30 months...
  • Page 74 • Adjust headlight beam. * Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service. NOTE: From 24000 mi (37000 km) or 36 months, repeat the maintenance intervals starting from 8000 mi (13000 km) or 12 months.

  • Page 75: Removing And Installing Cowlings And Panels

    PERIODIC MAINTENANCE AND MINOR REPAIR EAU18712 Removing and installing cowl- ings and panels The cowlings and panels shown need to be removed to perform some of the maintenance jobs described in this chapter. Refer to this section each time a cowling or panel needs to be re- moved and installed.
  • Page 76 PERIODIC MAINTENANCE AND MINOR REPAIR NOTE: Make sure that the projection fits into the grommet. 2. Install cowling A. EAU35860 Panels A and B To remove one of the panels 1. Grommet 1. Cowling B Remove the bolt, and then pull the pan- 2.
  • Page 77 PERIODIC MAINTENANCE AND MINOR REPAIR 1. Panel B 1. Panel C EAU19333 2. Bolt 2. Screw Panel C 3. Bolt To install the panel To remove the panel To install the panel Place the panel in the original position, 1. Remove panel B. 1.

  • Page 78: Checking The Spark Plugs

    1. Spark plug cap 1. Spark plug gap diagnose such problems yourself. In- 2. Remove the spark plug as shown, stead, have a Yamaha dealer check Spark plug gap: with the spark plug wrench includ- the vehicle. 0.8–0.9 mm (0.031–0.035 in) ed in the owner’s tool kit.

  • Page 79: Canister (For California Only)

    PERIODIC MAINTENANCE AND MINOR REPAIR 2. Clean the surface of the spark plug EAU19672 EAU19903 Canister (for California only) Engine oil and oil filter car- gasket and its mating surface, and tridge then wipe off any grime from the The engine oil level should be checked spark plug threads.
  • Page 80 An oil filter wrench is available at a of the recommended type to raise Yamaha dealer. it to the correct level. 5. Apply a thin coat of engine oil to To change the engine oil (with or...
  • Page 81 PERIODIC MAINTENANCE AND MINOR REPAIR Recommended engine oil: See page 9-1. Oil quantity: Without oil filter cartridge replace- ment: 3.50 L (3.70 US qt) (3.08 Imp.qt) With oil filter cartridge replacement: 3.70 L (3.91 US qt) (3.26 Imp.qt) NOTE: 1. O-ring 1.

  • Page 82: Final Gear Oil

    If any mediately turn the engine off and NOTE: leakage is found, have a Yamaha deal- check for the cause. The oil level should be at the brim of the er check and repair the vehicle. In addi- NOTE: filler hole.

  • Page 83: Coolant

    PERIODIC MAINTENANCE AND MINOR REPAIR 2. Remove the oil filler bolt and drain 6. Check the final gear case for oil EAU20070 Coolant bolt to drain the oil from the final leakage. If oil is leaking, check for The coolant level should be checked gear case.
  • Page 84 PERIODIC MAINTENANCE AND MINOR REPAIR If water has been added to the coolant, have a Yamaha dealer check the antifreeze content of the coolant as soon as possible, otherwise the effectiveness of the coolant will be reduced. EWA10380 WARNING Never attempt to remove the radiator 1.

  • Page 85: Cleaning The Air Filter Elements

    The air filter elements should be nance and lubrication chart. Have a filter case off. cleaned at the intervals specified in the Yamaha dealer change the coolant. periodic maintenance and lubrication chart. Clean the air filter elements more frequently if you are riding in unusually wet or dusty areas.
  • Page 86 PERIODIC MAINTENANCE AND MINOR REPAIR 7. Install the air filter element by fit- ting the projection on the air filter element into the holder in the air fil- ter case, then tightening the screws. ECA10480 CAUTION: Make sure that the air filter ele- ment is properly seated in the air filter case.

  • Page 87: Carburetors

    Therefore, all carburetor adjusted by a Yamaha dealer at the in- adjustments should be left to a Yamaha tervals specified in the periodic mainte- dealer, who has the necessary profes- nance and lubrication chart.

  • Page 88: Valve Clearance

    250 kPa (36 psi) (2.50 kgf/cm²) Rear: from occurring, the valve clearance regarding the specified tires. 250 kPa (36 psi) (2.50 kgf/cm²) must be adjusted by a Yamaha dealer 90–190 kg (198–419 lb): at the intervals specified in the periodic Tire air pressure Front: maintenance and lubrication chart.
  • Page 89 After extensive tests, only the that the total weight of the cargo, rid- tact a Yamaha dealer immediately and tires listed below have been ap- er, passenger, and accessories have the tire replaced.

  • Page 90: Cast Wheels

    The accessories or replacement damage before each ride. If any parts you choose for your vehicle damage is found, have a Yamaha should be designed specifically for 1. Valve stem locknut dealer replace the wheel. Do not this model, and they must be se- 2.

  • Page 91: Clutch Lever

    If there is air in the hydraulic 2. To increase the brake lever free system, have a Yamaha dealer bleed play, turn the adjusting screw in di- the system before operating the motor- rection (a). To decrease the brake cycle.

  • Page 92: Adjusting The Rear Brake Light Switch

    EAU22430 presence of air in the hydraulic Front brake pads must be adjusted by a Yamaha dealer, system. If there is air in the hy- who has the necessary professional draulic system, have a Yamaha knowledge and experience.

  • Page 93: Checking The Brake And Clutch Fluid Levels

    PERIODIC MAINTENANCE AND MINOR REPAIR indicator grooves have almost disap- EAU22660 Clutch Checking the brake and clutch peared, have a Yamaha dealer replace fluid levels the brake pads as a set. Front brake EAU22470 Rear brake pads 1. Minimum level mark...

  • Page 94: Changing The Brake And Clutch Fluids

    Yamaha dealer clutch fluids seals may deteriorate, causing check the cause. Have a Yamaha dealer change the leakage and poor braking or clutch brake and clutch fluids at the intervals performance. specified in the NOTE after the periodic maintenance and lubrication chart.

  • Page 95: Checking And Lubricating The Cables

    If a cable is damaged maintenance chart. or does not move smoothly, have a Yamaha dealer check or replace it. Recommended lubricant: Yamaha Chain and Cable Lube or engine oil SAE 10W-30...

  • Page 96: Checking And Lubricating The Brake And Clutch Levers

    Recommended lubricant: EWA10730 Silicone grease WARNING If the sidestand does not move up and down smoothly, have a Yamaha dealer check or repair it. Recommended lubricant: Lithium-soap-based grease (all-pur- pose grease) 7-29...

  • Page 97: Lubricating The Swingarm Pivots

    PERIODIC MAINTENANCE AND MINOR REPAIR EAUM1650 EAU23250 EAU23271 Lubricating the swingarm piv- Lubricating the rear suspen- Checking the front fork sion The condition and operation of the front fork must be checked as follows at the The swingarm pivots must be lubricat- The pivoting points of the rear suspen- intervals specified in the periodic main- ed at the intervals specified in the peri-...

  • Page 98: Checking The Steering

    Securely support the vehicle so that fork does not operate smoothly, there is no danger of it falling over. have a Yamaha dealer check or re- pair it. 2. Hold the lower ends of the front fork legs and try to move them for- ward and backward.

  • Page 99: Checking The Wheel Bearings

    If there is play in the wheel burns. Avoid any contact with hub or if the wheel does not turn skin, eyes or clothing and al- smoothly, have a Yamaha dealer check ways shield your eyes when the wheel bearings. working near batteries. In case of contact, administer the fol- lowing FIRST AID.

  • Page 100: Replacing The Fuses

    Storing a discharged battery can cause permanent To charge the battery battery damage. Have a Yamaha dealer charge the bat- To charge a sealed-type (MF) tery as soon as possible if it seems to battery, a special (constant-volt- have discharged. Keep in mind that the age) battery charger is required.
  • Page 101 PERIODIC MAINTENANCE AND MINOR REPAIR Fuse box 1 is located behind cowling A. Fuse box 2 is located behind panel B. Specified fuses: (See page 7-8.) (See page 7-8.) Main fuse: 30.0 A Cruise control fuse: 10.0 A Carburetor heater fuse: 10.0 A Auxiliary DC connector fuse: 5.0 A...

  • Page 102: Replacing The Headlight Bulb

    If the headlight bulb 4. If the fuse immediately blows burns out, replace it as follows. again, have a Yamaha dealer 1. Disconnect the headlight coupler, check the electrical system. and then remove the headlight bulb cover.

  • Page 103: Replacing A Turn Signal Light Bulb Or The Tail/Brake Light Bulb

    1. Do not touch the glass part of the bulb. 4. Install the bulb cover, and then 1. Screw connect the coupler. 5. Have a Yamaha dealer adjust the headlight beam if necessary. 1. Screw 7-36...

  • Page 104: Supporting The Motorcycle

    However, should your motorcycle To service the front wheel require any repair, take it to a Yamaha 1. Stabilize the rear of the motorcycle dealer, whose skilled technicians have by using a motorcycle stand or, if...

  • Page 105: Troubleshooting Charts

    Remove the spark plugs and check the electrodes. The engine does not start. Have a Yamaha dealer check the vehicle. Check the battery. 4. Battery The engine turns over The battery is good.
  • Page 106 Start the engine. If the engine overheats again, have a The coolant level Yamaha dealer check and repair the cooling system. is OK. NOTE: If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant as soon as possible.

  • Page 107: Motorcycle Care And Storage

    2. Make sure that the spark plugs mance and extends its life. matte colored finished parts. Be and all caps and covers are prop- sure to consult a Yamaha dealer for ECA10731 erly installed. CAUTION: advice on what products to use be- 3.

  • Page 108: Storage

    When towel, or soft absorbent cloth. damp cellars, stables (because finished, start the engine and let it idle 4. Clean the seat with Yamaha Pro- of the presence of ammonia) for several minutes. tectant or another high-quality vi-...
  • Page 109 MOTORCYCLE CARE AND STORAGE 3. Drain the carburetor float chamber EWA10950 °C (90 °F)]. For more information WARNING by loosening the drain bolt; this will on storing the battery, see page prevent fuel deposits from building To prevent damage or injury from 7-32.

  • Page 110: Specifications

    SPECIFICATIONS Dimensions: Engine oil: Air filter: Overall length: Type: Air filter element: 2655 mm (104.5 in) YAMALUBE 4, SAE10W30 or SAE20W40 Dry element Overall width: Fuel: 900 mm (35.4 in) Recommended fuel: Overall height: Unleaded gasoline only 0° 10° 30° 50° 70° 90° 110° 130°F 1565 mm (61.6 in) Fuel tank capacity:...
  • Page 111 SPECIFICATIONS Transmission type: Size: Rim size: Constant mesh 5-speed 150/90B15M/C 74H 15M/C x MT4.00 Operation: Manufacturer/model: Front brake: Left foot operation DUNLOP/D404 Type: Gear ratio: Manufacturer/model: Dual disc brake 1st: BRIDGESTONE/G702G Operation: 43/17 (2.529) Loading: Right hand operation 2nd: Maximum load: Recommended fluid: 31/19 (1.632) 190 kg (419 lb)
  • Page 112 SPECIFICATIONS Charging system: Overdrive indicator light: Audio system fuse: 12 V, 1.7 W × 1 AC magneto 10.0 A Battery: Cruise control “SET” indicator light: Auxiliary DC connector fuse: 12 V, 1.7 W × 1 5.0 A Model: Cruise control “RES” indicator light: Auxiliary DC jack fuse: YTX20L-BS 12 V, 1.7 W ×...

  • Page 113: Consumer Information

    Record the key identification number, vehicle identification number and mod- el label information in the spaces pro- vided below for assistance when ordering spare parts from a Yamaha dealer or for reference in case the vehi- cle is stolen. KEY IDENTIFICATION NUMBER: 1.
  • Page 114 1. Model label The model label is affixed to the frame under the rider seat. (See page 3-13.) Record the information on this label in the space provided. This information will be needed when ordering spare parts from a Yamaha dealer. 10-2...

  • Page 115: Reporting Safety Defects

    If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Yamaha Motor Corporation, U.S.A. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.

  • Page 116: Motorcycle Noise Regulation

    CONSUMER INFORMATION EAU26560 Motorcycle noise regulation TAMPERING WITH NOISE CONTROL SYSTEM PROHIBITED: Federal law prohibits the following acts or the causing thereof: (1) The removal or rendering inoperative by any person other than for purposes of maintenance, repair, or replacement of any device or element of design incorporated into any new ve- hicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use or (2) the use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.

  • Page 117: Maintenance Record

    CONSUMER INFORMATION EAU26632 Maintenance record Copies of work orders and/or receipts for parts purchased and installed on your vehicle will be required to document that maintenance has been completed in accordance with the emissions warranty. The chart below is printed only as a reminder that maintenance work is required.
  • Page 118 CONSUMER INFORMATION Maintenance Date of Servicing dealer Mileage Remarks interval service name and address 36000 mi (55000 km) or 54 months 40000 mi (61000 km) or 60 months 10-6...

  • Page 119: Yamaha Motor Corporation, U.s.a. Royal Star™ Venture Limited Warranty

    CONSUMER INFORMATION EAU26703 ® YAMAHA MOTOR CORPORATION, U.S.A. ROYAL STAR™ VENTURE LIMITED WARRANTY 10-7...
  • Page 120 CONSUMER INFORMATION 10-8...
  • Page 121 CONSUMER INFORMATION 10-9...
  • Page 122 INDEX Cruise control switches......3-8 Cruise control system ......3-5 Accessories and replacement parts..7-23 Key identification number...... 10-1 Air filter elements, cleaning....7-18 Audio settings (basic)......4-4 Dimmer switch ........3-7 Labels, location of ........1-5 Audio settings (modes) ......4-6 Audio system ..........
  • Page 123 INDEX Sidecases and travel trunk ....3-14 Wheel bearings, checking .....7-32 Sidestand..........3-18 Wheels ..........7-23 Sidestand, checking and lubricating ..7-29 Sound control unit........4-3 Spark plugs, checking ......7-11 Specifications ......... 9-1 Speedometer unit ........3-4 Starter (choke) knob ......3-12 Starting and warming up a cold engine...........
  • Page 126 YAMAHA MOTOR CO., LTD. PRINTED ON RECYCLED PAPER PRINTED IN JAPAN 2007.06-0.5×1 CR...

This manual is also suitable for:

Royal star venture xvz13tfxcRoyal star venture xvz13tfsxRoyal star venture xvz13tfsxc

Table of Contents
