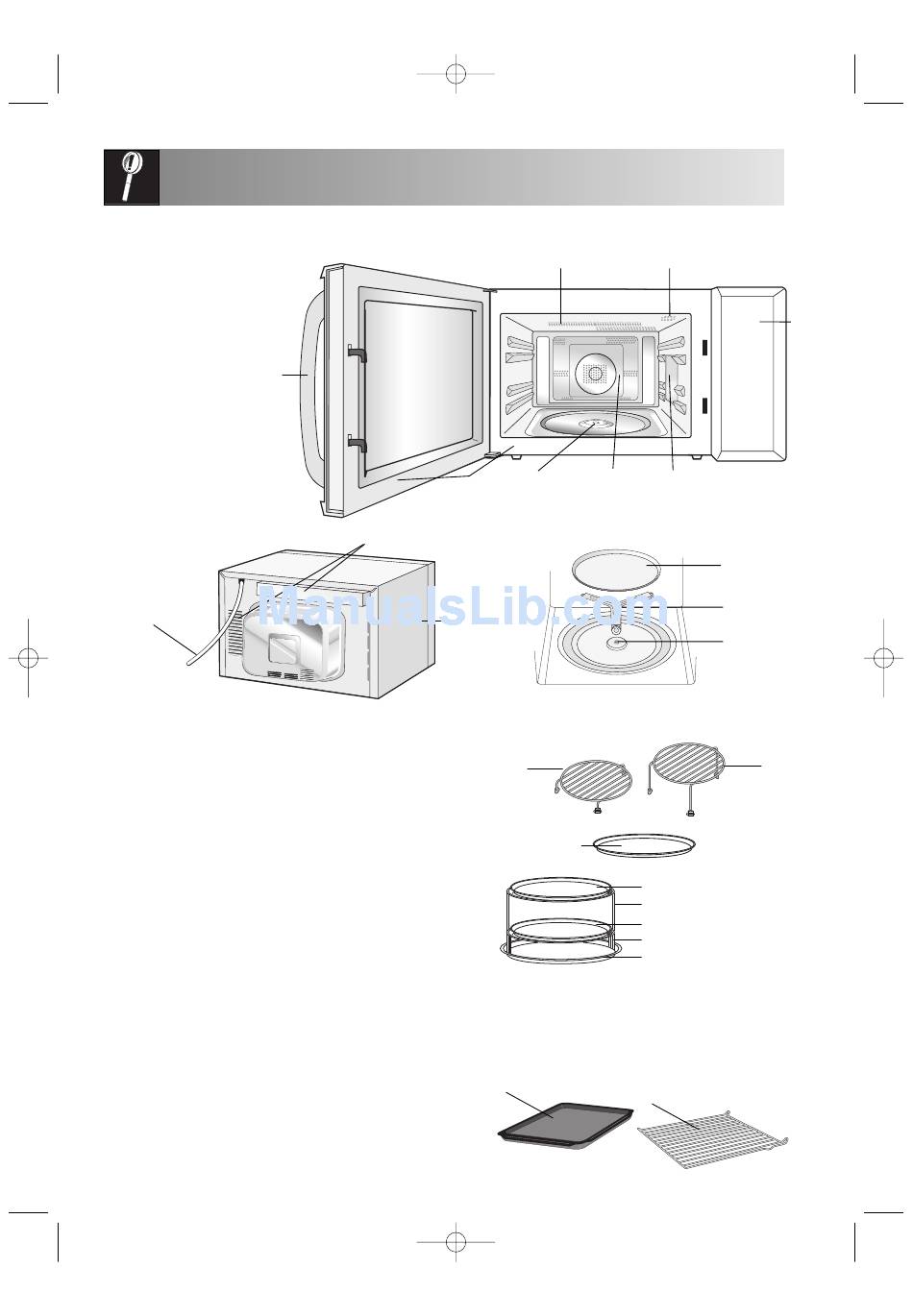

OVEN AND ACCESSORIES

1 Grill heating
element
2 Oven lamp
3 Control panel
4 Waveguide cover
5 Oven cavity
6 Coupling
7 Door seals and
sealing surfaces
8 Door opening
handle
9 Air-vent openings
10 Outer cabinet
11 Power cord
11
ACCESSORIES:
Check to make sure the following accessories
are supplied:
12 Turntable 13 Turntable support
15 High rack 16 1 Baking tin
• Place the turntable support into the coupling in the
centre of the oven floor, ensuring you place it TOP side
up, (TOP is engraved on one side). It should be able to
freely rotate around the coupling.
• Place the turntable on to the turntable support.
• Place the high/low racks onto the turntable if necessary.
• The baking tins are only recommended for baking
pastries in convection mode. Place the tin on the low
rack. In case of two stage baking place additionally
another household baking tin (not supplied with oven)
on the high rack as shown opposite.
NOTES:
• Always operate the oven with the turntable and support
fitted correctly. This promotes thorough even cooking. A
badly fitted turntable may rattle, may not rotate properly
and damage the oven.
• When you order accessories, please mention two items:
part name and model name to your dealer or SHARP
authorised service agent.
This oven will be supplied with 2 racks (High and Low)
and 1 baking tin.
09:38 Page 2
8
9
14 Low rack
1
6 5
7
10
These racks are used for cooking in Convection,
Dual or Grill mode.
14
16
OPTIONAL ACCESSORIES (RK-T11):
• You can order a Square baking tin (A) and a
square shelf (B) for this oven as optional
accessories.
A
2
2
3
4
12
13
Coupling
15
Household baking tin
High rack
Baking tin
Low rack
Turntable
B
