Toshiba DVR80KF Owner's Manual

Dvd / video cassette recorder
Hide thumbs Also See for DVR80KF:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
E9TK5FD_EN.book Page 1 Wednesday, January 13, 2010 10:33 AM

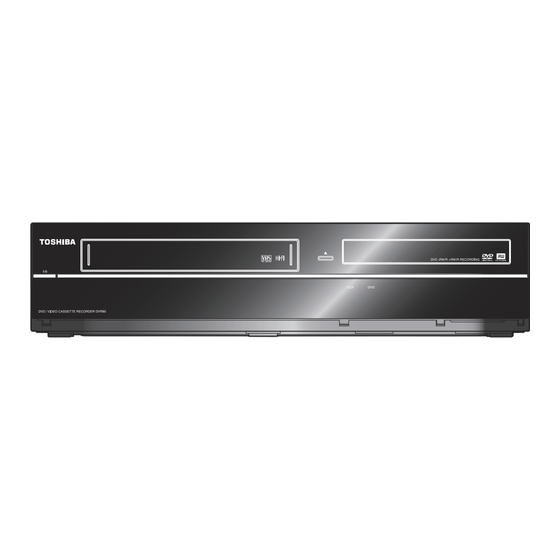

DVD / VIDEO CASSETTE RECORDER
DVR80KF
OWNER'S MANUAL
© 2010 Toshiba Corporation
EN
PAL
SECAM
VCR
DVD
For Customer Use:
Carefully read the Model No. and Serial No. located at the
back of the unit and enter the information below. Retain
this information for future reference.
Model No. __________________________
Serial No. __________________________
1
