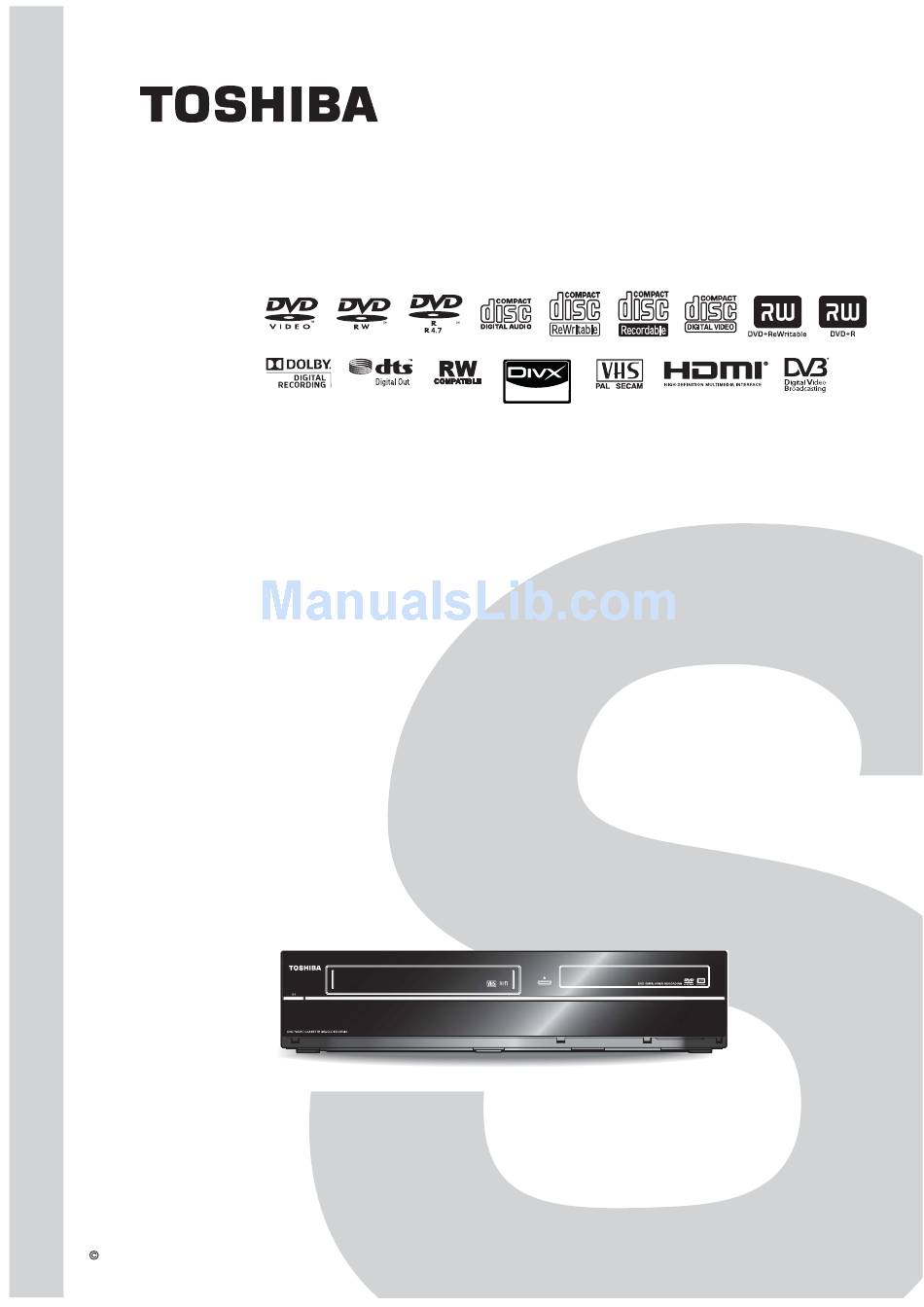

FILE NO. 810-2009135GR
SERVICE MANUAL
DVD/ Video Cassette Recorder
DVR80KF
VCR
DVD
The above model is classified as a green product (*1), as indicated by the underlined serial
number. This Service Manual describes replacement parts for the green product. When
repairing this green product, use the part(s) described in this manual and lead-free solder (*2).
For (*1) and (*2), see the next page.
TOSHIBA CORPORATION 2010
Published in Japan, Feb. 2010 GREEN
