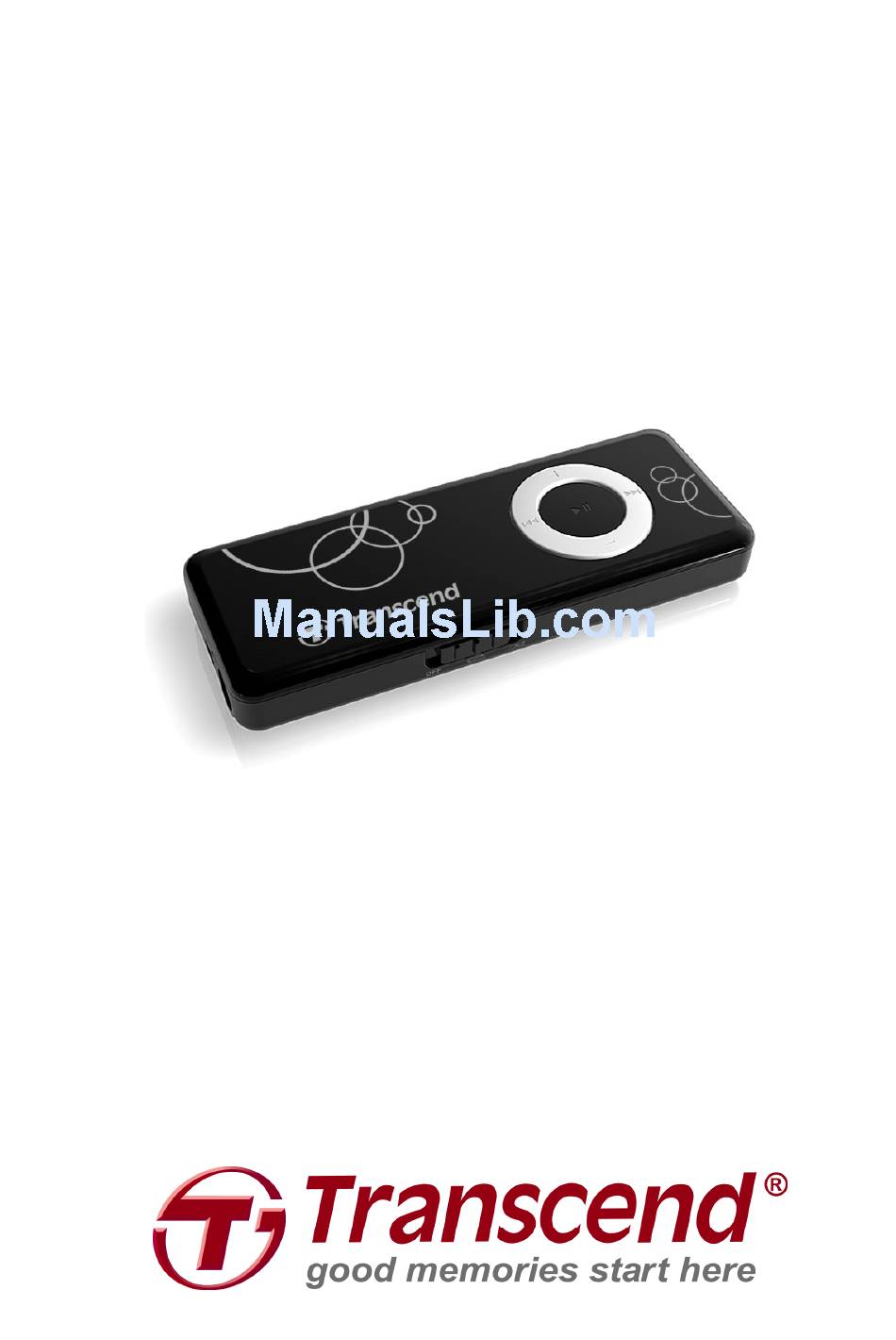

- Page 1 User’s Manual Digital Music Player MP300 (Version 1.0)
-
Page 2: Table Of Contents
Table of Contents Introduction︱ ︱ ︱ ︱ ..................3 Package Contents︱ ︱ ︱ ︱ ................3 Features︱ ︱ ︱ ︱ ....................4 System Requirements︱ ︱ ︱ ︱ ................ 4 Safety Precautions︱ ︱ ︱ ︱ ................4 General Use ........................4 Backing Up Data ........................5 Caution: Risk of Deafness....................5 Reminders ..........................5 Player Controls︱... -
Page 3: Introduction
Thank you for purchasing Transcend’s MP300, a next-generation MP3 Player that combines all the advantages of lightweight portable music with the benefits of a USB flash drive. Your MP300 is equipped with a High-speed USB 2.0 interface to transfer data and music files to and from your computer quickly and easily. The stylish MP300 from Transcend will change the way you think about digital music forever. -
Page 4: Features
Always use the Transcend-provided power adapters and cables. Using incompatible cables may • permanently damage your MP300. Never connect the MP300 to a USB hub. USB hubs connect to multiple devices at the same time, • resulting in inadequate or unstable power supply. This may cause damage to your digital music player. -
Page 5: Backing Up Data
Transcend does NOT take any responsibility for data loss, or damage during operation. If you • decide to store data on your MP300 we strongly advise that you regularly backup the data to a computer, or other storage medium. Caution: Risk of Deafness Repeated or regular use of headphones or earphones at volume levels above 80 decibels can give a •... -
Page 6: Player Controls
Player Controls︱ High-speed USB 2.0 Connector Headphone Jack Lanyard Attachment Loop Previous / Rewind Play / Pause Volume Up Next / Fast-Forward LED Indicator (Red / Green) Volume Down Power Switch – Off Power Switch – On / Repeat All Power Switch –... -
Page 7: Basic Operation
1. Switch the player’s Power Switch to the OFF position. 2. Plug the small end of the USB cable into the Mini USB port on the side of the MP300, and plug the large end of the cable into an available USB port on your desktop or notebook computer. -
Page 8: Power Off
Please see the Specifications section for a list of all music file formats the MP300 supports. Pause / Standby Press to pause a song during playback. The player’s green LED indicator will flash while paused. -
Page 9: Previous Track
Previous Track Press to go back to the previous song. Fast Forward Press and hold the button to fast-forward. Rewind Press and hold the button to rewind. Increase Volume Press once or press and hold the button until you reach the desired volume level. Decrease Volume Press once or press and hold the button until you reach the desired volume level. -
Page 10: Transferring Music
Please plug the MP300 directly into your computer’s built-in USB port. 1. Plug the small end of the USB cable into the Mini USB port on the side of the MP300, and plug the large end of the cable into an available USB port on your desktop or notebook computer. - Page 11 *Note: “(E:)” is an example drive letter – your “My Computer" window may differ 4. Transfer files by simply dragging them onto the “MP300 DISK”. You can also create your own folders within the MP300 and copy files directly to the folders. Alternatively, Windows Media Player can be used...
- Page 12 LED will stop flashing and return to a steady illumination. 5. To delete songs from the MP300, select the songs you want to remove and press Delete on your keyboard, or drag the files into the Recycle Bin / Trash.
-
Page 13: Disconnecting From A Computer
4. Unplug the MP300 from your computer. Disconnecting the MP300 in Mac OSX 10.0 or Later 1. Drag the Disk icon that corresponds to your MP300 into the trashcan. 2. Unplug your MP300 from the USB port Disconnecting the MP300 in Linux ... -
Page 14: Troubleshooting
Is your MP300 properly connected to the USB port? If not, unplug it and plug it in again. • Is your MP300 connected to the Mac keyboard? If so, unplug it and plug it into an available USB port •... -
Page 15: Specifications
Specifications Size (L x W x H): 68.6 mm × 26.4 mm × 9.6 mm Weight: Music Formats: MP3, WMA, and WAV Battery Life (Music Playback): Approximately 15 hours (fully charged battery) Compression Rates: 32Kbps to 320Kbps Signal-to-Noise Ratio: ≥ 90dB Certificates: CE, FCC, BSMI Warranty:... -
Page 16: Led Indicator Reference Chart
LED Indicator Reference Chart︱ ︱ ︱ ︱ Status Green LED Red LED Power Off None None Power On Steady (5~7 seconds) None Repeat All Steady (1 second) None Shuffle Steady (1 second) None Play / Volume Up / Volume Steady (1 second) None Down / Next / Previous Pause... -
Page 17: Recycling & Environmental Considerations
Recycling & Environmental Considerations︱ ︱ ︱ ︱ Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste. -
Page 18: Two-Year Limited Warranty
Transcend will provide warranty service pursuant to the terms of the Transcend Warranty Policy. Proof of the original purchase date is required for warranty service. Transcend will inspect the product and in its sole discretion repair or replace it with a refurbished product or functional equivalent. Under special circumstances, Transcend may refund or credit the current value of the product at the time the warranty claim is made.
