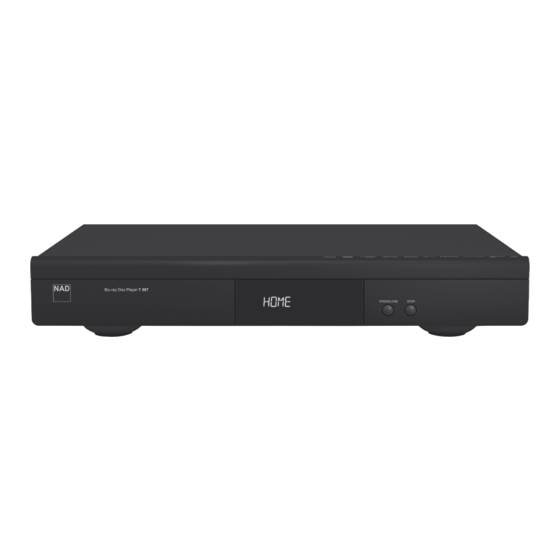

Blu-ray Disc™ Player
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for NAD T 567

Summary of Contents for NAD T 567

  • Page 1 T 567 ® Blu-ray Disc™ Player Owner’s Manual...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 14 Outdoor Antenna Grounding - If an outside antenna or cable system is SAVE THESE INSTRUCTIONS FOR LATER USE. connected to the product, be sure the antenna or cable system is grounded so FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE AUDIO as to provide some protection against voltage surges and built-up static charges.
  • Page 3 CAUTION LABELING INFORMATION Changes or modifications to this equipment not expressly approved by NAD Electronics for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following...
  • Page 4 RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT) The model and serial number of your new T 567 are located on the back of the cabinet. For your future convenience, we suggest that you record these numbers here:...

  • Page 5: Table Of Contents

    DISPLAY THE T 567 SETUP MENU ........

  • Page 6: Introduction

    SAVE THE PACKAGING Plastic foot flange Please save the box and all of the packaging in which your T 567 arrived. Should you move or otherwise need to transport your T 567, this is by far the safest container in which to do so. We’ve seen too many otherwise...

  • Page 7: Region Management Information

    Region or BD code described on the disc does not correspond to the Ability to view high-definition contents in BD-ROM discs maybe limited Region or BD code shown on the T 567 rear panel, the T 567 cannot play depending on the resolution of your TV.

  • Page 8: Identification Of Controls

    • Pressing the front panel [OPEN/CLOSE] button or the [k] button of • Press this button to toggle between Play and Pause of a BD, DVD, the BR 2 will switch ON the T 567 from standby mode. The flip cover CD or other compatible media disc.
  • Page 9 Not all media support maximum speeds for scanning. 10 USB INPUT • Connect an external USB device into this input. • Refer also to the “USB MODE” section of “USING THE T 567 – FEATURES” under the “OPERATION” main heading.

  • Page 10: Rear Panel

    REAR PANEL ATTENTION! Please make sure that the T 567 is powered off or unplugged before making any connections. It is also advisable to power down or unplug all associated components while making or breaking any signal or AC power connections.

  • Page 11: Br 2 Remote Control

    IDENTIFICATION OF CONTROLS BR 2 REMOTE CONTROL 1 ON: Switch ON T 567 from standby mode. 2 OFF: Switch T 567 to standby mode. 3 AUDIO: Select an audio language. SUBTITLE: Select a subtitle language. ZOOM: Enlarge video image. PICTURE: Display or exit the Picture Mode menu.

  • Page 12: Operation

    USING THE T 567 DISPLAY DISC OSD You may operate the T 567 from its front panel or via the BR 2 remote control. Since the remote control will be the primary controller for most You can display the general disc playback status on the TV screen. Some cases, we will focus on remote-controlled operations.
  • Page 13 “Resolution” option in the DISPLAY SETUP menu or by toggling the [RES] Select “No” to seek for the next applicable resolution setting. The above button of the BR 2 remote control. The T 567 must be at STOP mode when “Warning” screens will interchangeably be displayed until you select “Yes” to BR 2’s [RES] button is used to change the RESOLUTION setting.

  • Page 14: Language Setup Menu

    Off: If you choose for the disc subtitle not to come up, select “Off”. Setup this option to enjoy multi-channel surround sound with a 2-channel audio source. This option is applicable only if the T 567 is connected to a AUDIO SETUP MENU multi-channel audio receiver via HDMI OUT.

  • Page 15: Network Setup Menu

    The NETWORK settings are needed to use the BD Live feature. By come up in the menu screen. connecting the T 567 to the internet, special BD-ROM sites can be enabled 2 Input the password you have setup. by some BD-ROM discs. Online contents can be downloaded and watched...

  • Page 16: Wireless Network

    The network configuration and connection method may vary depending upon the equipment used and the network environment. The T 567 is equipped with an IEEE 802.11n wireless module, which also supports the 802.11a/b/g standard. For the best wireless performance, it is recommended that an IEEE 802.11n certified Wi-Fi network (access point or...

  • Page 17: Others Setup Menu

    NOTES ON NETWORK CONNECTION USB Storage: Delete all the downloaded contents from the connected • NAD is not responsible for any malfunction of the T 567 and/or the USB storage. internet connection feature due to communication errors/malfunctions DivX® VOD associated with your broadband internet connection or other connected equipment.

  • Page 18: Using The T 567 - Features

    Blu-ray 3D disc playback. • Your TV must be 3D-capable and has HDMI 1.4 input(s). • Connect the T 567’s HDMI OUT to the HDMI input of your 3D-capable TV using an HDMI cable (Type A, High Speed HDMI cable).
  • Page 19 AUDIO DIRECT RECORDING 8 In the virtual keyboard, use [A/S/D/F] to select a character, then press The T 567 has the added feature of recording a desired track or all tracks of [ENTER] to confirm character selection. When you have completed the an Audio CD to a connected USB device.

  • Page 20: Viewing A Photo File

    6 Press [ENTER] or [4] (Play) to select a file and start playback. Aside from sources such as discs or USB devices, the T 567 can also play video, During photo playback, press [DISP] to show display options about the audio and photo files from a PC or DLNA server through your home network.
  • Page 21 OPERATION USING THE T 567 - FEATURES ENTERING A NETWORK USER ID AND THE PASSWORD 3 When the network ID and password entry are completed, scroll to “OK” A network user ID and a password maybe required to access a shared folder.

  • Page 22: Adjusting The Picture Mode

    NOTES · The T 567 does not memorize the scene of a disc if it is turned off before the disc is played back. · Last Scene Memory function for a previous disc is erased once a different disc is played.

  • Page 23: Using The T 567 - Function Control

    OPERATION USING THE T 567 – FUNCTION CONTROL PICTURE Depending on the media, the following basic function controls of the T 567 can be accessed directly using the BR 2 remote control. AUDIO Press to go to PICTURE MODE menu wherein video color setting options can be enabled, adjusted, disabled or turned off.

  • Page 24: Marker, Search, Clear

    OPERATION USING THE T 567 – FUNCTION CONTROL MARKER, SEARCH, CLEAR Use the [MARKER] button to selectively mark a scene that you wish to playback. ENTER A MARKER Press [MARKER] at the desired point on the disc. The marker icon appears on the screen briefly.

  • Page 25: Reference

    REFERENCE REFERENCE TABLES RESOLUTION SETTINGS PLAYBACK OF UNPROTECTED MEDIA VIDEO OUTPUT COMPONENT VIDEO OUT RESOLUTION HDMI OUT HDMI CONNECTED HDMI DISCONNECTED 480i/576i 480p/576p 480i/576i 480i/576i 480p/576p 480p/576p 480p/576p 480p/576p 720p 720p 720p 720p 1080i 1080i 1080i 1080i 1080p/24Hz mode 1080p/24Hz mode 480i/576i 1080i 1080p/50Hz/60Hz...

  • Page 26: Language Code List

    REFERENCE LANGUAGE CODE LIST Use this list to input your desired language for the following settings: DISC AUDIO/DISC SUBTITLE/DISC MENU language. Language Code Language Code Language Code Language Code 6566 7074 7678 8373 Abkhazian Fiji Lingala Singhalese Afar 6565 Finnish 7073 Lithuanian 7684...

  • Page 27: Area Code

    REFERENCE AREA CODE Enter the appropriate code number for setting up the “Area Code”. Code Country Code Country Code Country Code Country Code Country Code Country Afghanistan Chad Germany Luxembourg Papua New Svalbard and Jan Albania Chile Ghana Macau Guinea Mayen Algeria China...

  • Page 28: Troubleshooting

    • Set the Resolution according to your TV’s capability. No sound. • The connected equipment is not capable of • Connect the audio output of the T 567 to an detecting or decoding audio signal from the equipment with appropriate audio decoders. T 567.

  • Page 29: Specifications

    Shipping weight 4.5 kg (9.9 lbs) * - IEEE 802.11n is not applicable to T 567’s Russian version model. ** - Gross dimensions include feet, extended buttons and rear panel terminals. Specifications are subject to change without notice. For updated documentation and features, please log onto www.NADelectronics.com for the latest information about T 567.
  • Page 30 All rights reserved. NAD and the NAD logo are trademarks of NAD Electronics International, a division of Lenbrook Industries Limited. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International.
