Basic Connection

External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.

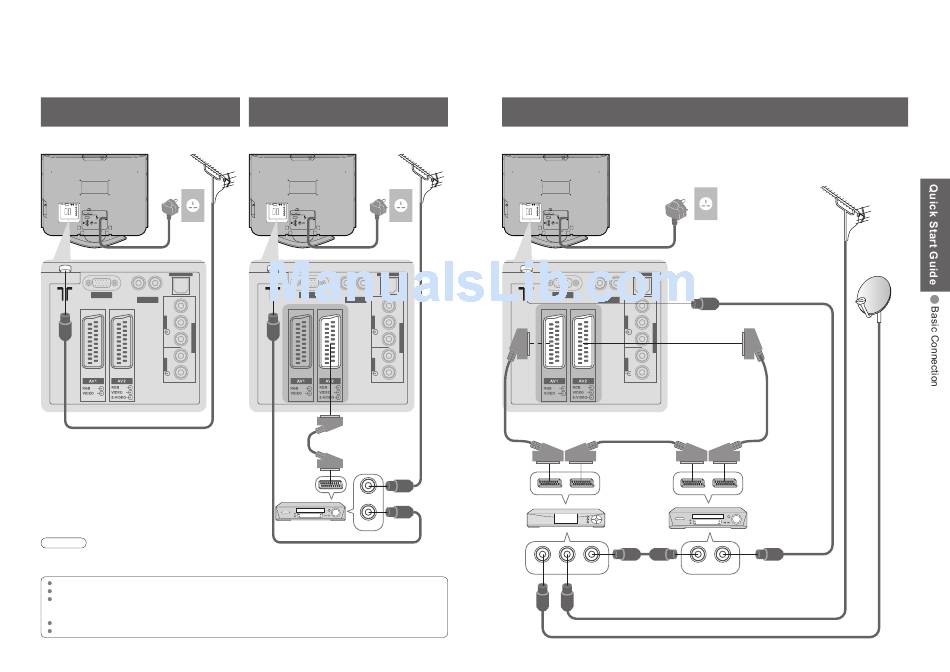

Example 1
Connecting aerial
TV only
Rear of the TV Aerial
AC 220-240 V
50 / 60 Hz
Mains lead
DIGITAL AUDIO OUT
PC R L
AUDIO OUT
Y
P
B
V
I
D
E
O
P
R
L
A
U
D
R
I
O
Note
•
• Connect to AV2 for a DVD Recorder / VCR supporting Q-Link (p. 40).
• Connect to AV1 for a Satellite receiver.
If connecting the TV and Satellite receiver with SCART cable, you can watch satellite broadcast by RGB input signal.
SCART: 21 pin connection used for video, audio and switching signals (Also known as Euro SCART and Peritel)
RF: Radio Frequency - Signal received from terrestrial aerial.
RGB / S-Video / Video:
Choose between these three video formats depending on personal preference and equipment requirement.
(RGB - Red, Green and Blue)
VCR: Video Cassette Recorder
DVD: Digital Versatile Disc
