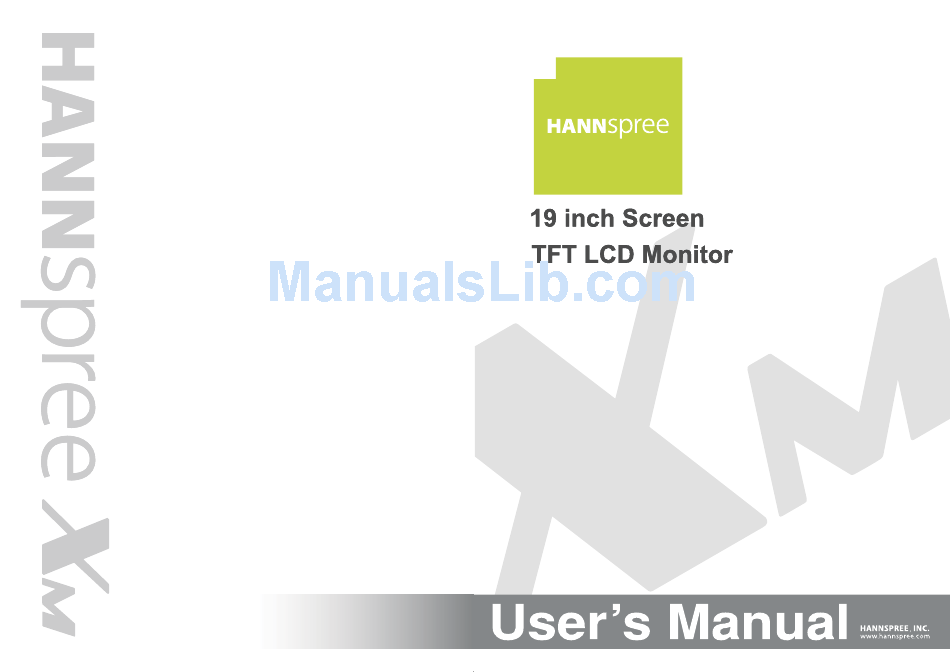

- Page 1 MAF-001001...
-
Page 2: Table Of Contents
Table of Contents REGULATORY INFORMATION RECYCLING INFORMATION SAFETY NOTICE ... 5 PRECAUTIONS ... 5 SPECIAL NOTES ON LCD MONITORS ... 6 PREFACE ... BEFORE YOU OPERATE THE MONITOR ... 8 FEATURES ... 8 CHECKING THE CONTENTS OF THE PACKAGE ... 8 POWER... -
Page 3: Regulatory Information
REGULATORY INFORMATION Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 4 TCO'03 ( TCO'03 applied model only ) Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.
-
Page 5: Recycling Information
RECYCLING INFORMATION HANNspree Inc. cares about environmental protection strategies and in using manufacturing methods and treatments that lend themselves to conservation and recycling devices at the end-of-life. Our products, whenever possible, contain recyclable materials which can be recycled into new devices. -
Page 6: Safety Notice
SAFETY NOTICE 1. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. -
Page 7: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. You may find slightly uneven brightness on the screen depending on the desktop pattern you use. -
Page 8: Preface
PREFACE Thank you for purchasing a Hannspree Liquid Crystal Display Monitor (LCD Monitor). Please carefully read this manual in its entirety before setting up, using or operating your Monitor. To ensure the safe and correct installation and operations of the Monitor, it is important that the safety and operation instructions in this manual are followed. -
Page 9: Before You Operate The Monitor
BEFORE YOU OPERATE THE MONITOR FEATURES 19” screen TFT Color LCD Monitor Crisp, Clear Display Recommended Resolutions: 19" Wide (16:10)1440 X 900 19"(5:4)1280 X 1024 ® EPA ENERGY STAR Ergonomic Design Space Saving, Compact Case Design CHECKING THE CONTENTS OF THE PACKAGE The product package should include the following items: Screen Note : The screen and base design may vary on different models. -
Page 10: Power
POWER POWER SOURCE: 1. Make sure that the power cord is the correct type required in your area. 2. This LCD monitor has an Internal universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.) 3. -
Page 11: Controls And Connectors
CONTROLS AND CONNECTORS CABLE CONNECTIONS: Turn off your computer before performing the procedure below. 1. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer’s D-Sub port. -or- 2. -
Page 12: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you do not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor’s angle at 20 alternative from -5 to 15 or 0 to 20 . -
Page 13: Operating Instructions
OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences. The power cord should be connected. -
Page 14: Front Panel Control
FRONT PANEL CONTROL Power Button: Press this button to switch the monitor on and off. Power Indicator (LED): Green — Power On mode. Orange — Power saving mode MENU / ENTER: 1. Activate the OSD menu or adjust the function settings and confirmation. 2. -
Page 15: How To Adjust A Setting
HOW TO ADJUST A SETTING OSD Diagram OSD Description Brightness adjustment: Select the Brightness Main Menu . Press enter and adjust the level. Contrast adjustment: Select the Contrast option on the Main Menu . Press enter and adjust the level. How to adjust screen position and quality: Select... - Page 16 OSD Diagram OSD Description Clock adjustment: Select the Clock Adjustment option to reduce the vertical flicker of characters on the screen. Press enter and adjust the level. Phase adjustment: Select the Phase Adjustment option to reduce the horizontal flicker of characters on the screen.
- Page 17 OSD Diagram OSD Description How to set the OSD: Select OSD Setting on the Menu , and then Press enter. OSD horizontal adjustment: Select the OSD H-Position option to adjust the horizontal position of the OSD. Press enter and adjust the level. OSD vertical position adjustment: Select the OSD V-Position option to...
- Page 18 OSD Diagram OSD Description OSD color setting: Select the OSD Color setting option to adjust the color of the OSD. Press enter and adjust the level. Language: Select the Language option to change the language of the OSD. Press enter and select a language.
-
Page 19: Plug And Play
OSD Diagram PLUG AND PLAY ( Plug & Play DDC2B Feature ) This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the computer or host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 20: Technical Support (Faq)
TECHNICAL SUPPORT (FAQ) Q & A FOR GENERAL DEFECTS PROBLEM & QUESTION Power LED is not on No Plug & Play or screen image is stretch or seems out of proportion Picture is dim, too bright or fuzzy Picture bounces or a wave pattern is present in the picture The power LED is ON... -
Page 21: Error Message & Possible Solution
ERROR MESSAGE & POSSIBLE SOLUTION CABLE NOT CONNECTED : 1. Check whether the signal-cable is properly connected. If the connector is loose, tighten the connector screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to an unsuitable display mode. Set the computer to a display mode from the table below: FACTORY PRESET TIMING TABLE: TIMING... -
Page 22: Appendix
The above specification is subject to actual panel specification and is subject to change without prior notice. Applied models only. Note : Maximum Resolution is dependant on the support of your computer system and video card. Please see http://www.hannspree.com for more information. 19"(16:10) 0.2835(H) x 0.2835(V) 0.294(H) x 0.294(V) R,G,B Analog Interface Digital (Dual-Input Model) H/V TTL 31KHz –... -
Page 23: Connector Pin Assignment
CONNECTOR PIN ASSIGNMENT 15 - Pin Color Display Signal Cable: PIN NO. DESCRIPTION Green Blue Ground Ground R-Ground G-Ground B-Ground 24 - Pin Color Display Signal Cable: (Dual Input Mode) PIN NO. DESCRIPTION TMDS Data 2- TMDS Data 2+ TMDS Data 2/4 Shield No Connection No Connection DDC Clock...
