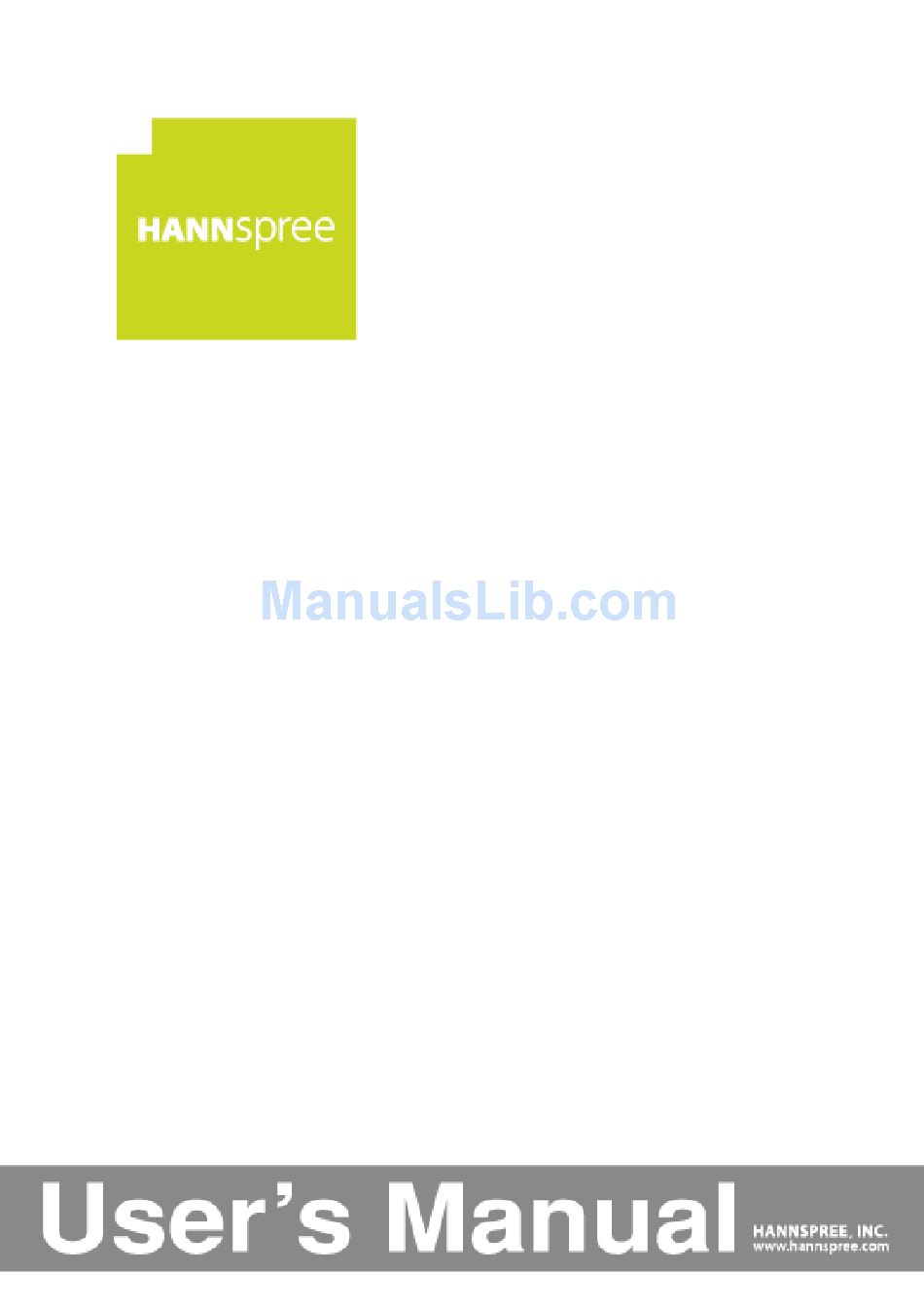

- Page 1 22” Liquid Crystal Display Monitor...
- Page 2 Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 3: Recycling Information
RECYCLING INFORMATION Hannspree Inc., cares about environmental protection strategies and in using manufacturing methods and treatments that lend themselves to conservation and recycling devices at the end-of-life. Our products, whenever possible, contain recyclable materials which can be recycled into new devices. -
Page 4: Table Of Contents
SAFETY NOTICE ...5 PRECAUTIONS...5 SPECIAL NOTES ON LCD MONITORS ...6 PREFACE ...7 BEFORE OPERATING THE MONITOR ...8 FEATURES...8 CHECKING THE CONTENTS OF THE PACKAGE ...8 INSTALLATION INSTRUCTIONS...9 POWER...9 MAKING CONNECTIONS...10 ADJUSTING THE VIEWING ANGLE... 11 OPERATING INSTRUCTIONS ...12 GENERAL INSTRUCTIONS...12 FRONT PANEL CONTROL ...13... -
Page 5: Safety Notice
• Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. -
Page 6: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. • Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. -
Page 7: Preface
The information in this manual is subject to change without notice. To the extent allowed by applicable law, Hannspree, Inc. (“Hannspree”) shall not be liable for direct, indirect, special, exemplary, incidental or consequential damages arising from any defect or omission... -
Page 8: Before Operating The Monitor
BEFORE OPERATING THE MONITOR FEATURES • 22” Wide screen TFT Color LCD Monitor • Crisp, Clear Display for Windows • Recommended Resolutions: 1680 X 1050@60Hz ® • EPA ENERGY STAR • Ergonomic Design • Space Saving, Compact Case Design CHECKING THE CONTENTS OF THE PACKAGE... -
Page 9: Installation Instructions
3. Snap the monitor into its base. A clear click sound will affirm that the base is connected correctly. 4. Verify that the monitor is securely attached to the base by looking at the bottom of the base and making sure that the clips are fully engaged in the base. -
Page 10: Making Connections
CONNECTING TO A PC Turn off your computer before performing the procedure below. 1. Connect one end of the D-Sub cable to the back of the monitor and connect the other end to the computer’s D-Sub port. 2. Connect one end of the HDMI cable (Dual input mode optional) to the back of the monitor and connect the other end to the computer’s HDMI port. -
Page 11: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE • For optimal viewing it is recommended to look at the full face of the monitor, and then adjust the monitor’s angle to your own preference. • Hold the stand so you do not topple the monitor when you change the monitor’s angle. -
Page 12: Operating Instructions
OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preference. -
Page 13: Front Panel Control
「vertical position」,「clock」,and 「phase」.) NOTES: • Do not install the monitor in a location near heat sources such as radiators or air dusts, or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock. • Save the original shipping box and packing materials, as they will come in handy if you ever have to ship your monitor. -
Page 14: How To Adjust A Settings
HOW TO ADJUST A SETTINGS BRIGHTNESS/CONTRAST BRIGHTNESS CONTRAST X-CONTRAST INPUT SETTING INPUT SETTING AUTO SEARCH COLOR SETTING WARM NATURE COOL USER IMAGE SETTING AUTO ADJUST H-POSITION Adjust the brightness value of the display according to your preference. Select「BRIGHTNESS」option to adjust the brightness value. - Page 15 V-POSITION CLOCK PHASE SHARPNESS HDMI MODE OSD SETTING LANGUAGE H-POSITION V-POSITION TRANSPARENCY OSD TIME-OUT OSD COLOR SYSTEM AUDIO INPUT Select the 「V-POSITION」 option to shift the screen image up or down. Enter the option and adjust the level. Select the 「CLOCK」option to reduce the vertical flicker of characters on the screen.
- Page 16 VOLUME MUTE DDC/CI FACTORY RESET INFORMATION PC audio output cable is connected to monitor’s LINE IN (or AUDIO IN) port. [For HDMI Input only] Select the 「VOLUME」 option to change the volume level. Enter the option and adjust the level.
-
Page 17: Plug And Play
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bidirectional data channel based on the I²C protocol. -
Page 18: Technical Support (Faq)
*Computer Video Card should be snugly seated in its slot *Make sure monitor’s video cable is properly connected to the computer. *Inspect monitor’s video cable and make sure none of the pins are bent. *Make sure computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. - Page 19 *Make sure the sound volume adjustment can be clearly identified. *Make sure the System > Silence option in the monitor menu is *While transferring via HDMI port but no sound is outputted, it is recommended to select AUDIO INPUT as a PC option, and make sure PC audio output cable is connected to monitor＇s...
-
Page 20: Error Message & Possible Solutions
ERROR MESSAGE & POSSIBLE SOLUTIONS CABLE NOT CONNECTED: 1. Check that the signal-cable is properly connected, if the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT: Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table. - Page 21 1440x900@60Hz 1440x900@75Hz 1680x1050@60Hz 720x480i@60Hz 720x480p@60Hz 720x576i@50Hz 720x576p@50Hz 1280x720p@50Hz 1280x720p@60Hz 1920x1080i@60Hz 1920x1080i@50Hz 55.935 59.887 70.635 74.984 65.29 59.954 15.734 59.94 31.469 59.94 15.625 31.25 37.5 33.75 28.125...
-
Page 22: Appendix
The above specification is subject to actual panel specification and is subject to change without prior notice. NOTES: Maximum Resolution is dependant on the support of your computer system and video card. Please see http://www.hannspree.com for more information. Driving system TFT Color LCD Size 22”... - Page 23 Corporate website: http://www.hannspree.com/tw Service website: http://twservice.hannspree.net 瀚斯宝丽科技(上海)有限公司 电话：+86.21.3912.6999 传真：+86.21.3912.6969 Corporate website: http://www.hannspree.com/cn Service website: http://cnservice.hannspree.net HANNSpree Hong Kong Service Center TEL: (852) 23453822 FAX: (852) 23453790 Corporate website: http://www.hannspree.com/hk Service website: http://hkservice.hannspree.net Japan 電話番号: 03.6914.5088 ファックス: 03.6914.5087 Corporate website: http://www.hannspree.com/jp Service website: http://jpservice.hannspree.net...
