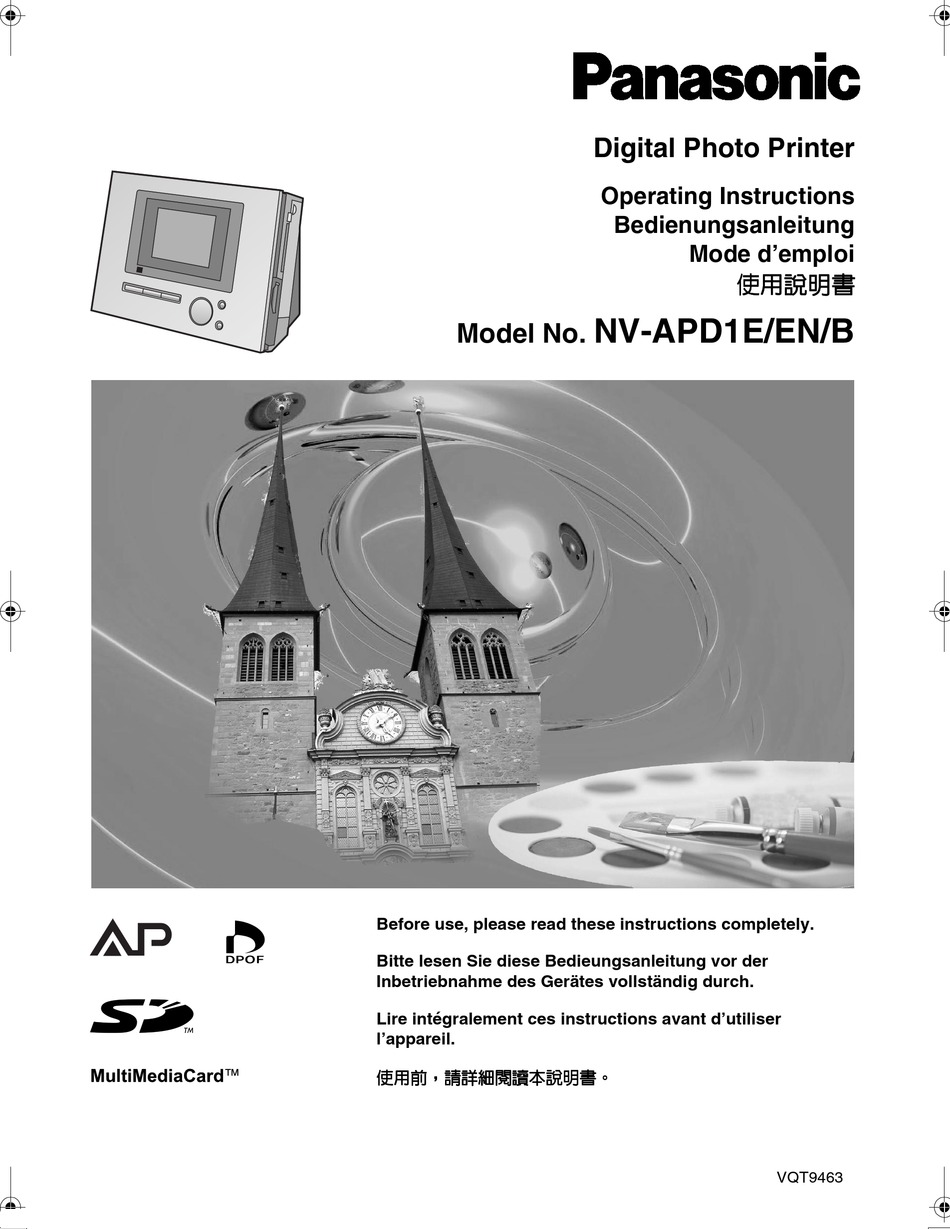

Digital Photo Printer
Operating Instructions
Bedienungsanleitung
Mode d'emploi
肱確漾字菟
肱確漾字菟
肱確漾字菟
肱確漾字菟
NV-APD1E/EN/B
VQT9463
Advertisement
Table of Contents
Related Manuals for Panasonic NV-APD1E
Summary of Contents for Panasonic NV-APD1E
- Page 1 Operating Instructions Bedienungsanleitung Mode d’emploi 肱確漾字菟 肱確漾字菟 肱確漾字菟 肱確漾字菟 NV-APD1E/EN/B Model No. Before use, please read these instructions completely. Bitte lesen Sie diese Bedieungsanleitung vor der Inbetriebnahme des Gerätes vollständig durch. Lire intégralement ces instructions avant d’utiliser l’appareil. 肱確焼、穉捏 捏 捏 捏 羊篏鶫鎧漾字菟，...
-
Page 2: Information For Your Safety
VJA0940 IMPORTANT K2CQ2DA00002 (NV-APD1B) Please respect all copyrights. (NV-APD1E/EN) Whatever you have recorded and created can be used for your personal entertainment only. Under copyright laws, other materials cannot be used without obtaining permission from the holders of the K2CJ2DA00002 copyrights. -
Page 3: Caution For Ac Mains Lead
A replacement fuse cover marked with the letter E or the Earth Symbol Ó. can be purchased from your local Panasonic Dealer. IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR ª Before Use THE SOCKET OUTLET IN YOUR HOME THEN THE Remove the Connector Cover as follows. -
Page 4: Table Of Contents
Contents Information for Your Safety ........ 2 Printing Multiple Screen Shots of Different Supplied Accessories ......... 2 Pictures ............16 Caution for AC mains lead Card Input..............16 Video Input ..............16 (NV-APD1B only)..........3 Creating a Personalized Picture Calendar ..17 IMPORTANT ............... -
Page 5: Preparation
Digital System Socket Photo Printer’s memory are deleted. When connected to a Panasonic Digital Video MEMORY Button Camera with Edit Cable VW-K5E (sold Press this button to store the displayed image in separately), the printer can automatically the printer’s memory. -
Page 6: Connections
ª Synchronized Functions Connections ≥When inputting a Card, only connect When both of the above diagram are connected, the following synchronized functions can be performed. Pressing the printer’s Memory button: An The socket-outlet shall be installed near the equipment and shall be easily accessible. Image is stored to memory, and the video camera automatically stops. -
Page 7: Inserting A Card
Inserting a Card ª When using an SD Memory Card or a MultiMedia Card Open (Card Door). Insert the card all the way into the slot. Close [Removing the Card] 1 1 1 1 Open 2 2 2 2 Push the card. 3 3 3 3 Remove the card. -
Page 8: Inserting The Ink Cassette
Inserting the Ink Cassette Use your finger to push in the hole with the arrow, and turn it in the direction of the arrow. Tighten any slack in 1 1 1 1 (Ink Film). ≥The Ink Cassette is included in the Ink Cassette/Paper Set (sold separately). -
Page 9: Basic Functions
Basic Functions Input Batch DPOF Test Print Search Card Slide ≥Make sure that paper, the Paper Cassette and the Ink Cassette are all inserted. ª Printing Images From a Card (Card Input) ≥Insert a card into the Digital Photo Printer. SD / MMC ≥Turn on the power. -
Page 10: Printing An Image From A Tape (Video Input)
ª Printing an Image From a Tape (Video Input) ≥Make sure that the connection is correct. Input Batch DPOF ≥Turn on the power. 1 Press A (MENU button). Search Card Slide Using the (2134) buttons, select [Input] under [BASIC], and press (Enter button). -
Page 11: Printing Batches/Indexing (For Card Input Only)
Printing Batches/Indexing (For Card Input Only) Multiple pictures can be automatically printed from a card. Furthermore, 25 frames of images on a card can be indexed and printed. ≥Select the INPUT method ( ● ● ● ● ). Select a picture, and mark it with Select [Batch] under [BASIC] on the MENU, and press Select a MENU you wish to use, and press Input... -
Page 12: Using Date Search When Printing (For Card Input Only)
Using Date Search When Printing (For Card Input Only) Batch Input DPOF Dates are recorded for pictures that were recorded on cards with Digital Video Cameras or Digital Still Cameras. Using this information, pictures Search Card Slide taken on the designated date(s) can be printed. ≥Select the INPUT method Select [Search] under [BASIC] on the MENU screen, and press... -
Page 13: Recording Titles Onto Cards
Enter the creation date, and press Confirm the picture, and press ≥Press to cancel. ≥Titles recorded to cards can be used in Panasonic video cameras with Title Functions. (However, some camera types may not be able to use Record to SD / MMC stamps) Card ≥Only titles can be recorded to cards. -
Page 14: Recording The Video Input Image On The Card (Video Input Only)
Recording the Video Input Image on the Card (Video Input Only) Input Batch DPOF Images from the VIDEO or S-VIDEO IN socket can be recorded to cards in the still picture screen. Search Card Slide ≥Select [Video] for the INPUT method. Select [Card] under [BASIC] on the MENU screen, and press Select [Picture], and press... -
Page 15: Multiple Functions
Multiple Functions Standard Multi Album Printing Multiple Screen Shots of the Same Calendar Zoom Picture (MULTI FRAME MODE) The Digital Photo Printer can divide the screen into 2, 4, 9, or 16 sections, and print multiple screen shots of the same picture. ≥Select the INPUT method. -
Page 16: Printing Multiple Screen Shots Of Different Pictures
Printing Multiple Screen Shots of Different Pictures Standard Multi Album The Digital Photo Printer can divide the screen into 2, 4, 9, or 16 sections, and print multiple screen shots of different pictures. Calendar Zoom ≥Select the INPUT method. ª Card Input Select [Album] under [FUNCTION] on the MENU screen, and press 2 pictures... -
Page 17: Creating A Personalized Picture Calendar
Creating a Personalized Picture Calendar The Digital Photo Printer can insert a picture and create a 1-month, 2- Album Standard Multi month, or 12-month personalized calendar. Calendar Zoom ≥Select the INPUT method. ª Card Input Select [Calendar] under [FUNCTION] on the MENU screen, and press Select [Calendar type], and press Calendar type... -
Page 18: Enlarging Part Of A Picture And Printing (Zoom/Card Input Only)
Enlarging Part of a Picture and Printing (Zoom/Card Input Only) Multi Album Standard The Digital Photo Printer can zoom in on a portion of a picture and print that portion. Calendar Zoom ≥Select the INPUT method. Select [Zoom] under [FUNCTION] on the MENU screen, and press Select a picture, and press ≥If the picture you currently wish to zoom in on is already displayed,... -
Page 19: Title Functions
Title Functions Type Illust Stamp Inserting Illustrations and Printing Sepia Display You can insert illustrations stored within the Digital Photo Printer or within cards onto pictures and print. ≥Select the INPUT method. ≥For Card Input, select the picture you wish to print and enter the Single Screen Display. -
Page 20: Switching Displays (Indicate/Don't Indicate/Clear)
Switching Displays (Indicate/Don’t indicate/Clear) Illust Type Stamp You can switch title displays (Illustrations ・ Characters ・ Stamps) used in P19-P22 Indicate/Don't indicate. Also, you can delete displayed titles Sepia Display by selecting [Clear]. Select [Display], under [EFFECT] on the MENU screen, and press Choose [Indicate], [Don't indicate] or [Clear], and press Indicate... - Page 21 Use the 21 buttons to select the character’s direction, the 34 buttons to select the character’s size and press How are you? Use the 3421 buttons to position the character’s location, and press Use the cursor buttons to choose the character’s colour and alignment, and press ≥21 Buttons: Change Character’s Colour to print.
-
Page 22: Inserting Stamps And Printing
Inserting Stamps and Printing You can insert stamps stored within the Digital Photo Printer onto Type Stamp Illust pictures and print. Sepia Display ≥Select the INPUT method. For Card Input, display the picture you wish to print in the Single Screen Display. For Video Input, display a still picture. -
Page 23: Settings
Settings Number Date Trim Settings Picture ª Set Number of Prints Select [Number] under [OPTION] on the MENU screen, and press Use the 21 buttons to select the number of copies, and Number press 1 sheet ≥You can choose between 1-10 copies. ª... -
Page 24: Adjusting Print Picture Quality
ª Adjusting Print Picture Quality ≥Select the picture you wish to adjust, and display it in the Single Number Date Trim Screen Display. Select [Picture] under [OPTION] on the MENU screen, Picture and press Adjust the quality, and press 34 Buttons: Item Selection 21 Buttons: Adjust Adjust the depth of the colour. -
Page 25: Precautions
≥If the Ink Cassette/Paper Set is defective due to a paper exit tray, as doing so may lead to a paper jam. manufacturing error on the part of Panasonic, we will replace the Ink Cassette/Paper Set with an equivalent ª Notes on Using 10 × × × × 15 cm printing Ink Cassette/Paper Set. -
Page 26: Notes On Handling Finished Prints
ª Notes on Handling Finished Prints ª Notes on Storing Settings to the Photo Printer’s Memory In order to preserve finished prints in the best condition, always observe the following points. Failure to observe When the following settings are configured, they will these points could result in a deterioration of print quality remain stored until they are altered again, even if the or injury. -
Page 27: Maintenance Notes
ª Maintenance Notes Q&A ≥Do not use Benzene, paint thinner, or other solvents to ª About Functions clean the printer. Most of the printer surface is plastic. When printing, what is the difference between Do not use solvents such as Benzene and paint thinner “Photo Shot”... -
Page 28: About Paper And Ink Cassettes
ª About Unclean Thermal Heads 10: What is the maximum number of picture files that the Photo Printer can handle? If a line appears across a printed picture and pictures cannot be printed clearly, Thermal head (the 1 portion on 10: The Photo Printer can handle up to 65.536 files. -
Page 29: Before Requesting Service
Before Requesting Service Paper jams occur frequently. 9-1: More than 36 sheets of paper (or 25 sheets of 9 × If the trouble persists even when the action suggested 12 cm printing paper) have been loaded in the Paper below has been taken, press the Power Button to turn off Cassette. -
Page 30: Error Messages
→ Wait for a moment. ≥The stamp is unreadable. ≥If F00 or other error messages appear, contact your nearest Panasonic dealer. ≥It can't be deleted because the card is read only. → The card is set to write-protect. Refer to each card’s manual for specific instructions on how to remove the card’s write-protection. -
