Before operating this product, please read these instructions carefully and save this document
for future use.

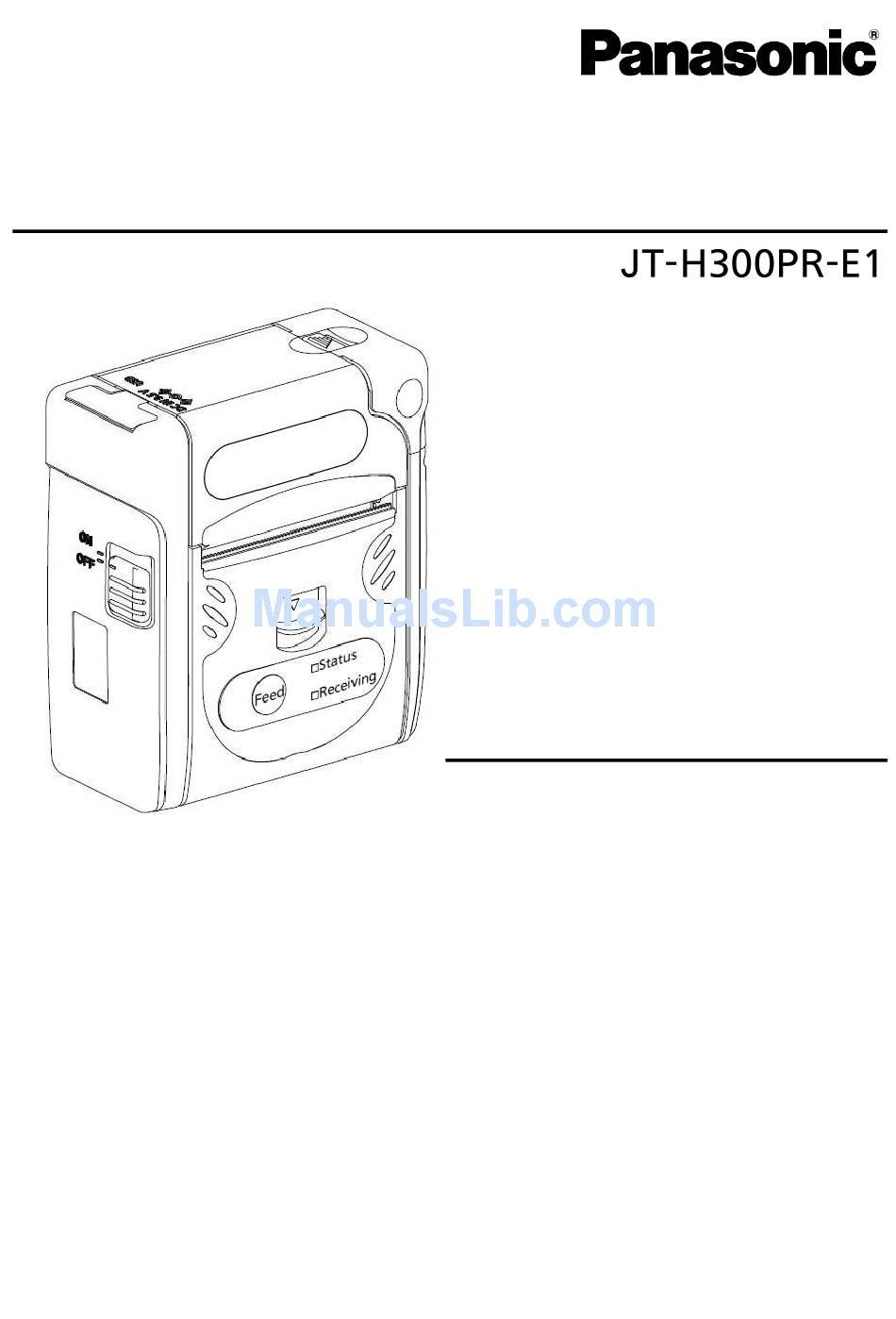

Operating Instructions
Operating Instructions
Operating Instructions
Operating Instructions
Model No.
Contents
Read Me First ............................................. 2
1. Getting Started ....................................... 3
Precautions............................................... 3
Name of each part & function ................... 7
2. Operation ................................................ 8
Battery Installation .................................... 8
Paper Installation...................................... 9
AC cable Set Up ..................................... 10
Charging Battery......................................11
3. Appendix............................................... 12
Troubleshooting ...................................... 12
How to care............................................. 13
How to attach the Option parts ............... 13
Specifications.......................................... 14
Warranty Policy....................................... 16
Compliance Notice.................................. 17
For USA.................................................. 18
For CANADA .......................................... 19
P P P P rinter
rinter
rinter
rinter
Advertisement
Table of Contents
Related Manuals for Panasonic JT-H300PR-E1
Summary of Contents for Panasonic JT-H300PR-E1
-
Page 1: Table Of Contents
Operating Instructions Operating Instructions Operating Instructions Operating Instructions P P P P rinter rinter rinter rinter Model No. Contents Read Me First ..........2 1. Getting Started ........3 Precautions..........3 Name of each part & function ....7 2. Operation ..........8 Battery Installation ........ -
Page 2: Read Me First
Read Me First Introduction Thank you for purchasing the series Panasonic Printer. JT-H300PR This manual describes the instructions for the printer. Please read this manual carefully before using this product. This Printer is equipped with “Bluetooth” wireless communication. [Class1 Device] What’s in the Box? -
Page 3: Getting Started
1. Getting Started Precautions [Printer: 1. Avoid Radio Frequency Interference Do not place the printer near a television or radio receiver. 2. Avoid Stacking Do not place heavy objects on the printer. 3. Keep Small Objects Away Do not insert paper clips or other small objects into the printer. Failure to observe this may cause heat or fire. - Page 4 Precautions [Battery Pack: 1. Avoid Heat Do not throw the battery pack into a fire, heat above 140° F (60° C) or incinerate. Failure to observe this may cause fire or explosion. 2. Keep Articles Away Do not place the battery pack together with articles such as necklaces or hairpins when carrying or storing.
- Page 5 Precautions [Li-ion Battery Charger: 1. Keep Small Object Away Do not insert paper clips or other small object into charger. Failure to observe this may cause fire or electric shock. 2. Do Not Disassemble the Charger Do not attempt to disassemble the charger. Failure to observe this may cause fire. 3.
- Page 6 Precautions [AC Adaptor: 1. Do Not Disassemble Do not attempt to disassemble the charger. Failure to observe this may cause electric shock or fire. 2. Keep Dry Failure to observe this may cause heat or fire. 3. Do Not Use With Any Other Device The AC Adaptor is designed for the specified JT-H300PR / JT-H340PR printer.
-
Page 7: Name Of Each Part & Function
Name of each part & function Paper Out Status LED Paper Cover Power Lever Switch Status Feed Receiving IrDA I/F Receiving LED Feed (Press button to feed paper) Paper Cover DC IN 9.5 V Jack USB Connector Battery Cover Lever Indicate Status Normal status. -
Page 8: Operation
2. Operation Battery Installation <Open the Battery Cover> 1) Turn Off Power Switch 2) Slide Battery Cover Lever 3) Pull the Battery Cover up 4) Open the Battery Cover 5) Slide and insert the Battery completely to the printer. <Close the Battery Cover> 1) Close the Battery Cover 2) Push down the Battery Cover. -
Page 9: Paper Installation
Paper Installation 1) Slide the Paper Cover Lever 2) Open the Paper Cover 3) Install Paper (Paper must be tightly rolled and be confirmed that dust/sand is not on.) 4) Close the Paper Cover (Make sure that the Cover is closed completely.) 3) Paper... -
Page 10: Ac Cable Set Up
AC cable Set Up Please attach the core to the AC cable, before using the AC adaptor. The core is included in the AC adaptor (JT-H300AD-P1). AC Adaptor How to connect USB cable 1) Pull the Connector Cover. 2) Connect the plug of USB cable (JT-H300CC-P1), to the USB connector of the printer. <Note>... -
Page 11: Charging Battery
Charging Battery [By Battery Charger] 1) Put the Battery on the Charger slot and slide to direction. 2) When charging, Charger LED blinks green. When charging is completed, Charger LED constantly lights green. Charging function is limited to one Battery at any moment even if two Batteries are set to the Charger. -
Page 12: Appendix
3. Appendix Troubleshooting Symptom Possible Cause Solution No Power in 1. Has the battery fully inserted? 1. Insert the battery fully. Printer 2. Is the Power Switch on? 2. Move the Power Switch on. 1. Is the power turned on? 1. -
Page 13: How To Care
How to care <How to clean up the thermal head and the rubber roller > Push the paper cover lever to open the paper cover. Wipe off any dust/dirt using the cotton swab with a small amount of alcohol (ethanol). (Do not use thinner, benzene series or kerosene series.) Close the cover after alcohol volatilizes. -
Page 14: Specifications
Battery Pack : JT-H340BT-E1 AC Adaptor DC 9.5 V AC Adaptor JT-H300AD-P1 (for charging) Battery Life 1,000 pcs printing after 10 hours standby (Panasonic T est Standard Environment Operating 0 to 40 ° C / 32 to 104 ° F (without paper) -
Page 15: Battery Charger
Printing Area: less than 20 % per piece) *2: Connectivity of this printer with some equipment (PC, Handheld Computer) made by Panasonic has confirmed. This printer may not connect the other equipments. Some PC or Handheld Computer is confirmed the communication with this printer via I/F (Bluetooth, IrDA or USB) works correctly. - Page 16 *4 : AC cord is not attached. [AC Cord: Items Description Specifications Power Type Standard of Max. AC 125 V applicable Length Approx. 1.8 m *1: JT-H300AC-U0; North America version. Please contact Panasonic sales office for the Europe version AC code.
-
Page 17: Warranty Policy
EN 55022 (Class B), EN 55024, EN 61000-3-2, EN 61000-3-3 EN 301 489-1, EN 301 489-17 Importer’s name and address to follow EU rules: Panasonic T esting Centre Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, F. R. Germany... -
Page 18: For Usa
For USA Federal Communications Commission Notices This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 19: For Canada
For CANADA Industry Canada Statement This device complies with Industry Canada ICES-003 and RSS210 rules. Operation is subject to the following two conditions: 1. This device may not cause interference and 2. This device must accept any interference, including interference that may cause undesired operation of the device. - Page 20 WEEE [EN] Information for Users on Collection and Disposal of Old Equipment and used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.
- Page 21 [CZ] Informace pro spotřebitele o sběru a likvidaci odpadu z elektrických a elektronických zařízení a použitých baterií z domácností. Tyto symboly na výrobcích, obalech nebo v pr vodní dokumentaci znamenají, že použitá elektrická a elektronická za ízení a baterie nepat í do b žného domácího odpadu. Správná...
- Page 22 [DA] Brugerinformation om indsamling og bortskaffelsse af elektronikskrot og brugte batterier Disse symboler på produkter, emballage og/eller ledsagedokumenter betyder, at brugte elektriske og elektroniske produkter og batterier ikke må smides ud som almindeligt husholdningsaffald. Sådanne gamle produkter og batterier skal indleveres til behandling, genvinding resp. recycling i henhold til gældende nationale bestemmelser samt direktiverne 2002/96/EF og 2006/66/EF.
- Page 23 [IT] Informazioni per gli utenti sulla raccolta e l’eliminazione di vecchie apparecchiature e batterie usate Questi simboli sui prodotti, sull’imballaggio, e/o sulle documentazioni o manuali accompagnanti i prodotti indicano che i prodotti elettrici, elettronici e le batterie usate non devono essere buttati nei rifiuti domestici generici. Per un trattamento adeguato, recupero e riciclaggio di vecchi prodotti e batterie usate, vi preghiamo di portarli negli appositi punti di raccolta, secondo la legislazione vigente nel vostro Paese e le Direttive 2002/96/EC e 2006/66/EC.
- Page 24 [SW] Information för användare om hopsamling och avfallshantering av gammalt material och använda batterier Dessa symboler på produkter, förpackningar och/eller medföljande dokument betyder att man inte ska blanda elektriska och elektroniska produkter eller batterier med vanliga hushållssopor. För att gamla produkter och använda batterier ska hanteras och återvinnas på rätt sätt ska man ta dem till passande uppsamlingsställe i enlighet med nationella bestämmelser och direktiven 2002/96/EC och 2006/66/EC.
- Page 25 [NW] Informasjon om kassering i land utenfor den Europeiske Union Dette symbolet er kun gyldig i den Europeiske Union. Hvis du ønsker å kassere dette produktet, må du ta kontakt med forhandleren eller de lokale myndigheter og spørre dem om hvordan det skal kasseres på riktig måte. [Ara] [CS] 在欧盟以外其它国家的...
- Page 26 The operation instructions can be downloaded from following URL. http://www.panasonic.net/pss/ht/jt-h300pr.html Specifications and manuals are subject to change without notice. Panasonic System Networks Co., Ltd. Web Site: http://panasonic.net/ Printed in Japan © Panasonic System Networks Co., Ltd. 2010 – 2011 3TR006597AAB P0810-0...
