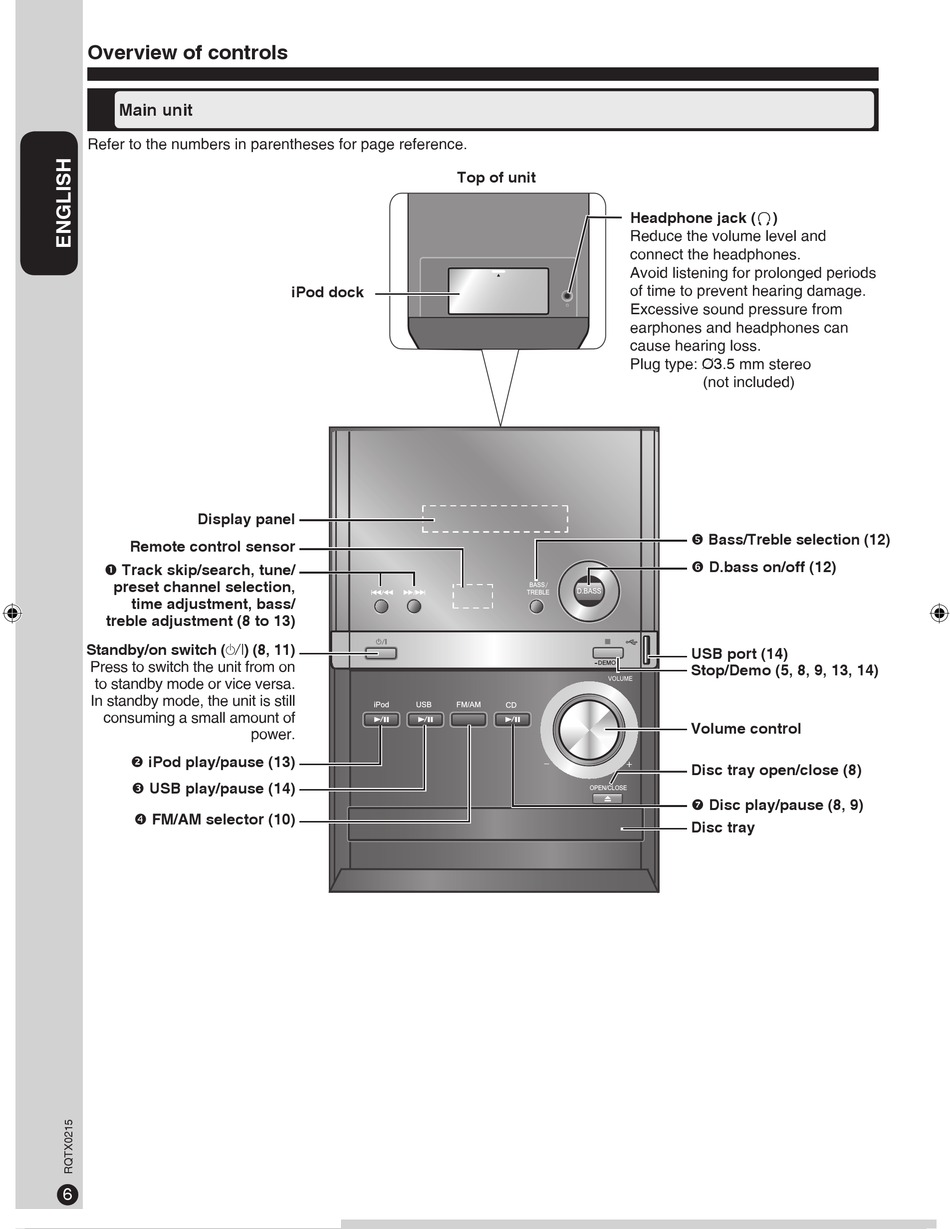

Overview of controls

Main unit
Refer to the numbers in parentheses for page reference.
Display panel
Remote control sensor
 Track skip/search, tune/
preset channel selection,
time adjustment, bass/
treble adjustment (8 to 13)
Standby/on switch (8) (8, 11)
Press to switch the unit from on
to standby mode or vice versa.
In standby mode, the unit is still
consuming a small amount of
 iPod play/pause (13)
 USB play/pause (14)
 FM/AM selector (10)
6
iPod dock
iPod
/
power.
Top of unit
BASS
D.BASS
TREBLE
USB
FM/AM CD
/ /
_
Headphone jack (
Reduce the volume level and
connect the headphones.
Avoid listening for prolonged periods
of time to prevent hearing damage.
Excessive sound pressure from
earphones and headphones can
cause hearing loss.
Plug type: Ø3.5 mm stereo
(not included)
 Bass/Treble selection (12)
 D.bass on/off (12)
USB port (14)
DEMO
Stop/Demo (5, 8, 9, 13, 14)
VOLUME VOLUME
Volume control
+
Disc tray open/close (8)
OPEN/CLOSE
 Disc play/pause (8, 9)
Disc tray
)
