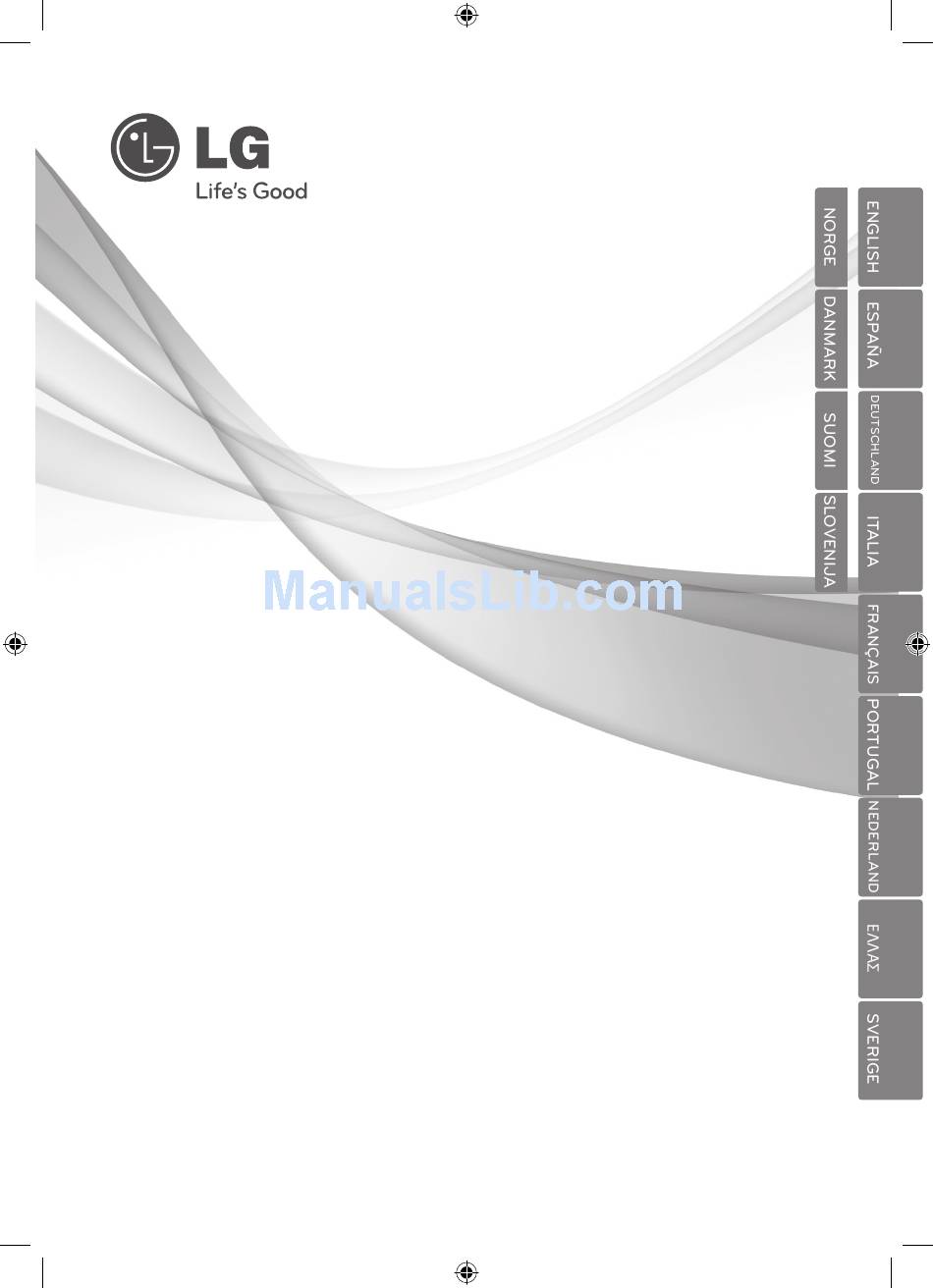

OWNER'S MANUAL
SXS
REFRIGERATOR
Please read this manual carefully before operating
your set and retain it for future reference.
www.lge.com
P/N: MFL62880462

Advertisement

Table of Contents
loading

Related Manuals for LG SXS Refrigerator

Summary of Contents for LG SXS Refrigerator

  • Page 1 OWNER’S MANUAL REFRIGERATOR Please read this manual carefully before operating your set and retain it for future reference. www.lge.com P/N: MFL62880462...
  • Page 3 Electrical Connections (In the UK Only) Important The wires in this mains lead are coloured in accordance with the following code: GREEN AND YELLOW:EARTH BLUE:NEUTRAL BROWN:LIVE This appliance must be earthed Green and Yellow (Earth) Brown(Live) Fuse Blue(Neutral) Cord grip As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Green and Yellow must be connected to the terminal in the plug...

  • Page 4: Table Of Contents

    Table of contents Introduction Introduction Important safety instructions Identification of parts Installation Where to install Door removal Door replacement Feed water pipe installation Height adjustment Starting Operation Adjusting the temperature and functions Refreshment center (Applicable to some models only) No Plumbing Ice & Water (Applicable to some models only) Shelf (Applicable to some models only) Wine holder (Applicable to some models only) Egg box...

  • Page 5: Introduction

    Introduction Entry The model and serial numbers are found on the inner case on the back or one side of the refrigerator compartment of this unit. These numbers are unique to this unit and are not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.
  • Page 6 Introduction Child entrapment DANGER: Risk of child entrapment. Warning Before you dispose of your old refrigerator please remove doors but leave the shelves in place so that children cannot climb inside. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 7: Identification Of Parts

    Introduction Identification of parts *Non dispenser model - Type 1 Freezer Refrigerator Compartment Compartment Dairy Corner Space plus Lamp Shelf Door rack Shelf Door rack Lamp Shelf Shelf (folding or normal) Shelf Shelf Ice Maker Door rack Vegetable drawer Door rack Door rack Drawer Door rack...
  • Page 8 Introduction *Dispenser model - Type 1 Freezer Refrigerator Compartment Compartment Dairy Corner Space plus Lamp Filter (Internal filter model only) Door rack Automatic Shelf ice maker Lamp Door rack Shelf Shelf (folding or normal) Shelf Shelf Door rack Vegetable drawer Door rack Door rack Drawer...
  • Page 9 Introduction *Dispenser model - Type 3 Freezer Refrigerator Extra door Compartment Compartment rack(option) Dairy Corner Lamp Shelf Automatic Wine rack (Plastic or wire) (Optional) Door rack Icemaker Shelf Shelf Lamp Can Server (Optional) Shelf or Drawer Snack Drawer (Optional) Refreshment Centre (Optional) Guide pitcher (Optional) Shelf...

  • Page 10: Installation

    Installation Where to install 1. Place your appliance where it is easy to use. Select a good 2. Avoid placing the unit near heat sources, di- location rect sunlight or moisture. Do not operate the appliance outdoors where it can be exposed directly, or indirectly to sun, wind and rain.

  • Page 11: Door Replacement

    Installation 3) Remove the freezer compartment door by lifting it upward. The door should be lifted high enough for the feed water Enough for pipe tube to be completely pulled out. water feed pipe tube to be completly pulled out Lower cover NOTE •...

  • Page 12: Feed Water Pipe Installation

    Installation Feed water pipe installation (Dispenser model only) Before ▪Automatic ice maker operation needs water pressure of 147~834kPa (1.5~8.5kgf/cm2) (The pressure is correct when an instant paper cup (180cc) is installation filled in 3 sec.). ▪If water pressure does not reach the rating 147kPa(1.5kgf/cm ) or below, it is necessary to purchase a separate pressure pump for normal automatic icing and cool water feed.
  • Page 13 Installation After levelling The refrigerator doors will close smoothly by adjusting the front side using the height adjustment screw. If the doors do not close correctly, performance may be the door height affected. 1. Wipe off all dust accumulated during shipping and clean your appliance Next thoroughly.

  • Page 14: Operation

    Operation Starting When your refrigerator is first installed, allow it to stabilize at normal operating temperatures for 2-3 hours prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting. Adjusting the temperature and functions *Non dispenser model - Type 1 Optional Function display board...
  • Page 15 Operation *Non dispenser model - Type 2 Refreshment Centre Button Refreshment Centre (Applicable to some models only) Optional Function display board Type-1 Display Power Saving Mode Type-2 NOTE • Your model may not include every option.
  • Page 16 Operation *Dispenser model - Type 1 Water/Ice output Dispenser push switch Refreshment Center Optional Function display board Type-1 Temperature adjustment button Temperature adjustment button Display Saving Mode for freezer compartment. for refrigerator compartment. Type-2 Display Saving Mode Type-3 LIGHT/ Express freezer. Filter reset button.
  • Page 17 Operation *Dispenser model - Type 2 Refreshment Center Button Water/Ice output Dispenser push switch Refreshment Center (Applicable to some models only) Dispenser Lamp (hidden) Optional Function display board Type-1 Display Power Saving Mode Display Power Saving Mode Type-2 Display Power Saving Mode Type-3 NOTE •...
  • Page 18 Operation Display power- This function save the display power Press the FREEZER and EXPRESS FRZ. buttons simultaneously and hold them for saving (on some 5 seconds until the Ding sounds. All LED/LCDs will then turn ON, then OFF. When model) the power saving mode is activated, the display will remain off until the next time the door is opened.
  • Page 19 Operation *Dispenser model - Type 3 Refreshment Center Button Water/Ice output Dispenser push switch Refreshment Center (Applicable to some models only) Dispenser Lamp (hidden) Type 1 Type 2 Type 3 Display Power Saving Mode NOTE • Your model may not include every option. •...
  • Page 20 Operation Display Power Saving Mode Press the FREEZER and EXPRESS FRZ. buttons simultaneously and hold them for 5 seconds until the Ding sounds. All LED/LCDs will then turn ON, then OFF. When the power saving mode is activated, the display will remain off until the next time the door is opened.
  • Page 21 Operation It is possible to select water or ice Dispenser use *Select water and cubed ice by pressing the (on some model) relevant button *Activate the dispenser by using a cup to press against it ▪ The function selected is highlighted on the panel.
  • Page 22 Operation Door mounted automatic icemaker (on some model) Power Switch Feeler Arm ▪ The icemaker automatically makes 6 cubes of ice at any one time, which equals approximately 50-60 cubes per day. These quantities, however, may vary according to climatic conditions. E.g. the duration and amount of times the refrigerator door is opened.
  • Page 23 Operation When the ice dispenser will not operate properly It is normal that the ice maker will not operate correctly when there is only a small amount of ice left in the storage bin. Allow approximately one day for the ice maker to restock.
  • Page 24 Operation Express Freeze Please select this function for fast freezing. ▪ OFF→ON→OFF is repeated whenever pressing button. ▪ The arrow graphic remains On after flickering 4 times when selecting Express Freeze ▪ Express Freeze will automatically turn off after a fixed time passes. Lock This button locks the other buttons ▪...
  • Page 25 Operation The other Door open warning ▪ A warning bleep will sound 3 times every 30 seconds if the main or minibar door is functions left open or ajar for more than a minute. ▪ Please contact your local service centre if the warning continues to sound when the door is closed.

  • Page 26: Refreshment Center (Applicable To Some Models Only)

    Operation Freezer basket Two stars section (Applicable to some models only) (two stars section) ▪ Two stars means the temperature in the section is -12°C~ -18°C. ▪ Freezer foods for short-term storage. Refreshment center(Applicable to some models only) Open the minibar door. ▪...

  • Page 27: No Plumbing Ice & Water (Applicable To Some Models Only)

    Operation No Plumbing Ice & Water (Applicable to some models only) Store water in the water tank to use the Auto Ice Maker function and Water Dispenser function without having to connect the water pipe to the refrigerator. The other To disassemble the water tank OPTION 1 functions...

  • Page 28: Shelf (Applicable To Some Models Only)

    Operation Shelf (Applicable to some models only) Folding Shelf You can store taller items such as a gallon container or bottles by simply pushing in front half of shelf underneath back half of shelf. Pull toward you to return to a full shelf. Wine holder (Applicable to some models only) Wine holder Bottles can be stored laterally with this...

  • Page 29: Humidity Control In The Vegetable Compartment

    Operation Humidity control in the vegetable compartment (Applicable to some models only) The humidity can be controlled by adjusting the humidity control switch to the left/right when storing vegetables or fruits. High humidity Low humidity Convert into a vegetable or meat compartment (Applicable to some models only) ▪...

  • Page 30: Deodorizer(Applicable To Some Models Only)

    Operation Deodorizer (Applicable to some models only) This system efficiently absorbs strong odours by using an optical catalyst. This Deodorizing system system does not have any affect on stored Vegetable food. compartment Opti Temp Zone (Optional) / Fresh Compartment (Optional) ▪...

  • Page 31: Opti Temp Zone Temperature Transition Corner (Applicable To Some Models Only)

    Operation Opti Temp Zone Temperature Transition Corner (Applicable to some models only) By pressing the button, store vegetables, fruits or other types of food such as defrosting meat, raw fish, etc. Temperature Change at Opti Temp Zone (Applicable to some models only) Method to use You can select optimum temperature range depending on types of foods...

  • Page 32: Suggestion On

    Suggestion on food storage Sugg Location of foods (Refer to identification of parts) Wine holder Store wine. Snack drawer Store small foods such as bread, snacks, etc.. Freezer Store various frozen foods such as meat, fish,ice cream, compartment frozen snacks, etc.. shelf Freezer ▪...

  • Page 33: Storing Foods

    Suggestion on food storage Storing foods ▪ Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavour. ▪ Do not store food which goes bad easily at low temperatures, such as bananas, and melons.

  • Page 34: Care And

    Care and maintenance Care How to dismantle parts NOTE • Dismantle by reversing the assembly instructions. Be sure to unplug the power plug before dismantling and assembly. Never apply severe force to dismantle parts. Parts may be damaged. Separate the lamp by pulling it out while Freezer slightly pressing...
  • Page 35 Care and maintenance ▪ Separate the bin to upward. Refreshment centre ① ▪ Separate the upper rack of the minibar and then (Applicable to some pull out the minibar cover ②. models only) ▪ The minibar can be removed by pulling it upwards.

  • Page 36: General Information

    Care and maintenance Care General information Vacation time During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan not to operate, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odour formation.
  • Page 37 Care and maintenance General information Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Occurrence Possible cause Solution Running of refrigerator Refrigerator control is off.
  • Page 38 Care and maintenance Care Occurrence Possible cause Solution Refrigerator compressor Thermostat is keeping the refrigerator at a Set refrigerator control. See setting the does not run constant temperature. controls. Temperatures are too cold Temperature in the Freezer control is set too cold Set freezer control to a warmer setting freezer is too cold until the freezer temperature is...
  • Page 39 Care and maintenance Occurrence Possible cause Solution Sound and noise Louder sound levels when Today’s refrigerators have increased It is normal for sound levels to be refrigerator is on. storage capacity and maintain more even higher. temperatures. Louder sound levels Refrigerator operates at higher pressures This is normal.
  • Page 40 Care and maintenance Care Occurrence Possible cause Solution Odours in refrigerator Interior needs to be cleaned. Clean interior with sponge,warm water and baking soda. Food with strong odour is in the refrigerator. Cover food completely. Some containers and wrapping materials Use a different container or brand of produce odours.

  • Page 41: Disposal Of Your Old Appliance

    Care and maintenance Occurrence Possible cause Solution Dispenser will not Ice has melted and frozen around auger due Remove ice storage bin, and thaw and dispense ice. the contents. Clean bin, wipe dry and to infrequent use, temperature fluctuations replace in proper position. When new and/or power outrages.
