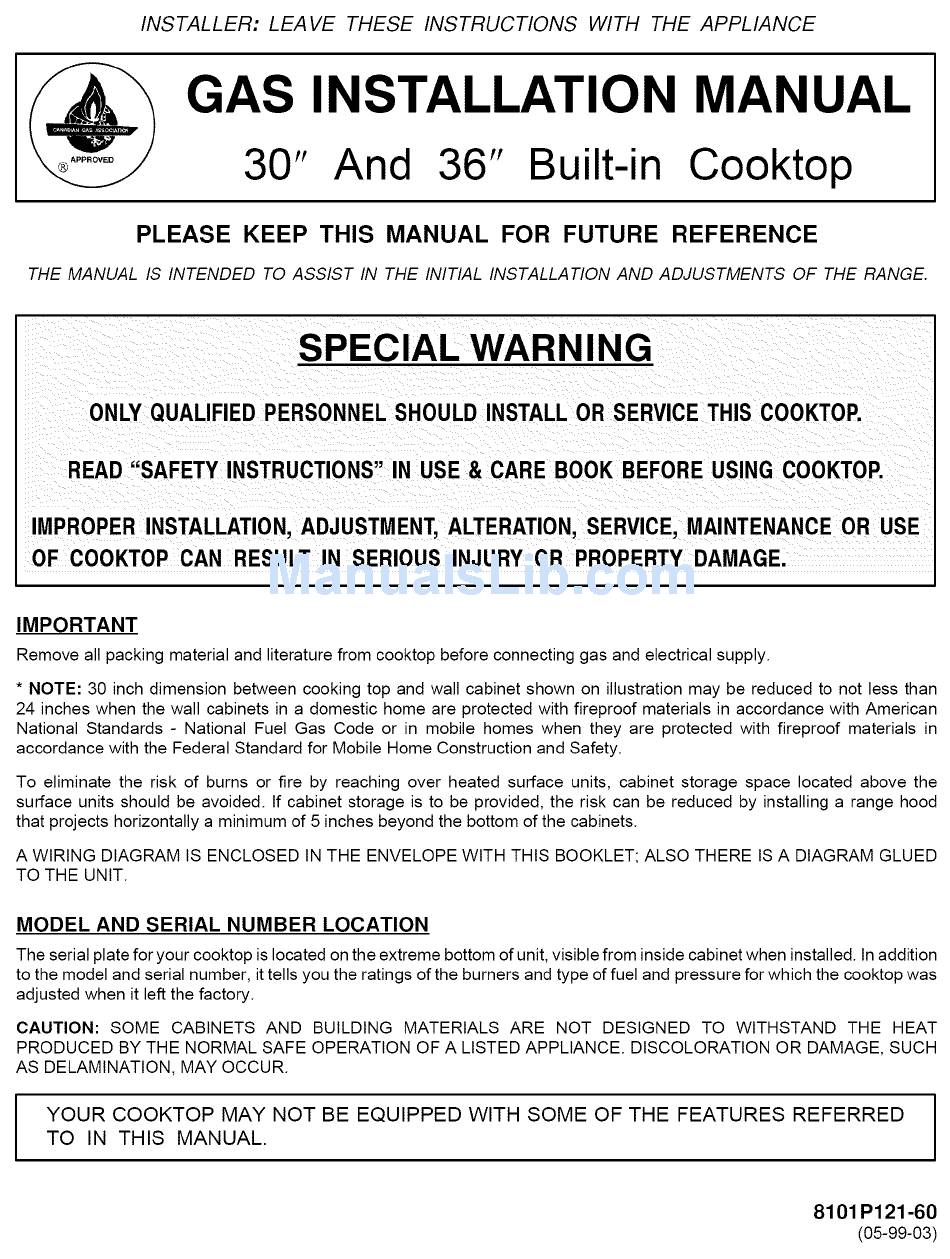

INSTALLER:
LEAVE
THESE
INSTRUCTIONS
WITH THE APPLIANCE
GAS INSTALLATION MANUAL
30" And 36" Built-in Cooktop
PLEASE
KEEP THIS
MANUAL
FOR FUTURE
REFERENCE
THE MANUAL IS INTENDED
TO ASSIST IN THE INITIAL INSTALLATION
AND ADJUSTMENTS
OF THE RANGE.
SPECIAL WARNING
ONLY QUALIFIED PERSONNEL SHOULD INSTALL OR SERVICE THIS COOKTOR
READ "SAFETY INSTRUCTIONS" IN USE & CARE BOOK BEFORE USING COOKTOP.
IMPROPER INSTALLATION,ADJUSTMENT,ALTERATION,SERVICE, MAINTENANCE OR USE
OF COOKTOP CAN RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE.
IMPORTANT
Remove all packing material and literature from cooktop before connecting gas and electrical supply.
* NOTE: 30 inch dimension between cooking top and wall cabinet shown on illustration may be reduced to not less than
24 inches when the wall cabinets in a domestic home are protected with fireproof materials in accordance with American
National Standards - National Fuel Gas Code or in mobile homes when they are protected with fireproof materials in
accordance with the Federal Standard for Mobile Home Construction and Safety.
To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space located above the
surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood
that projects horizontally a minimum of 5 inches beyond the bottom of the cabinets.
A WIRING DIAGRAM IS ENCLOSED IN THE ENVELOPE WITH THIS BOOKLET; ALSO THERE IS A DIAGRAM GLUED
TO THE UNIT.
MODEL
AND SERIAL
NUMBER
LOCATION
The serial plate for your cooktop is located on the extreme bottom of unit, visible from inside cabinet when installed. In addition
to the model and serial number, it tells you the ratings of the burners and type of fuel and pressure for which the cooktop was
adjusted when it left the factory.
CAUTION:
SOME
CABINETS
AND BUILDING
MATERIALS
ARE
NOT DESIGNED
TO WITHSTAND
THE HEAT
PRODUCED BY THE NORMAL SAFE OPERATION OF A LISTED APPLIANCE. DISCOLORATION
OR DAMAGE, SUCH
AS DELAMINATION,
MAY OCCUR.
YOUR COOKTOP
MAY NOT BE EQUIPPED
WITH SOME OF THE FEATURES
REFERRED
TO IN THIS
MANUAL.
8101 P121-60
(05-99-03)
