Maytag CGC2430AD series Technical Information

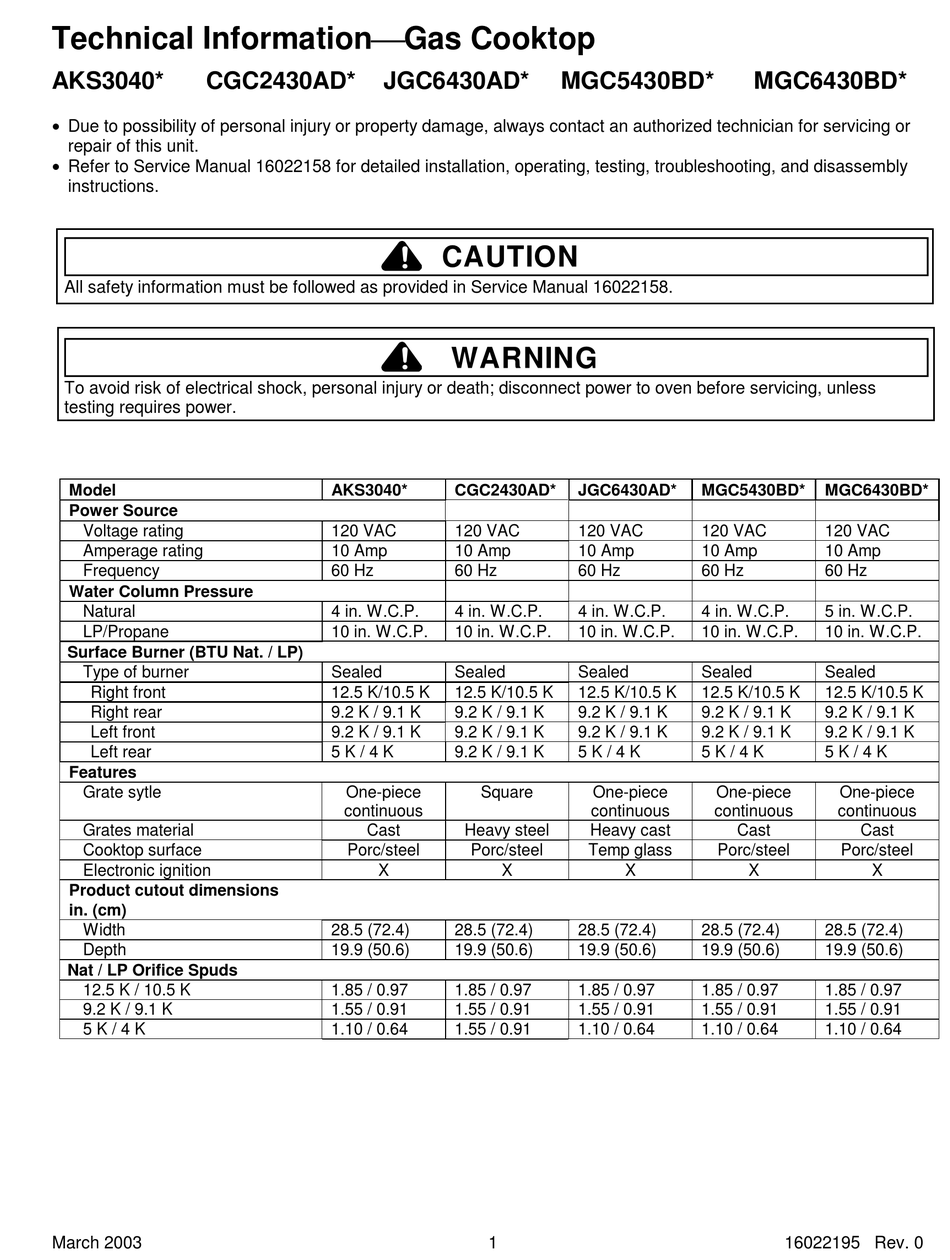

Technical InformationGas Cooktop
AKS3040* CGC2430AD*
• Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or
repair of this unit.
• Refer to Service Manual 16022158 for detailed installation, operating, testing, troubleshooting, and disassembly
instructions.
All safety information must be followed as provided in Service Manual 16022158.
To avoid risk of electrical shock, personal injury or death; disconnect power to oven before servicing, unless
testing requires power.
Model
Power Source
Voltage rating
Amperage rating
Frequency
Water Column Pressure
Natural
LP/Propane
Surface Burner (BTU Nat. / LP)
Type of burner
Right front
Right rear
Left front
Left rear
Features
Grate sytle
Grates material
Cooktop surface
Electronic ignition
Product cutout dimensions
in. (cm)
Width
Depth
Nat / LP Orifice Spuds
12.5 K / 10.5 K
9.2 K / 9.1 K
5 K / 4 K
March 2003
JGC6430AD*
!
CAUTION
!
WARNING
AKS3040* CGC2430AD*
120 VAC 120 VAC
10 Amp 10 Amp
60 Hz 60 Hz
4 in. W.C.P. 4 in. W.C.P.
10 in. W.C.P. 10 in. W.C.P.
Sealed Sealed
12.5 K/10.5 K 12.5 K/10.5 K
9.2 K / 9.1 K 9.2 K / 9.1 K
9.2 K / 9.1 K 9.2 K / 9.1 K
5 K / 4 K 9.2 K / 9.1 K
One-piece Square
continuous
Cast Heavy steel
Porc/steel Porc/steel
X X
28.5 (72.4) 28.5 (72.4)
19.9 (50.6) 19.9 (50.6)
1.85 / 0.97 1.85 / 0.97
1.55 / 0.91 1.55 / 0.91
1.10 / 0.64 1.55 / 0.91
1
MGC5430BD*
JGC6430AD* MGC5430BD*
120 VAC 120 VAC
10 Amp 10 Amp
60 Hz 60 Hz
4 in. W.C.P. 4 in. W.C.P.
10 in. W.C.P. 10 in. W.C.P.
Sealed Sealed
12.5 K/10.5 K 12.5 K/10.5 K
9.2 K / 9.1 K 9.2 K / 9.1 K
9.2 K / 9.1 K 9.2 K / 9.1 K
5 K / 4 K 5 K / 4 K
One-piece One-piece
continuous continuous
Heavy cast Cast
Temp glass Porc/steel
X
28.5 (72.4) 28.5 (72.4)
19.9 (50.6) 19.9 (50.6)
1.85 / 0.97 1.85 / 0.97
1.55 / 0.91 1.55 / 0.91
1.10 / 0.64 1.10 / 0.64
MGC6430BD*
MGC6430BD*
120 VAC
10 Amp
60 Hz
5 in. W.C.P.
10 in. W.C.P.
Sealed
12.5 K/10.5 K
9.2 K / 9.1 K
9.2 K / 9.1 K
5 K / 4 K
One-piece
continuous
Cast
Porc/steel
X X
28.5 (72.4)
19.9 (50.6)
1.85 / 0.97
1.55 / 0.91
1.10 / 0.64
16022195 Rev. 0
