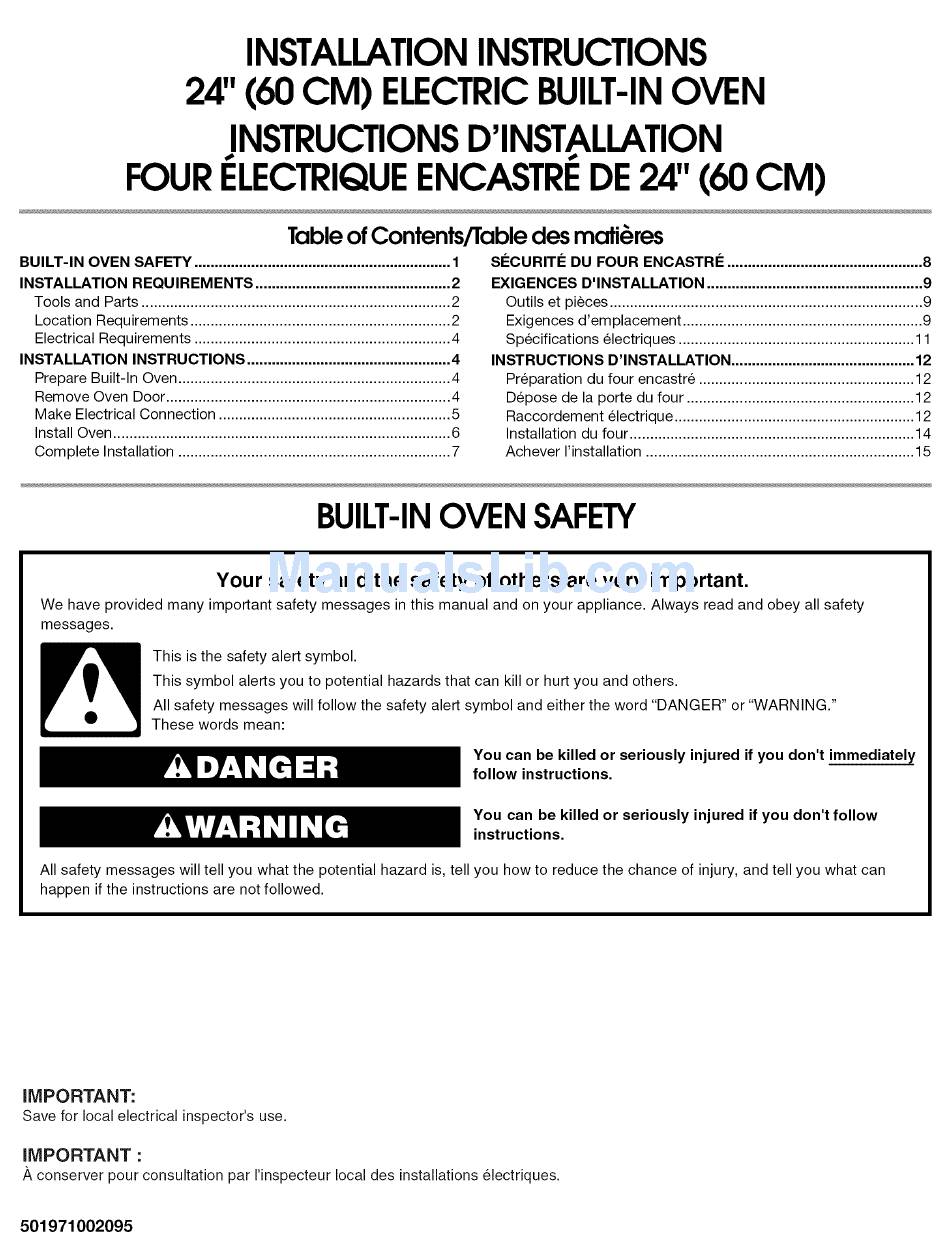

INSTALLATION INSTRUCTIONS
24" (60 CM) ELECTRIC BUILT-IN OVEN
INSTRUCTIONS D'INSTALLATION
e=
e=
FOURELECTRIQUE E NCASTRE DE24" (60 CM)
Tableof Contents/Table des mati@res
BUILT-IN OVEN SAFETY ...............................................................
1
................................................
2
Tools and Parts ............................................................................
2
Location Requirements ................................................................
2
Electrical Requirements ...............................................................
4
INSTRUCTIONS ..................................................
4
Prepare Built-In Oven ...................................................................
4
Remove Oven Door ......................................................................
4
Make Electrical Connection .........................................................
5
Install Oven ...................................................................................
6
Complete Installation ...................................................................
7
SI_CURITI_ DU FOUR ENCASTRI_ ................................................
8
EXIGENCES D'INSTALLATION .....................................................
9
Outils et pieces .............................................................................
9
Exigences d'emplacement ...........................................................
9
electriques ..........................................................
11
D'INSTALLATION .............................................
12
Preparation du four encastre .....................................................
12
Depose de la porte du four ........................................................
12
Raccordement electrique ...........................................................
12
Installation du four ......................................................................
14
Achever I'installation ..................................................................
15
BUILT-IN OVEN SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow
instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
iMPORTANT:
Save for local electrical inspector's use.
iMPORTANT
:
,&, c onserver pour consultation par I'inspecteur local des installations 61ectriques.
