Page 1: Oven Parts

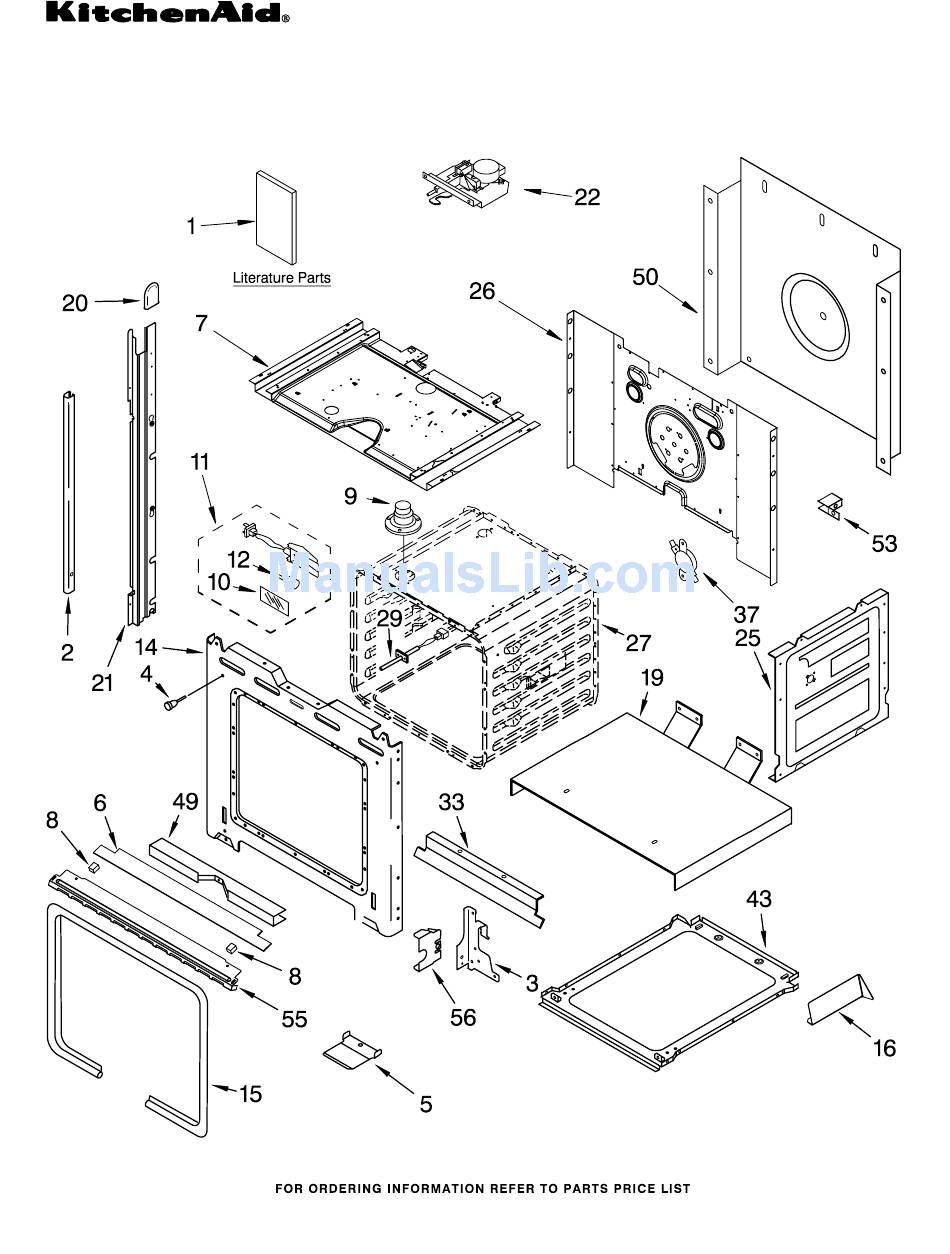

OVEN PARTS 36" BUILT−IN ELECTRIC OVEN For Models: KEBC167MSS00 THERMAL CONVECTION (Stainless Steel) 1−04 Litho in U.S.A.(cre) Part No. 8186173... - Page 2 4455605 Left Hand 4455606 Right Hand 4448520 Bumper, Door 4452489 Deflector, Vent Box 8300154 Insulation 8301784 Top, Chassis 4449809 Screw OVEN PARTS For Models: KEBC167MSS00 (Stainless Steel) Illus. Part DESCRIPTION 4452490 Spacer, Foam 4452158 Tube, Vent 3196176 Screw 4452163 Lens, Light...
-
Page 3: Oven Door Parts
8300152 Door Liner Hinge, Door 8300579 R.Side (Orange) 8300580 L.Side (Orange) 4449743 Screw 8186173 OVEN DOOR PARTS For Models: KEBC167MSS00 (Stainless Steel) Illus. Part DESCRIPTION 4449259 Glass, Inner 8300797 Insulation, Door 4449263 Glass, Inner 4449809 Screw... - Page 4 8301514 Element, Broil 4449154 Screw 3147563 Grill, Broiler 3147845 Pan, Broiler 3181534 Rack, Roasting 8300796 Rack, Oven 8300204 Element, Bake 4449154 Screw For Models: KEBC167MSS00 (Stainless Steel) Illus. Part DESCRIPTION 4452157 Element, Convect. 4449154 Screw 4451583 Motor Convection 4449154 Screw...
-
Page 5: Control Panel Parts
8186173 CONTROL PANEL PARTS For Models: KEBC167MSS00 (Stainless Steel) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. 8301226 Panel, Control 8301236 Switch Membrane 8302322 Assy, Control 4449745 Screw... - Page 6 4451759 Vent, Exhaust 4449809 Screw 4455178 Elbow, Vent−Top 8300223 Blower 4455352 Bracket 4449809 Screw 4451758 Block, Foam TOP VENTING PARTS For Models: KEBC167MSS00 (Stainless Steel) Illus. Part DESCRIPTION 6610122 Transformer, Light 4451985 Suppressor, Transient 4455177 Elbow, Vent−Bottom 4449868 Block, Terminal...
-
Page 7: Optional Parts
830864 Black 4392901 Biscuit ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.) 8186173 OPTIONAL PARTS For Models: KEBC167MSS00 (Stainless Steel) Illus. Part DESCRIPTION SPLICING WIRES−−25FT. LENGTH 242828 Wire (12 Ga. 150 c Black) 242820 Wire (14 Ga.
