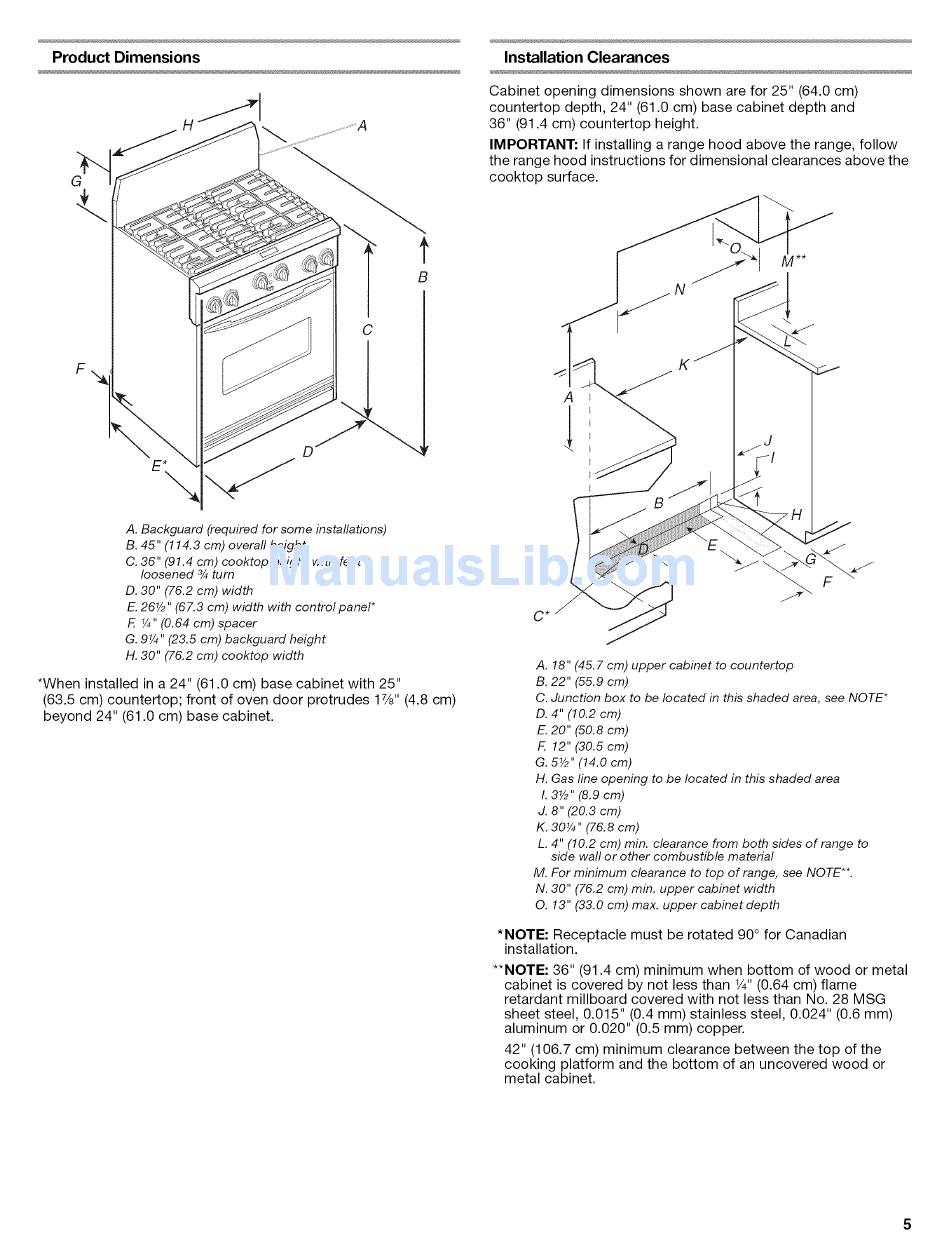

Product Dimensions
G
Installation Clearances
Cabinet opening dimensions shown are for 25" (64.0 cm)
countertop depth, 24" (61.0 cm) base cabinet depth and
36" (91.4 cm) countertop height.
IMPORTANT: If installing a range hood above the range, follow
the range hood instructions for dimensional clearances above the
cooktop surface.
t
B
F
C
A. Backguard (required for some installations)
B. 45" (114.3 cm) overall height
C. 36" (91.4 cm) cooktop height with feet
loosened 3/4turn
D. 30" (76.2 cm) width
E. 26Y2" (67.3 cm) width with control panel*
F. ¼" (0.64 cm) spacer
G. 9¼" (23.5 cm) backguard height
H. 30" (76.2 cm) cooktop width
*When installed in a 24" (61.0 cm) base cabinet with 25"
(63.5 cm) countertop; front of oven door protrudes 17/8"(4.8 cm)
beyond 24" (61.0 cm) base cabinet.
A
N
A. 18" (45. 7 cm) upper cabinet to countertop
B. 22" (55.9 cm)
C. Junction box to be located in this shaded area, see NOTE*
D. 4" (10.2 cm)
E. 20" (50.8 cm)
F. 12" (30.5 cm)
G. 5Y2" (14.0 cm)
H. Gas line opening to be located in this shaded area
I. 3Y2" (8.9 cm)
J. 8" (20.3 cm)
K. 30¼" (76.8 cm)
L. 4" (10.2 cm) min. clearance from both sides of range to
side wall or other combustible material
M. For minimum clearance to top of range, see NOTE**.
N. 30" (76.2 cm) min. upper cabinet width
O. 13" (33.0 cm) max. upper cabinet depth
*NOTE: Receptacle must be rotated 90 ° for Canadian
installation.
**NOTE: 36" (91.4 cm) minimum when bottom of wood or metal
cabinet is covered by not less than 1/4"(0.64 cm) flame
retardant millboard covered with not less than No. 28 MSG
sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm)
aluminum or 0.020" (0.5 mm) copper.
42" (106.7 cm) minimum clearance between the top of the
cooking platform and the bottom of an uncovered wood or
metal cabinet.
