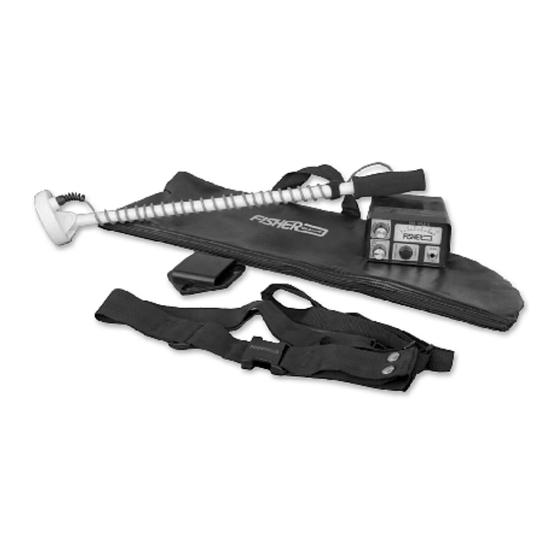

Fisher M-Scope M-101 Operating Manual

Rebar locator & metal probe
Hide thumbs

Advertisement

Quick Links

Download this manual
M-101
Rebar Locator & Metal Probe
YEARS
Operating Manual
F I S H E R
R E S E A R C H
L A B O R A -
T O R Y

Advertisement

loading

Related Manuals for Fisher M-Scope M-101

Summary of Contents for Fisher M-Scope M-101

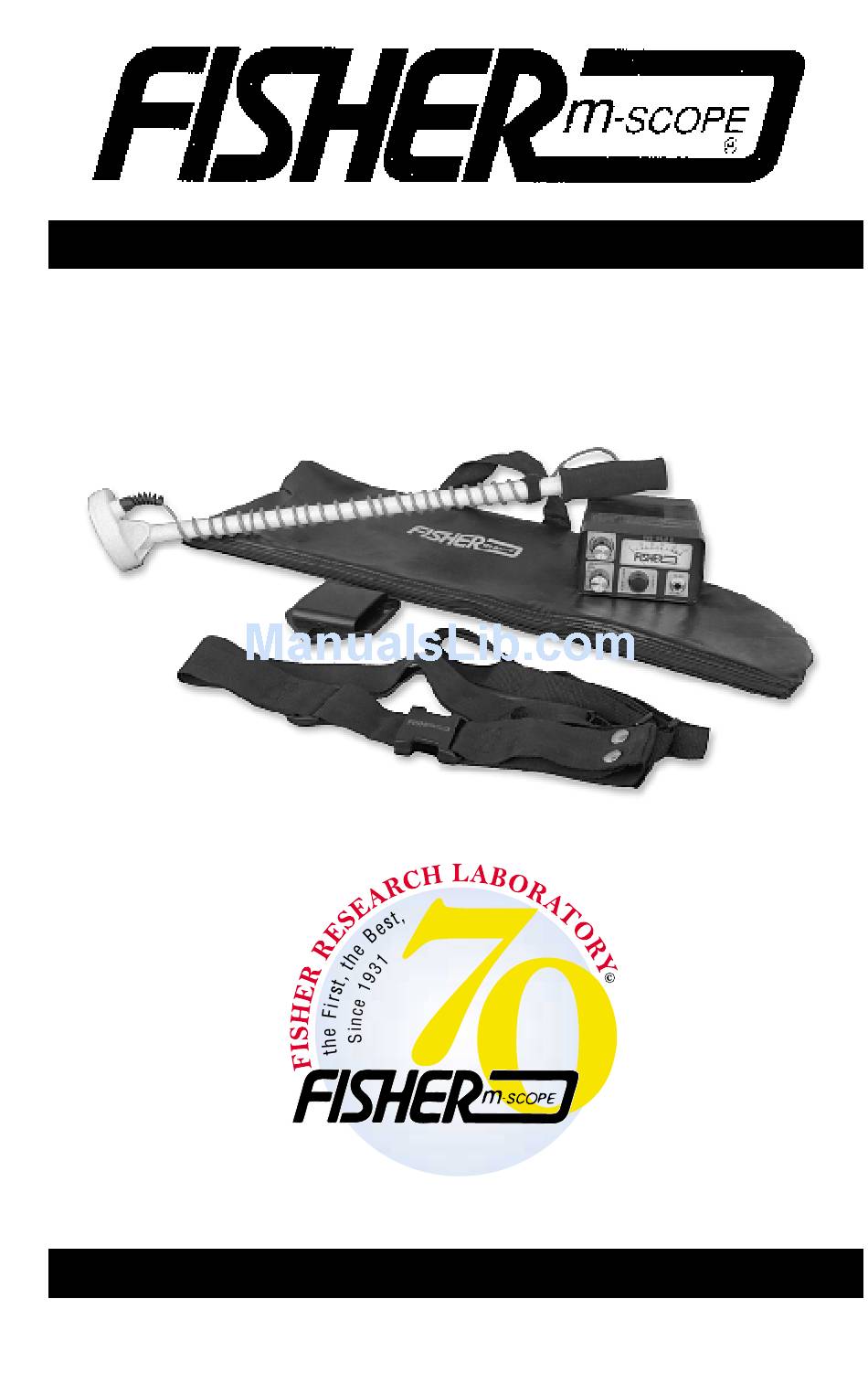

  • Page 1 M-101 Rebar Locator & Metal Probe YEARS Operating Manual F I S H E R R E S E A R C H L A B O R A - T O R Y...

  • Page 2: Table Of Contents

    CONTENTS Introduction ................pg. 2 Control Panel ................. pg. 3 Operation ................pg. 4 Principles of Operation ............pg. 5 Specifications................. pg. 6...

  • Page 3: Introduction

    The M-101 will not respond to non-metallic targets such as plastic or fiberglass. The M-101 is not designed to be a wire or pipe tracer. Fisher Research manufactures other specific equip- ment for that purpose.

  • Page 4: Control Panel

    SENSITIVITY HEAD PHONES Sensitivity This control turns the M-101 On & Off. It also permits a wide range of sensitivity to metal targets. MAXimum position is normally used in the initial scanning and locating operation. MINimum or reduced sensitivity is used to help pinpoint metal objects.

  • Page 5: Operation

    NOTE: Occasionally check the batteries during use, as weak batteries could lead to reduced signal depth. SCANNING Turn the M-101 On (Sensitivity control knob) to the RED arrow. If there is a sound and meter reading, reduce (turn counter-clockwise) the Penetration control, or move search coil away from any nearby metal.

  • Page 6: Principles Of Operation

    PRINCIPLES OF OPERATION When the unit is properly tuned, the M-101 will locate ½ inch (1.25 cm) diameter rebar 8 to 9 inches (20 to 23 cm) from the bottom of the search coil. A larger target can be located deeper, a smaller target shallower.

  • Page 7: Specifications

    Shipping Dimensions: .. 26.5 x 6.25 x 6.25 inches (67 x 16 x 16 cm) Fisher Research Laboratory does not warrant suitability to specific use. Fisher Research Laboratory shall in no event be liable for any direct, inciden- tal, consequential or indirect damages.
  • Page 8 R E P U T A T I O N Fisher produced the first patented metal detector in 1931. For over 70 years, the Fisher logo has been a mark of excellence. 2 - Y E A R W A R R A N T Y...
