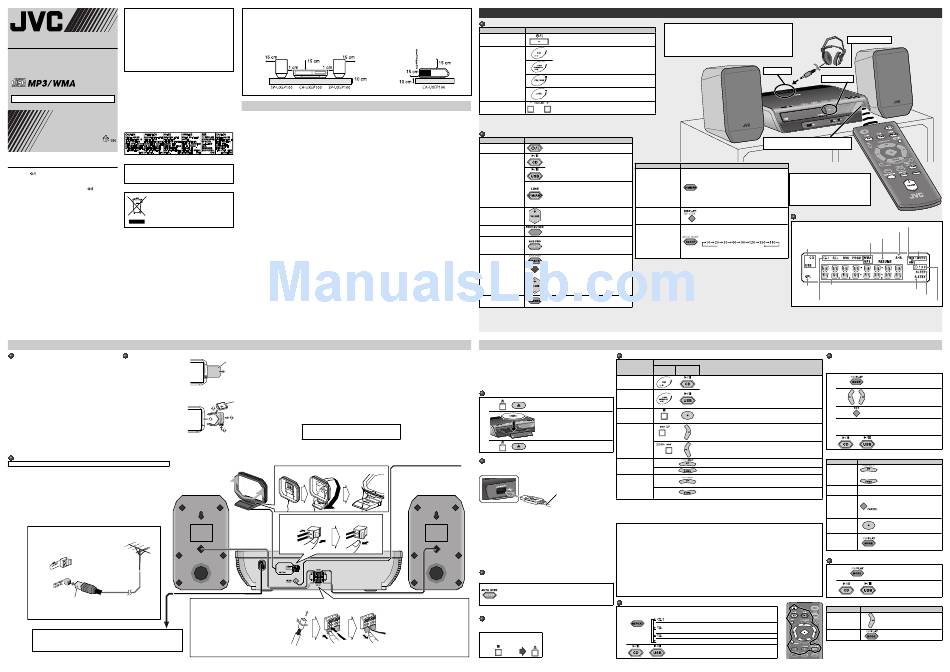

JVC UX-EP100 Instructions

CAUTION:
• Do not block the ventilation openings or holes. (If the
ventilation openings or holes are blocked by a newspaper
or cloth, etc., the heat may not be able to get out.)
• Do not place any naked flame sources, such as lighted
candles, on the apparatus.
MICRO COMPONENT SYSTEM • When discarding batteries, environmental problems
must be considered and local rules or laws governing the
disposal of these batteries must be followed strictly.
UX-EP100
• Do not expose this apparatus to rain, moisture, dripping
or splashing and that no objects filled with liquids, such
—Consists of CA-UXEP100 and SP-UXEP100
as vases, shall be placed on the apparatus.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user
serviceable parts inside the unit; leave all servicing to
Thank you for purchasing a JVC product.
qualified service personnel.
3. CAUTION:
Visible and/or invisible class 1M laser radiation when
INSTRUCTIONS
open. Do not view directly with optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED
GNT0076-017A[US/UB/UW]
INSIDE THE UNIT.
0407WMKMDWJMM
©2007 Victor Company of Japan, Limited
Warnings, Cautions and Others
CAUTION:
Caution — button! Excessive sound pressure from earphones or headphones
Disconnect the mains plug to shut the power off completely can cause hearing loss.
(the STANDBY lamp goes off ). When installing the apparatus,
ensure that the plug is easily accessible. The button in
any position does not disconnect the mains line.
• When the system is on standby, the STANDBY lamp lights
red.
• When the system is turned on, the STANDBY lamp goes off.
[European Union only]
The power can be remote controlled.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
Getting Started
Supplied Accessories Prepare the Remote Control
After unpacking, check to be sure that you have all the When you use the remote control
following items. The number in parentheses indicates the for the first time, pull out the
quantity of each piece supplied. insulation sheet.
• Remote control (x 1)
• Lithium coin battery CR2025 (x 1) (The battery has been
installed when shipped from the factory.)
• AM loop antenna (x 1)
To Replace the Battery in the Remote Control
• FM antenna (x 1)
• AC plug adapter (x 1) (not applicable for Hong Kong)
Insert the battery into the
remote control by matching the
If anything is missing, consult your dealer immediately.
polarity (+ and –) correctly.
Connections
Do not connect the AC power cord until all other connections have been made.
NOTES
• Make sure the antenna conductors do not touch any other terminals, connecting
cords and power cord. Also, keep the antennas away from metallic parts of the
System, connecting cords, and the AC power cord. This could cause poor reception.
• If the cords are covered with vinyl, remove the vinyl to expose the tip of the cord by
twisting the vinyl.
For better FM reception
Outdoor FM antenna
(not supplied)
Disconnect the supplied FM antenna, and connect to an outdoor
FM antenna using a 75 Ω wire with coaxial type connector.
To a wall outlet
Plug the AC power cord only after all connections are complete.
• If the wall outlet does not match the AC plug, use the supplied AC plug adapter
(not applicable for Hong Kong).
CAUTION: Proper Ventilation
To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:
1. Front: No obstructions and open spacing.
2. Sides/Top/Back: No obstructions should be placed in the areas shown by the dimensions below.
3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of
10 cm or more.
Front view
Precautions
Notes on the power cord
• When you are away on travel or otherwise for an extended period of time, remove the plug from the wall outlet. A small
amount of power (2.5 W) is always consumed while the power cord is connected to the wall outlet.
• When unplugging the System from the wall outlet, always pull the plug, not the power cord.
• Do not handle the power cord with wet hands.
• Disconnect the power cord before cleaning the System or moving the System.
• Do not alter, twist or pull the power cord, or put anything heavy on it, which may cause fire, electric shock, or other accidents.
• If the cord is damaged, consult a dealer and have the power cord replaced with a new one.
Avoid moisture, water, dust, and high temperatures
• Do not place the System in moist or dusty places.
• If water gets inside the System, turn off the power and remove the plug from the wall outlet, then consult your dealer. Using
the System in this state may cause a fire or electrical shock.
• Do not expose the System to direct sunlight or place it near a heating device.
Notes on installation
• Select a place which is level, dry and neither too hot nor too cold between 5˚C and 35˚C.
• Do not install the System in a place subject to vibrations.
• Do not put heavy objects on the System.
To prevent malfunction or damage of the System
• Do not insert any metallic objects, such as wires, hairpins, coins, etc. into the System.
• Do not block the vents.
There are no user-serviceable parts inside.
If anything goes wrong, unplug the power cord and consult your dealer.
1
NOTES
• Store the battery in a place where children cannot reach. If a child accidentally swallows the
Insulation sheet
battery, consult a doctor immediately.
• Do not recharge, short, disassemble or heat the battery or dispose of it in a fire. Doing any of
these things may cause the battery to give off heat, crack, or start a fire.
• Do not leave the battery with other metallic materials. Doing this may cause the battery to
give off heat, crack, or start a fire.
• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the
battery may start to give off heat, crack, or start a fire.
• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to
Lithium coin battery
give off heat, crack, or start a fire.
(product number: CR2025)
• Dispose of battery in the proper manner, according to federal, state, and local regulations.
• The batteries (battery pack or batteries installed ) shall not be exposed to excessive heat
source such as sunshine, fire or the like.
CAUTION:
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
To assemble the AM loop antenna
AM loop antenna
(supplied)
Turn it until the best
reception is obtained.
To connect the AM loop antenna
To connect the speaker cords
Make sure the both speakers are connected
correctly and firmly.
• Before connecting the speaker cords, twist and
pull the insulation coat off and remove.
When connecting the speaker cords, match the
polarity of the speaker terminals: black cord with
white stripe to (+) and black cord to (–).
2
Basic and Common Operations
Operating on the System
To
Turn on or off
The STANDBY lamp on the System turns off/on.
(standby) the power
Side view
See "Playing Back a Disc/USB Mass Storage Class
Device" on page 4.
Select a source* 1, 2
See "Listening to FM and AM Broadcasts" on page 5.
See "Listening to Digital Audio Player" on page 6.
You can adjust the volume level from level 0
Adjust the volume
("VOL MIN") to level 31 ("VOL MAX").
Operating on the Remote Control
To
Turn on or off The STANDBY lamp on the System turns
(standby) the power off/on.
See "Playing Back a Disc/USB Mass Storage
Class Device" on page 4.
Select a source* 2
Press repeatedly to select "FM, " "AM, " or "LINE. "
• For "FM/AM, " see "Listening to FM and AM
Broadcasts" on page 5.
• For "LINE, " see "Listening to Digital Audio
Player" on page 6.
You can adjust the volume level from level 0
Adjust the volume
("VOL MIN") to level 31 ("VOL MAX").
Drop the volume in a To restore the volume, press again, or adjust
moment the volume level.
Press and hold until the AHB indicator lights
Reinforce the bass
on the display.
sound (Active Hyper
Bass Pro function)
To cancel this function, press and hold again.
• Once: for the bass level
• Twice: for the treble level
Then, press VOLUME + to increase the level or
Adjust the tone (Bass/
press VOLUME – to decrease it.
Treble)
• You can adjust the bass and/or treble level
from –3 to +3.
Press when the System is turned on.
Changing the display
brightness
To cancel this function, press again.
Playing Back a Disc/USB Mass Storage Class Device
This System can play back...
– CD.
– CD-R/CD-RW recorded in audio CD format (CD-DA) or recorded MP3/
WMA files in ISO 9660 format.
– USB mass storage class device which contains MP3/WMA files.
• When playing back an MP3 or WMA track, MP3 or WMA indicator lights
on the display.
Loading a Disc
1
Press to open the disc tray.
or
2 • When using an 8 cm disc, place it on
the inner circle of the disc tray.
3
or Press to close the disc tray.
Connecting a USB Mass Storage Class Device
You can connect a USB mass storage class device such as a USB flash
FM antenna (supplied)
memory device, MP3 player, multimedia card reader, etc. to the System.
Extend it so that you can obtain the
best reception.
Front view
USB cable (not supplied)
NOTES
• When connecting with a USB cable, use the cable whose length is less
than 1 m.
• USB mass storage class device is charged through the USB MEMORY
terminal when the System is turned on and the source is "USB. "
• You cannot connect a computer to the USB MEMORY terminal of the
System.
• Do not disconnect the USB mass storage class device when the System is
turned on. It may cause malfunction of both this System and the device.
• Noise and static electricity may stop the USB mass storage class device
sound. In this case, disconnect and connect the USB mass storage class
device again after turning off the System.
Turning off the System Automatically
—AUTO STANDBY function
Press and hold until the A.STBY indicator lights on the display.
• The A.STBY indicator starts flashing after playback stops.
If no operation is done for about 3 minutes, the System
turns off.
NOTES
• DO NOT connect more than one
To cancel this function, press and hold again.
speaker to each terminal.
Prohibiting Disc Ejection
• DO NOT allow the conductor of the
You can lock the disc tray so that no one can eject the loaded disc.
speaker cords to be in touch with
• This is possible while the System is on standby and the disc tray is closed.
the metallic parts of the System.
On the System only
Press and hold
To cancel the prohibition, repeat the
same procedure.
Using Headphones
Press
Be sure to turn down the volume before connecting or putting on
the headphones.
• Connecting the headphones will deactivate the speakers.
• Sound adjustments also affect the sound through the headphones.
• Do not put the headphone cord on "touch sensor panel. "
Press
To Press
Press and hold for more than 2 seconds when
the System is on standby.
• Setting the Save mode allows you to reduce
Set the Save mode power consumption by turning the display
off while on standby.
To cancel this function, press and hold for
more than 2 seconds again.
Press briefly.
Changing the display
information (Clock
For setting the clock, see "Setting the Clock
and Source)
and Daily Timer" on page 5.
Press repeatedly to specify the time (in
minutes) as follows (SLEEP indicator lights on
the display):
Turn off the System by
using the sleep timer
Canceled
• To check the remaining time to turn off after
setting the sleep timer, press once.
* 1 You can operate the source selecting buttons on the System by simply touching,
because these buttons are "touch sensor panel. "
* 2 The corresponding source indicator lights on the display (not applicable for "LINE").
NOTE
DO NOT turn off (standby) the System with the volume set to an extremely high level;
otherwise, the sudden blast of sound can damage your hearing, speakers and/or
headphones when you turn on the System or start playback.
3
Basic Disc/USB Mass Storage Class Device Operations
Press
To On the On the
System remote
• Current track number and elapsed playing time appear on the
Play back the disc
main display.
For MP3/WMA files: Before current track number and elapsed
Play back the USB playing time appear, the tag information is scrolled if it is
mass storage recorded.
class device
• During playback, press again to pause.
• While playback is stopped, total track number and total playing
Stop playback time (for MP3/WMA files, group number and track number)
appear on the main display.
Press to select the next tracks.
Select a track
Press to go back to the beginning of the current or previous tracks.
— Press to select the next groups while playback is stopped.
Select a group
(MP3/WMA only)
— Press to select the previous groups while playback is stopped.
Press once or twice to fast-forward the track during playback.
—
To stop searching, press 6.
Forward search/
Reverse search Press once or twice to fast-reverse the track during playback.
—
To stop searching, press 6.
NOTES
• If no disc is inserted, "NO DISC" appears on the main display.
• If no USB mass storage class device is connected, "NO USB" appears on the main display.
• If MP3/WMA files are not recorded in the USB mass storage class device, "NO FILE" appears on the main display.
RESUME Play • Opening the disc tray or disconnecting the USB
When you stop the playback by one of the following mass storage class device also clears the stored
operations, this System stores the beginning of the position.
stopped track on the disc or stores the stopped • When you clear the stored position and start
position of the file on the USB mass storage class playback, playback starts...
device. – For disc: From the beginning of the first track
– Pressing 7 once (The RESUME indicator lights on the
– For USB mass storage class device: From the
display.) beginning of the current file
– Changing the source If you disconnect the USB mass storage class
– Turning off the System device, connect it again, and start playback,
playback starts from the beginning of the first file.
When you start playback again, playback starts from
the stored position. NOTE
This function does not work in program play and
To clear the stored position, press 7 while playback
random play (see the right tables).
is stopped.
Playing Repeatedly—Repeat Play
1 Press repeatedly before you start playback to specify the repeat mode
as follows:
REP 1 Repeats the current (or specified) track.
Repeats all tracks in the current group (MP3/
REP GRP
WMA only).
ALL REP ALL Repeats all tracks.
REP OFF Normal playback
2
or
4
Stereo mini plug cord
PHONES jack
STANDBY lamp
Point at the remote sensor on the front panel.
(The operating range is approx. 7 m.)
NOTICE
• Do not put objects such as the
headphone cord on "touch sensor panel. "
• Do not put a fluorescent light near the
System; otherwise, "touch sensor panel"
may not work correctly.
Display Information
Source indicators (See the left table.)
AHB indicator (See the left table.)
RESUME indicator (See page 4.)
FM reception
File type indicators (See page 4.)
indicators
Source indicators (See the left table.)
(See page 5.)
Main Display
QPL indicator
A.STBY (Auto Standby) indicator (See page 4.)
(See page 6.)
SLEEP indicator (See the left table.)
Play mode indicators (See page 4.) Timer mode indicators (See page 5.)
Programming the Playing Order—
Program Play (not Applicable for MP3/
WMA Discs)
1 Press repeatedly until the PRGM
(program) indicator lights on the
display before playback.
2
or Select a track number to program.
3 Press to program the selected
track.
4 Repeat steps 2 and 3 to program other tracks you want.
• If you try to program a 33rd track, "FULL" will appear on
the main display.
5
The tracks are played back in the
or
programmed order.
To Operate on the Program Play Mode
To Press
Check the
programmed Press while playback is stopped.
or
contents
Repeat steps 2 and 3 above while playback
Add tracks
is stopped.
Press while playback is stopped.
Erase the last
• The track and program
track
numbers of the new last track
appear on the main display.
Erase the
entire Press while playback is stopped.
program
Press twice while playback is
Exit from
stopped.
program play
• The stored program is erased.
Playing at Random—Random Play
1 Press repeatedly until the RND
(random) indicator lights on the
display before you start playback.
2 Playback starts in random order.
or Random Play ends when all
tracks are played back.
To Operate on the Random Play Mode
To Press
• 4 does not work.
Skip a track
Exit from Press once while playback is
random play stopped.
