E-Mu MORPHEUS Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

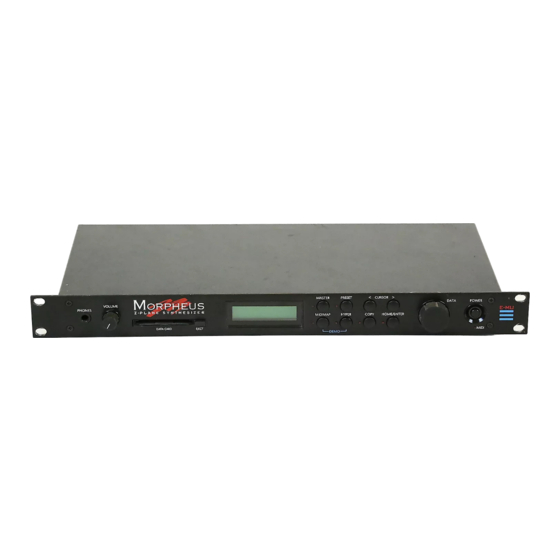

MORPHEUS
Operation Manual
© 1993 E-mu Systems, Inc.
All Rights Reserved
• FI420 Rev. C
Manual - Riley Smith
E-mu World Headquarters
E-mu Systems, Inc. U.S.A.
P.O. Box 660015
Scotts Valley, CA USA
95067–0015
Telephone: 831-438-1921
Fax: 831-438-8612
Important Notice:
In order to obtain warranty service on your Morpheus unit, the serial number sticker must
be intact and you must have a sales receipt or other proof of purchase. If there is no serial
number sticker on Morpheus, please contact E-mu Systems at once.
This product is covered under one or more of the following U. S. patents: 3,969,682;
3,986,423; 4,404,529; 4,506,579; 4,699,038; 4,987,600; 5,013,105; 5,072,645;
5,111,727 and foreign patents and/or pending patents. Morpheus is a registered trade-
mark of E-mu Systems, Inc.
Europe, Africa, Middle East
E-mu Systems, Ltd.
Suite 6, Adam Ferguson
House
Eskmills Industrial Park
Musselburgh, East Lothian
Scotland, EH21 7PQ
Telephone: 44-31-653-6556
Fax: 44-31-665-0473
PRINTED AND MADE IN THE USA
