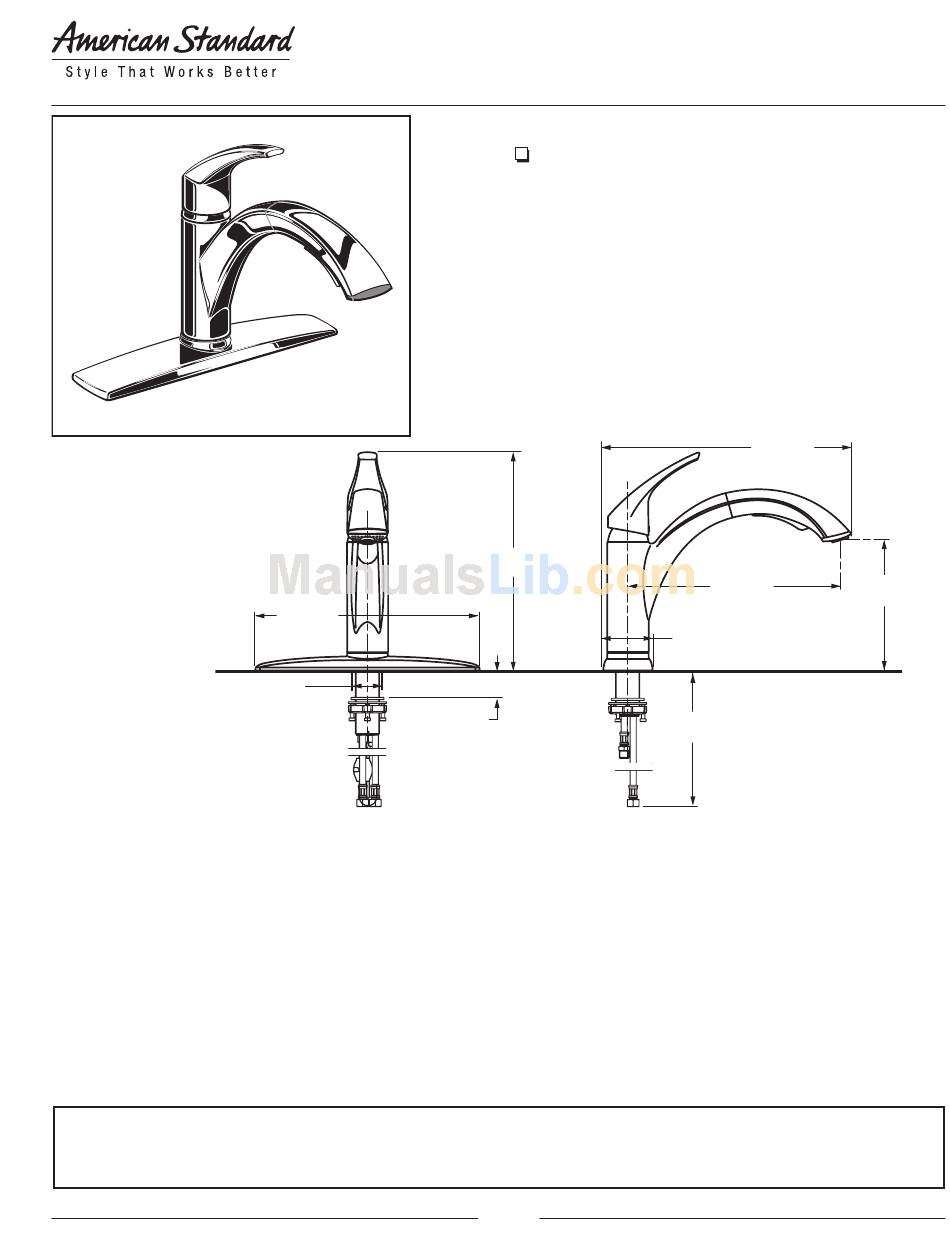

American Standard Arch 4101.001 Specifications

35 to 38mm
(1-3/8 to 1-1/2)
DIA. MOUNTING HOLE

GENERAL DESCRIPTION:

Metal swivel spout. Metal escutcheon plate and metal lever
handle. Pull-out spray with adjustable spray pattern and
toggle button activation. Hose is (1250mm (48") long.
Washerless 40mm ceramic disc valve cartridge. Braided
flexible supply hoses with 3/8" compression connections.
Brass mounting shank with brass fixation ring. 2.2
gpm/8.3L/min. maximum flow rate. Can be mounted with or
without supplied escutcheon plate (escutcheon size 10-5/16"L
x 2-5/16"W).
SUGGESTED SPECIFICATION:
Single control kitchen faucet shall feature swivel pull-out spray with toggle button activation, metal escutcheon plate and metal
lever handle. Shall also feature washerless ceramic disc valve cartridge, flexible hose supplies and two integral check valves.
Fitting shall be American Standard Model # 4101.001.___ .
© 2008 AS America Inc.
261.4mm
(10-5/16 )
53.8mm
(2-3/16)
SINGLE CONTROL KITCHEN FAUCET
MODEL NUMBER:
4101.100 Kitchen Faucet with Pull-out Spray Spout
Escutcheon plate (installation is optional).
253.7mm
(10 )

PRODUCT FEATURES:

Ceramic Disc Valve Cartridge:
valve control and a lifetime of drip-free, maintenance-free
performance.
Memory Position Valving:
off at preferred temperature setting without readjusting handle
position each time.
Low Lead:
Meets NSF Standard 61/Section 9 & Prop 65 lead
requirements.
Integral Check Valves:
Pull-out Spray:
With toggle button activation. Switches water
flow from stream to spray.
Choice of Finishes:
Stainless Steel (PVD) finishes.
A21
ARCH™
WITH PULL-OUT SPRAY
287.5mm
(11-5/16)
242.4mm
(9-9/16)
58.2mm
(2-5/16)
533mm
(21)
Assures smooth, precise
Allows user to turn valve on and
Prevents back flow.
Available in Polished Chrome or
149.4mm
(5-7/8)
