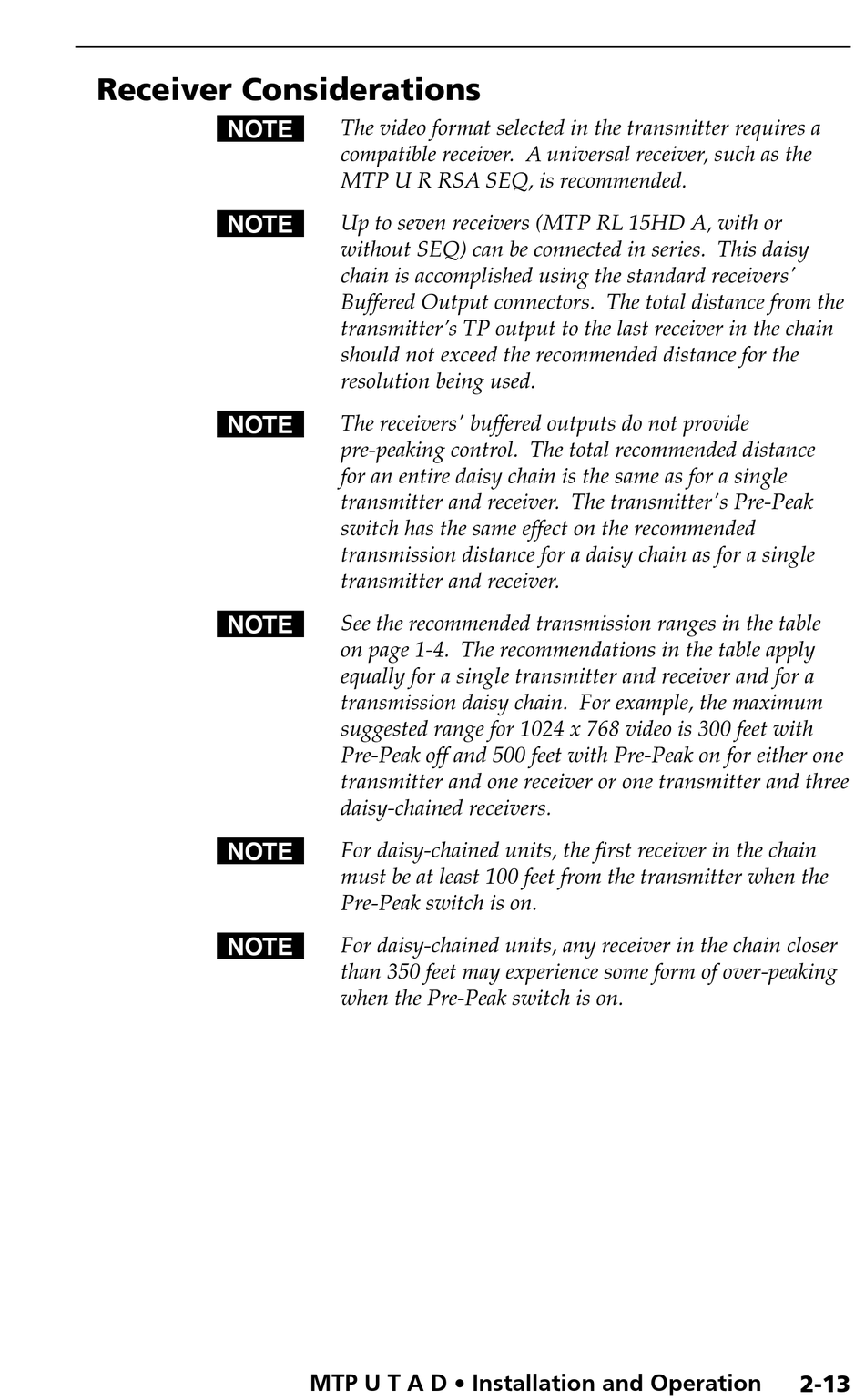

Receiver Considerations

N
N
N
N
N
N
The video format selected in the transmitter requires a
compatible receiver. A universal receiver, such as the
MTP U R RSA SEQ, is recommended.
Up to seven receivers (MTP RL 15HD A, with or
without SEQ) can be connected in series. This daisy
chain is accomplished using the standard receivers'
Buffered Output connectors. The total distance from the
transmitter's TP output to the last receiver in the chain
should not exceed the recommended distance for the
resolution being used.
The receivers' buffered outputs do not provide
pre-peaking control. The total recommended distance
for an entire daisy chain is the same as for a single
transmitter and receiver. The transmitter's Pre-Peak
switch has the same effect on the recommended
transmission distance for a daisy chain as for a single
transmitter and receiver.
See the recommended transmission ranges in the table
on page 1-4. The recommendations in the table apply
equally for a single transmitter and receiver and for a
transmission daisy chain. For example, the maximum
suggested range for 1024 x 768 video is 300 feet with
Pre-Peak off and 500 feet with Pre-Peak on for either one
transmitter and one receiver or one transmitter and three
daisy-chained receivers.
For daisy-chained units, the first receiver in the chain
must be at least 100 feet from the transmitter when the
Pre-Peak switch is on.
For daisy-chained units, any receiver in the chain closer
than 350 feet may experience some form of over-peaking
when the Pre-Peak switch is on.
MTP U T A D • Installation and Operation 2-13
