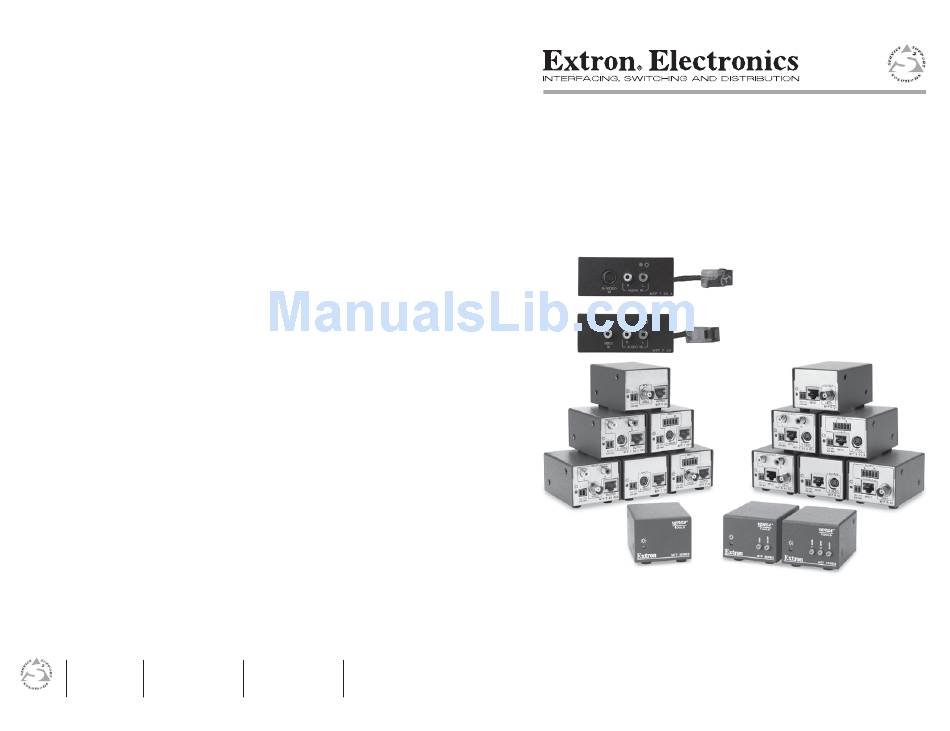

Extron electronics VERSATOOLS MTP User Manual

Extron electronics VERSATOOLS MTP User Manual

Versatools mtp series video and audio mini twisted pair transmitters and receivers
Hide thumbs Also See for VERSATOOLS MTP:

Advertisement

Quick Links

Extron Electronics, USA
Extron Electronics, Europe
1230 South Lewis Street
Beeldschermweg 6C
Anaheim, CA 92805
3821 AH Amersfoort, The Netherlands
800.633.9876 714.491.1500
+800.3987.6673 +31.33.453.4040
FAX 714.491.1517
FAX +31.33.453.4050
www.extron.com
© 2007 Extron Electronics. All rights reserved.
Extron Electronics, Asia
Extron Electronics, Japan
135 Joo Seng Rd. #04-01
Kyodo Building, 16 Ichibancho
PM Industrial Bldg., Singapore 368363
Chiyoda-ku, Tokyo 102-0082
+800.7339.8766 +65.6383.4400
Japan
FAX +65.6383.4664
+81.3.3511.7655 FAX +81.3.3511.7656
User's Guide
VersaTools
Video and Audio Mini Twisted Pair Transmitters and Receivers
®

MTP Series

68-732-01 Rev. F
08 07

Advertisement

Table of Contents
loading

Summary of Contents for Extron electronics VERSATOOLS MTP

  • Page 1: Mtp Series

    Extron Electronics, USA Extron Electronics, Europe Extron Electronics, Asia 1230 South Lewis Street Beeldschermweg 6C 135 Joo Seng Rd. #04-01 Anaheim, CA 92805 3821 AH Amersfoort, The Netherlands PM Industrial Bldg., Singapore 368363 800.633.9876 714.491.1500 +800.3987.6673 +31.33.453.4040 +800.7339.8766 +65.6383.4400 FAX 714.491.1517 FAX +31.33.453.4050 FAX +65.6383.4664 www.extron.com...
  • Page 2 Precautions Safety Instructions • English Warning This symbol is intended to alert the user of important Power sources • This equipment should be operated only from the power source indicated on the product. This equipment is intended to be used with a main operating and maintenance (servicing) instructions power system with a grounded (neutral) conductor.
  • Page 3 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4: Table Of Contents

    Table of Contents Chapter 1 • Introduction ... 1-1 About the MTP Transmitters and Receivers TP Cable Advantages ... 1-2 Transmission Distance ... 1-2 Chapter 2 • Installation ... 2-1 Signal Jumpers for Generational Compatibility Setting the jumpers on non AAP models ... 2-2 Setting the jumpers on AAP transmitters ...
  • Page 5: Chapter 1 • Introduction

    Table of Contents, cont’d VersaTools ® MTP Series Chapter One Introduction About the MTP Transmitters and Receivers TP Cable Advantages Transmission Distance All trademarks mentioned in this manual are the properties of their respective owners. 68-732-01 Rev. F 08 07 VersaTools ®...
  • Page 6: About The Mtp Transmitters And Receivers

    Introduction About the MTP Transmitters and Receivers The Extron MTP transmitters and receivers provide a system for long-distance distribution of NTSC, PAL, or SECAM video and audio over Extron’s Enhanced Skew-Free over Category (CAT) 5 shielded twisted pair (STP), unshielded twisted pair (UTP), or foil shielded twisted pair (FTP) cable.
  • Page 7: Chapter 2 • Installation

    Introduction, cont’d • The video portion of any S-video transmitter’s output is compatible with any S-video receiver in the MTP family described in this manual if the transmitter and receiver jumper configuration are compatible. See “Signal Jumpers for Generational Compatibility”, in chapter 2, “Installation”. •...
  • Page 8: Signal Jumpers For Generational Compatibility

    Installation CAUTION Installation and service must be performed by authorized personnel only. Signal Jumpers for Generational Compatibility Over time, the MTPs have been redesigned, affecting the signal content of the TP cable wire pairs, changing the audio from stereo to mono, and eliminating the remote power capability. The new-generation units are not compatible with the old generation unless an internal jumper in the new unit is shifted.
  • Page 9 Installation, cont’d Locate the jumper blocks (figure 2-3) on the video board. Shift the jumper to the alternate location. Mono (default jumper position) Compatible with new model transmitter/receivers. Cannot remotely power transmitter/receiver Transmitter Front Panel Transmitter Rear Panel Stereo Compatible with old model transmitter/receivers. Can remotely power transmitter/receiver.
  • Page 10: Setting The Jumpers On Aap Transmitters

    Installation, cont’d Setting the jumpers on AAP transmitters Remove and retain the two screws that secure the back cover to the MTP (figure 2-5). 2. Carefully pull RJ-45 connector through this hole. 1. Remove these screws. Figure 2-5 — Removing the MTP cover Pull the cover out of the way, carefully twisting the RJ-45 connector as necessary to slide it through the hole in the cover marked “Output”.
  • Page 11: Mounting Options

    Installation, cont’d Mounting Options Tabletop use (all except AAP models) The non-AAP MTPs come with self-adhesive rubber feet attached to the four corners of the bottom. Set the MTP on a horizontal surface. Rack mounting (all except AAP models) For optional rack mounting, mount the MTP on any of the following rack shelves: ®...
  • Page 12: Rack Mounting Instructions

    Installation, cont’d Rack mounting instructions On the standard rack shelf, the MTP mounts in one of eight locations to the rear of the rack or in one of eight locations to the front of the rack. Remove the feet from the bottom of the MTP, if installed. Mount the MTP using two 4-40 x 3/16"...
  • Page 13: Panel Features And Connections

    Installation, cont’d Cable the rear of the transmitter before fastening the AAP module to the AAP frame. Insert each of the AAP module’s screws through the holes in the AAP frame. Secure the transmitter to the frame with the provided captive washers and #4-40 nuts. Install the AAP frame as appropriate to the type of frame.
  • Page 14: Transmitter/Receiver Throughput Connections

    Installation, cont’d When making connections for the MTP from existing audio cables, see figure 2-14 to identify the tip, ring, and sleeve wires in various connectors. A mono audio connector consists of the tip and sleeve. A stereo audio connector consists of the tip, ring and sleeve. The ring, tip, and sleeve wires are also shown on the captive screw audio connector diagrams, figure 2-13 and figure 2-21.
  • Page 15: Tp Cable Termination

    Installation, cont’d TP cable termination Figure 2-17 details the recommended termination of TP cables with RJ-45 connectors in accordance with the TIA/EIA T 568A or TIA/EIA T 568B wiring standards. You can use either standard, but ensure that you use the same standard on both cable ends.
  • Page 16: Receiver Output Connections

    Installation, cont’d If the transmitter and receiver are either older generation units or jumper configured to the stereo audio position (compatible with the older units), only a single device needs to be powered in a two-unit system. See “Signal Jumpers for Generational Compatibility” on page 2-2. The device connected to the power supply, in turn, provides power to its counterpart.
  • Page 17: Chapter 3 • Operation

    Installation, cont’d Captive screw audio connector (MTP R SV A, MTP R AV) — Connect a balanced or unbalanced audio device, such as an audio amplifier to this 3.5 mm, 5-pole captive screw connector. See figure 2-21 to properly wire the output connector. NO GROUND HERE.

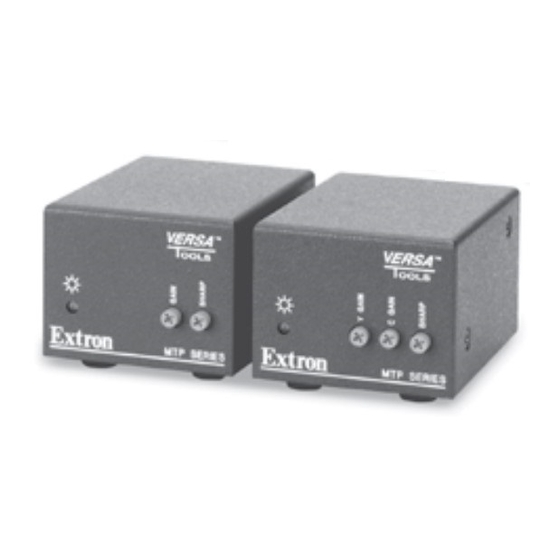

  • Page 18: Front Panel Features

    S-video transmitter/receiver pairs. Try using the following methods to minimize or eliminate pair skew: • Switch to Extron’s Enhanced Skew-Free A/V UTP cable. • Add an S-video-to-BNC adapter and a skew compensation cable equal to the length of pair skew to the receiver’s output.
  • Page 19: Specifications

    Specifications, Part Numbers, and Accessories Specifications Video Gain ... Unity Differential phase error ... <1.0º at 3.58 MHz and 4.43 MHz Differential gain error ... <1.0% at 3.58 MHz and 4.43 MHz Video input Number/signal type MTP T CV/AV Series ... 1 composite video MTP T SV Series ...
  • Page 20 Specifications, Part Numbers, Accessories, cont’d Audio output — audio models (A, AV, SVA models) only Number/signal type MTP T Series (all models) 1 set of proprietary analog signals MTP R AV, MTP R SV A 1 stereo or dual mono, balanced/ unbalanced MTP R AV/SV A RCA ...
  • Page 21: Part Numbers

    Specifications, Part Numbers, Accessories, cont’d Part Numbers MTP transmitters Description Part number to reorder MTP T SV MTP T SV A MTP T SV A RCA MTP T SV A AAP (black, white) MTP T CV MTP T AV MTP T AV RCA MTP T AV AAP (black, white) MTP receivers Description...
  • Page 22 Specifications, Part Numbers, Accessories, cont’d VersaTools ® MTP Series • Reference Information...
