INSTALLATION
AND
SERVICE
MUST
BE PERFORMED
BY A QUALIFIED
INSTALLER.
IMPORTANT:
SAVE FOR LOCAL
ELECTRICAL
INSPECTOR'S
USE.
READ
AND
SAVE
THESE INSTRUCTIONS
FOR FUTURE
REFERENCE.
FOR YOUR SAFETY: Do not store or
use
gasoline or other flammable vapors and
liquids
in
the
vicinity
of this or any other
appliance.
The first step of your installation
should
be to measure
your current
cutout
dimensions
and compare
them
to the cutout
dimensions
chart below,
You may find little or no cabinet
work
will be necessary.
_Do
not remove spacers on the side walls and/or on the back of the built*in oven. These spacers
center the oven in the space provided.
The oven must be centered to prevent excess heat buildup that may result
in heat damage or fire.
NOTE:
1. Base must
be capable
of supporting
400 pounds
Suggested distance from floor is 11Y2"
(29.2 cm).
Minimum
required distance is 4Y2'r
(11.4 cm).
_'3" (76
cm) Max
Electrical
Junction
Box

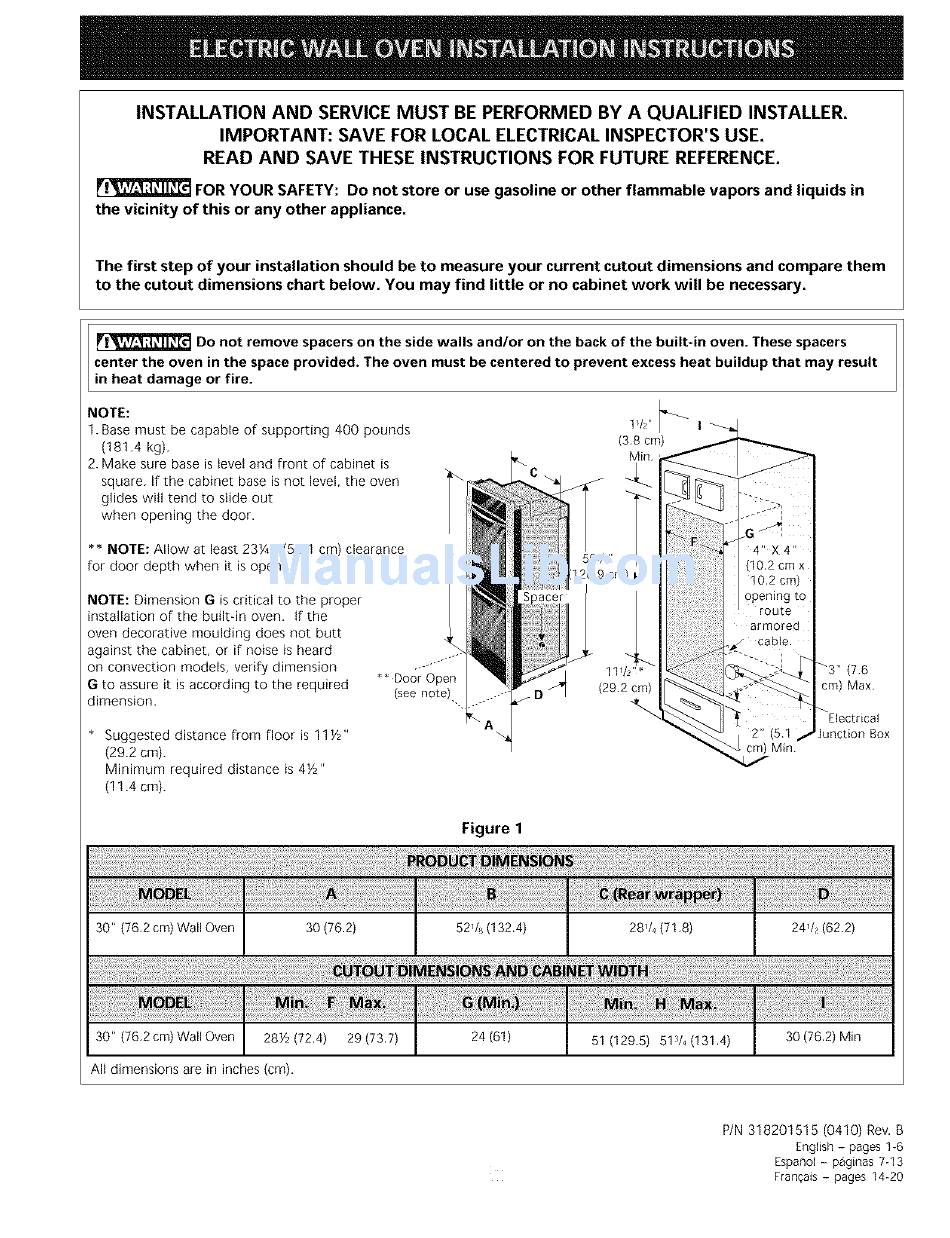

Figure 1
30" (76,2 cm) Wall Oven
30 (76.2)
52_/_ (132,4)
28_/4 (7I ,8)
24_/2 (62.2)
30" (76,2 cm) Wall Oven
28Y2 (72,4)
29 (73.7)
All dimensions
are in inches (cm),
24 (61)
51 (129.5)
51s/4 (131,4)
30 (76,2) Min
P/N 318201515
(0410)
Rev. B
English - pages 1-6
Espailol -- paginas 7-13
Franqais - pages 14-20
