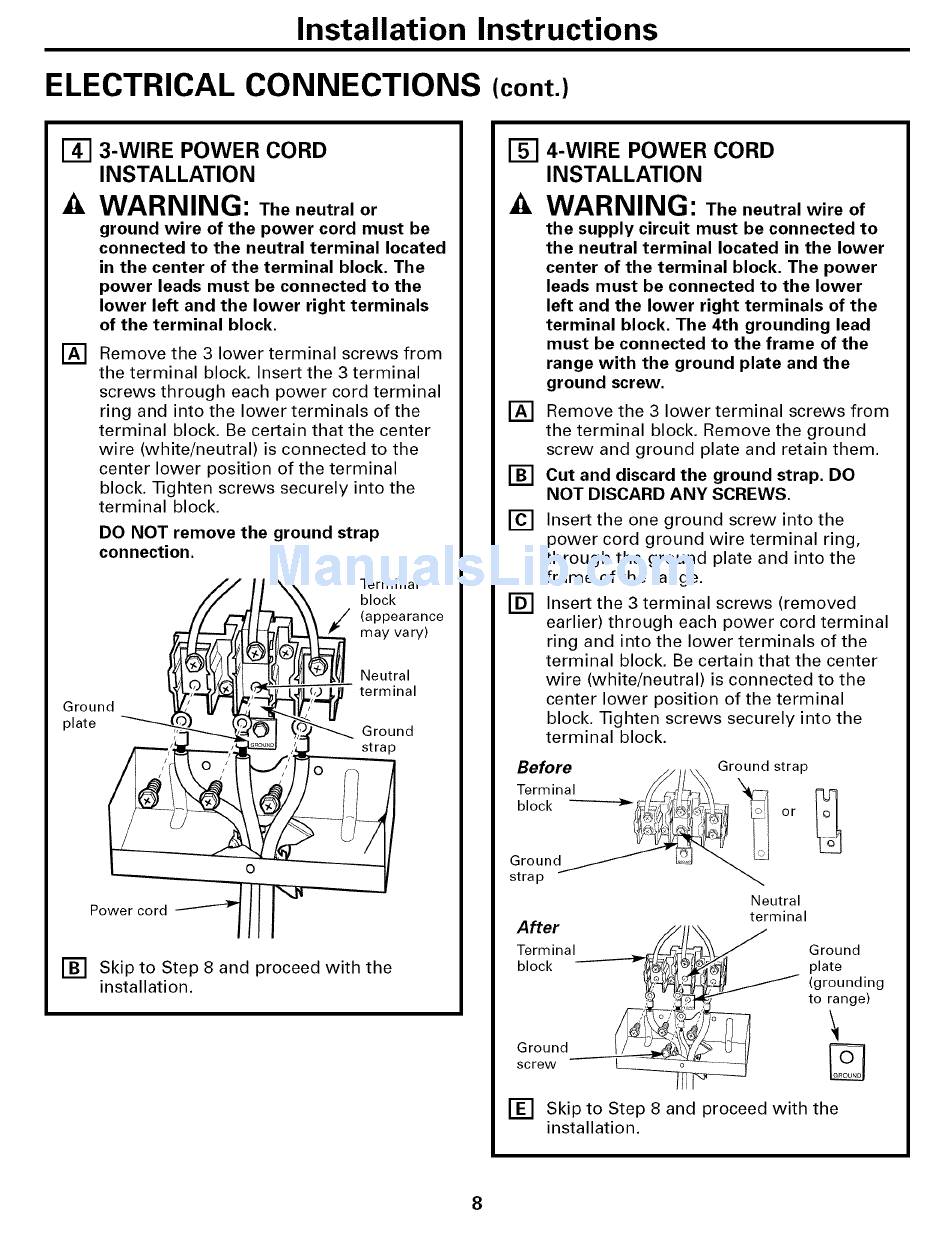

Installation Instructions
ELECTRICAL CONNECTIONS
(cont.)
[]
Ground
plate
3-WIRE POWER CORD
INSTALLATION
WARNING: The neutral
or
ground wire of the power cord must be
connected to the neutral terminal located
in the center of the terminal block. The
power leads must be connected to the
lower left and the lower right terminals
of the terminal block.
Remove the 3 lower terminal screws from
the terminal block. Insert the 3 terminal
screws through each power cord terminal
ring and into the lower terminals of the
terminal block. Be certain that the center
wire (white/neutral) is connected to the
center lower position of the terminal
block. Tighten screws securely into the
terminal block.
DO NOT remove the ground strap
connection.
Terminal
block
(appearance
may vary)
Neutral
terminal
Ground
strap
Power cord
[] Skip to Step 8 and proceed with the
installation.
[] 4-WIRE POWER CORD
INSTALLATION
-& WARNING:
The neutral wire of
the supply circuit must be connected to
the neutral terminal located in the lower
center of the terminal block. The power
leads must be connected to the lower
left and the lower right terminals of the
terminal block. The 4th grounding lead
must be connected to the frame of the
range with the ground plate and the
ground screw.
[] Remove the 3 lower terminal screws from
the terminal block. Remove the ground
screw and ground plate and retain them.
[] Cut and discard the ground strap. DO
NOT DISCARD ANY SCREWS.
[] Insert the one ground screw into the
power cord ground wire terminal ring,
through the ground plate and into the
frame of the range.
[] Insert the 3 terminal screws (removed
earlier) through each power cord terminal
ring and into the lower terminals of the
terminal block. Be certain that the center
wire (white/neutral) is connected to the
center lower position of the terminal
block. Tighten screws securely into the
terminal block.
Before
////\\
Ground strap
Terminal // _h_;\\ "_--I l_In
b ock "-'--'--"-_:LT,_'_-_,IIIM_-_ _-L
[_@_i_J@_s_J,I_Au_'_ l__I or
Groun_ [_1
strap -
Neutral
terminal
After
Terminal _._//_/_ _.._ Ground
block __ _/._._ plate.
(grounding
to range)
Ground__
screw
__tf_ _
[] Skip to Step 8 and proceed with the
installation.
8
