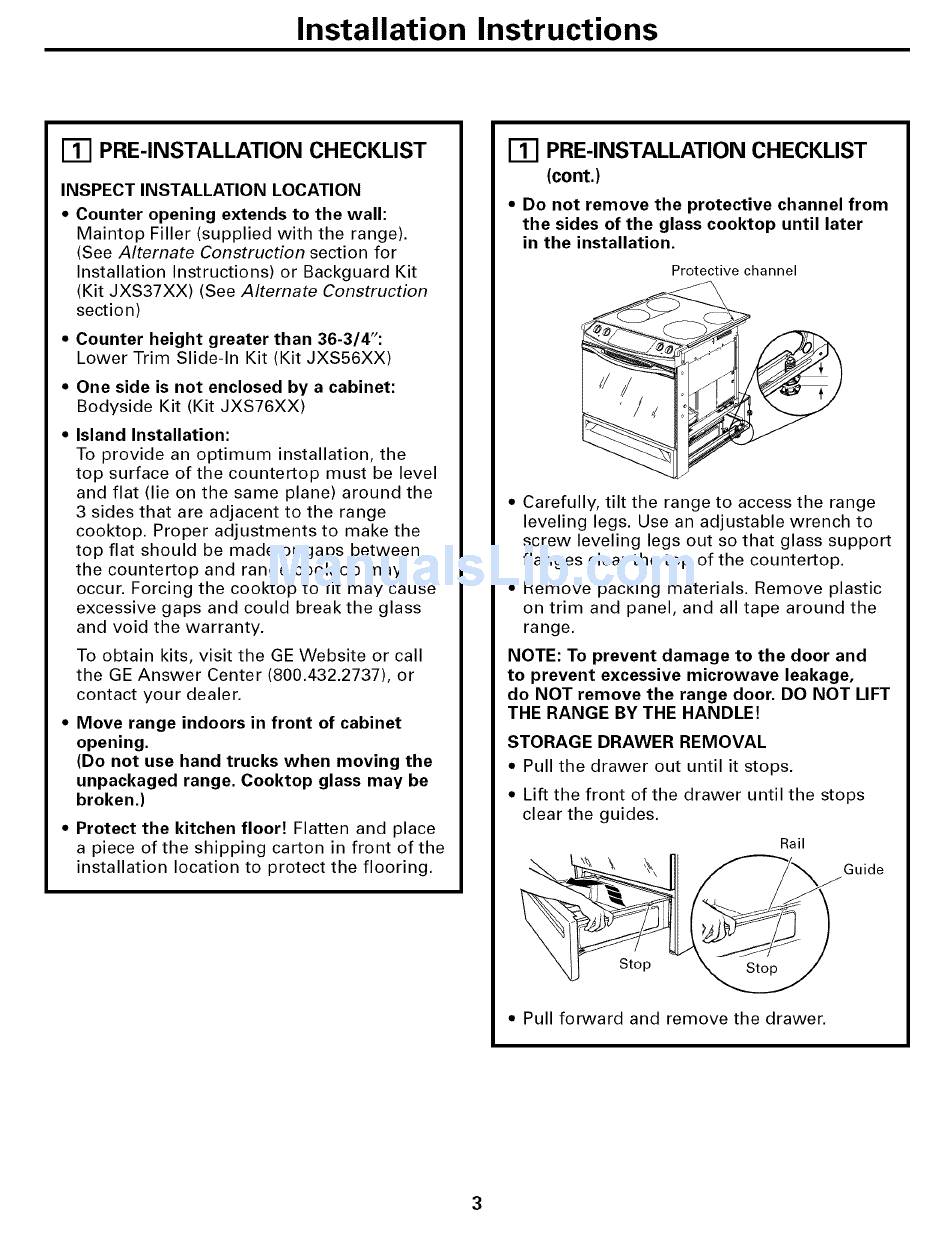

Installation Instructions
PRE-INSTALLATION CHECKLIST
INSPECT INSTALLATION LOCATION
• Counter opening extends to the wall:
Maintop Filler (supplied with the range).
(See Alternate Construction section for
Installation Instructions) or Backguard Kit
(Kit JXS37XX) (See Alternate Construction
section)
• Counter height greater than 36-3/4":
Lower Trim Slide-In Kit (Kit JXS56XX)
• One side is not enclosed by a cabinet:
Bodyside Kit (Kit JXS76XX)
• Island Installation:
To provide an optimum installation, the
top surface of the countertop must be level
and flat (lie on the same plane) around the
3 sides that are adjacent to the range
cooktop. Proper adjustments to make the
top flat should be made or gaps between
the countertop and range cooktop may
occur. Forcing the cooktop to fit may cause
excessive gaps and could break the glass
and void the warranty.
To obtain kits, visit the GE Website or call
the GE Answer Center (800.432.2737), or
contact your dealer.
• Move range indoors in front of cabinet
opening.
(Do not use hand trucks when moving the
unpackaged range. Cooktop glass may be
broken.)
• Protect the kitchen floor! Flatten and place
a piece of the shipping carton in front of the
installation location to protect the flooring.
_-I PRE-INSTALLATION CHECKLIST
(cont.)
• Do not remove the protective channel from
the sides of the glass cooktop until later
in the installation.
Protective channel
• Carefully, tilt the range to access the range
leveling legs. Use an adjustable wrench to
screw leveling legs out so that glass support
flanges clear the top of the countertop.
• Remove packing materials. Remove plastic
on trim and panel, and all tape around the
range.
NOTE: To prevent damage to the door and
to prevent excessive microwave leakage,
do NOT remove the range door. DO NOT LIFT
THE RANGE BY THE HANDLE!
STORAGE DRAWER REMOVAL
• Pull the drawer out until it stops.
• Lift the front of the drawer until the stops
clear the guides.
Rail
Stop
Guide
• Pull forward and remove the drawer.
3
